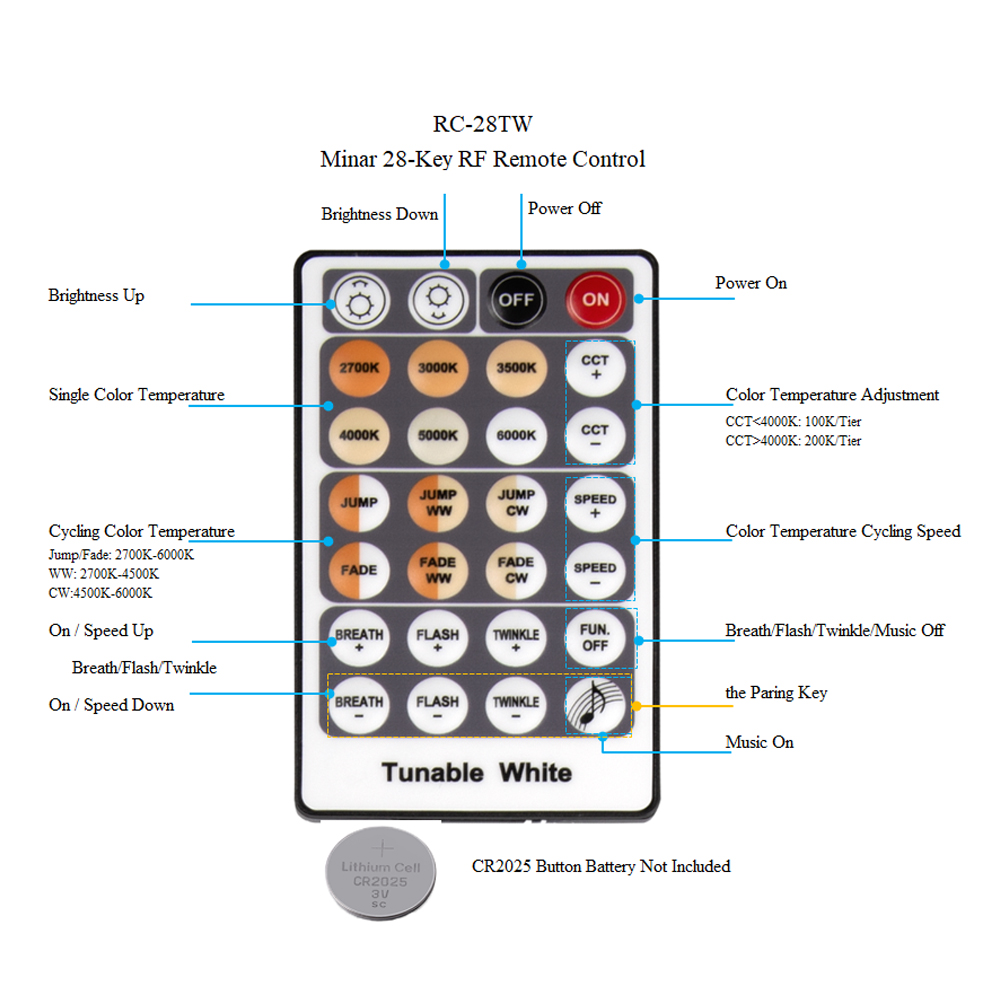

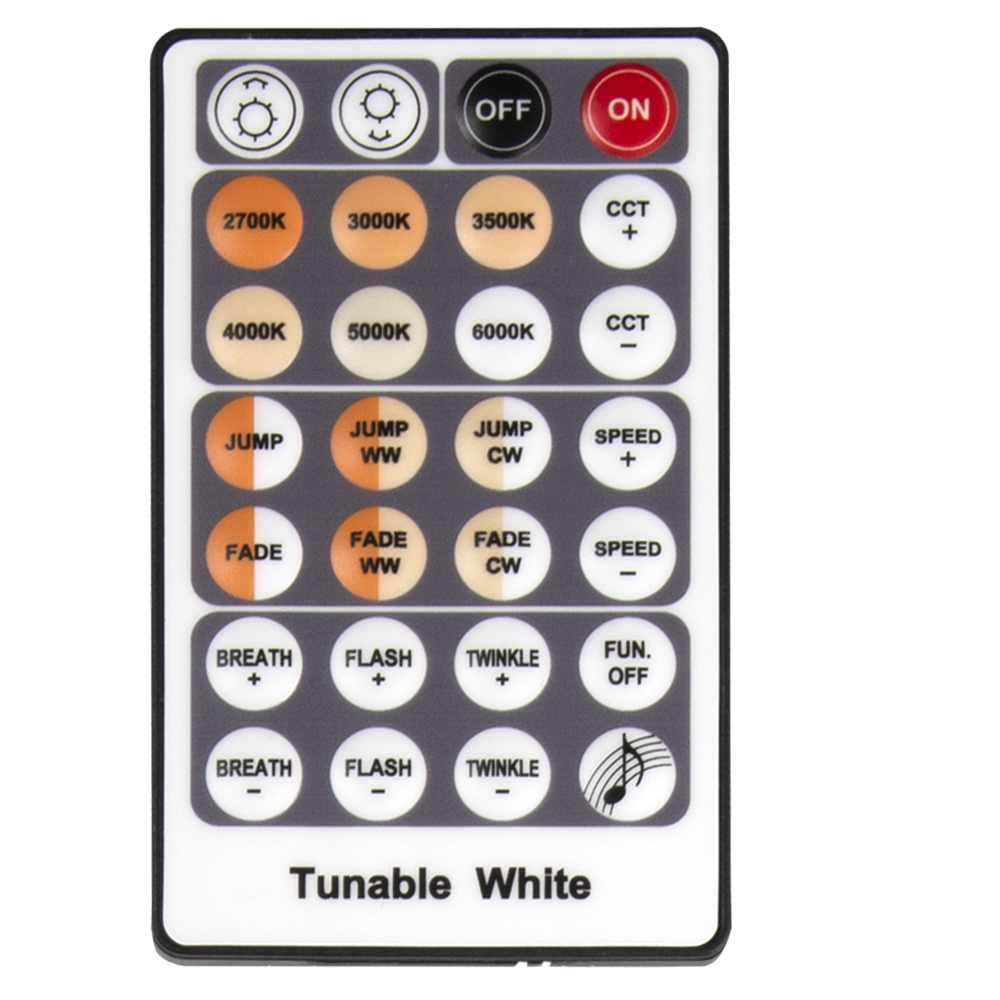

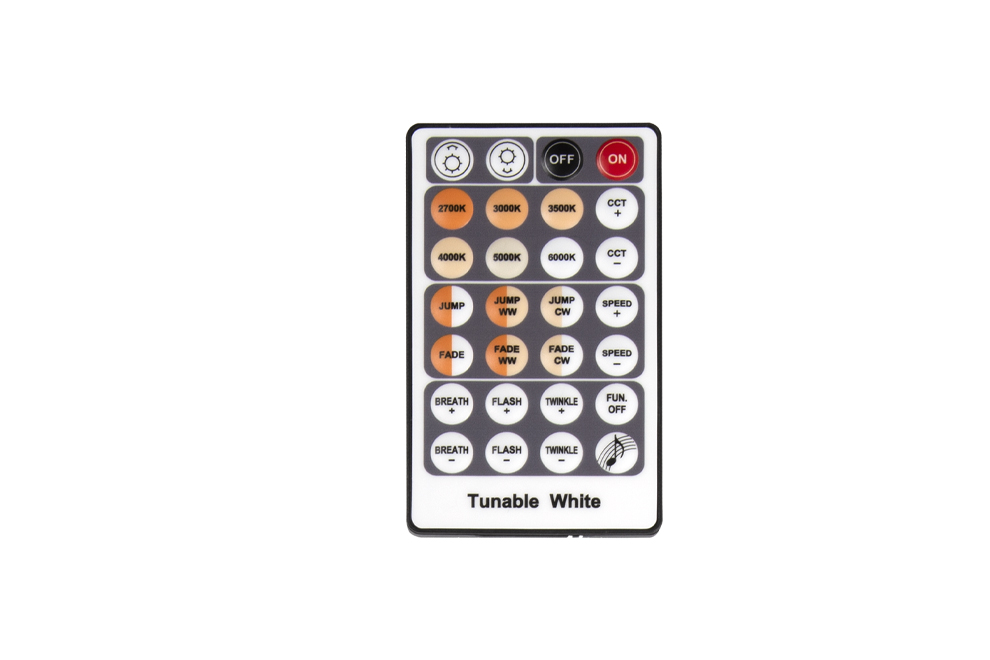

Specification:
| Item Number | Number of Buttons | Type | Frequency | Battery | Dimensions | Net Weight |
| RC-28TW | 28 | RF | 433MHz | CR2025, 1pc | L85XW52XH7mm | 20g |
Control Distance: 15 meters in an open area
Adjustable Color Temperatur---CCT

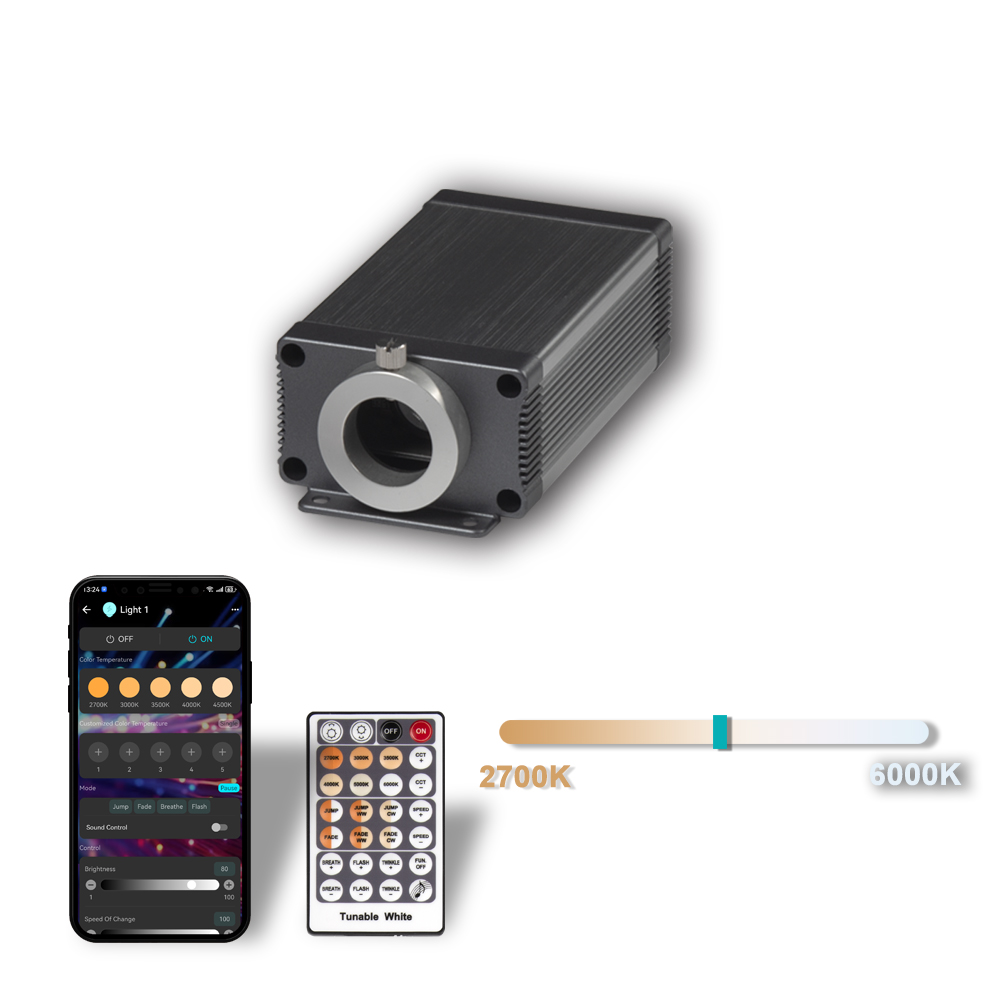

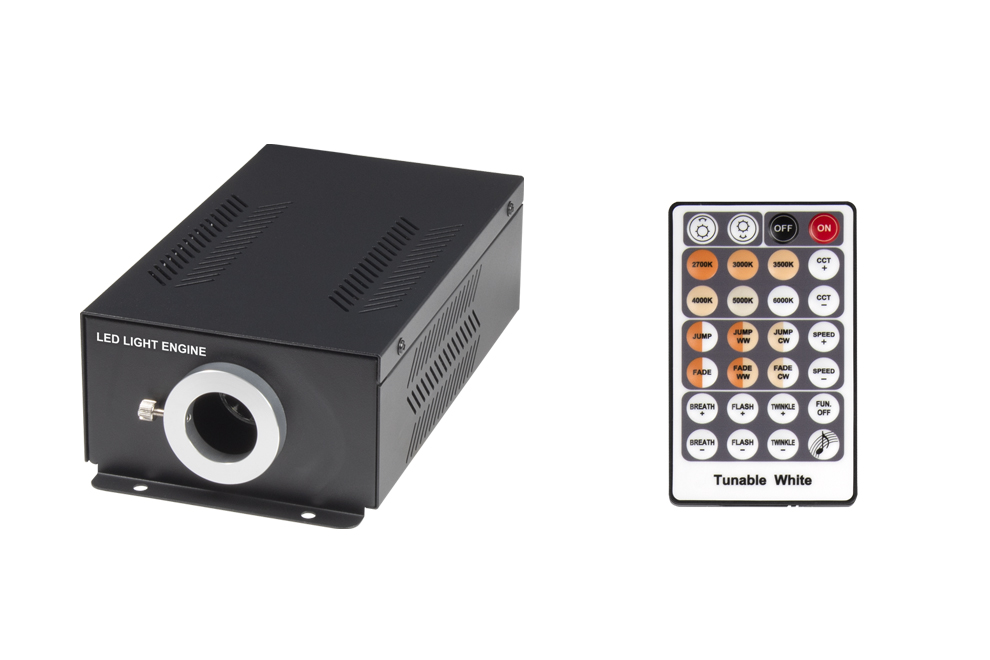

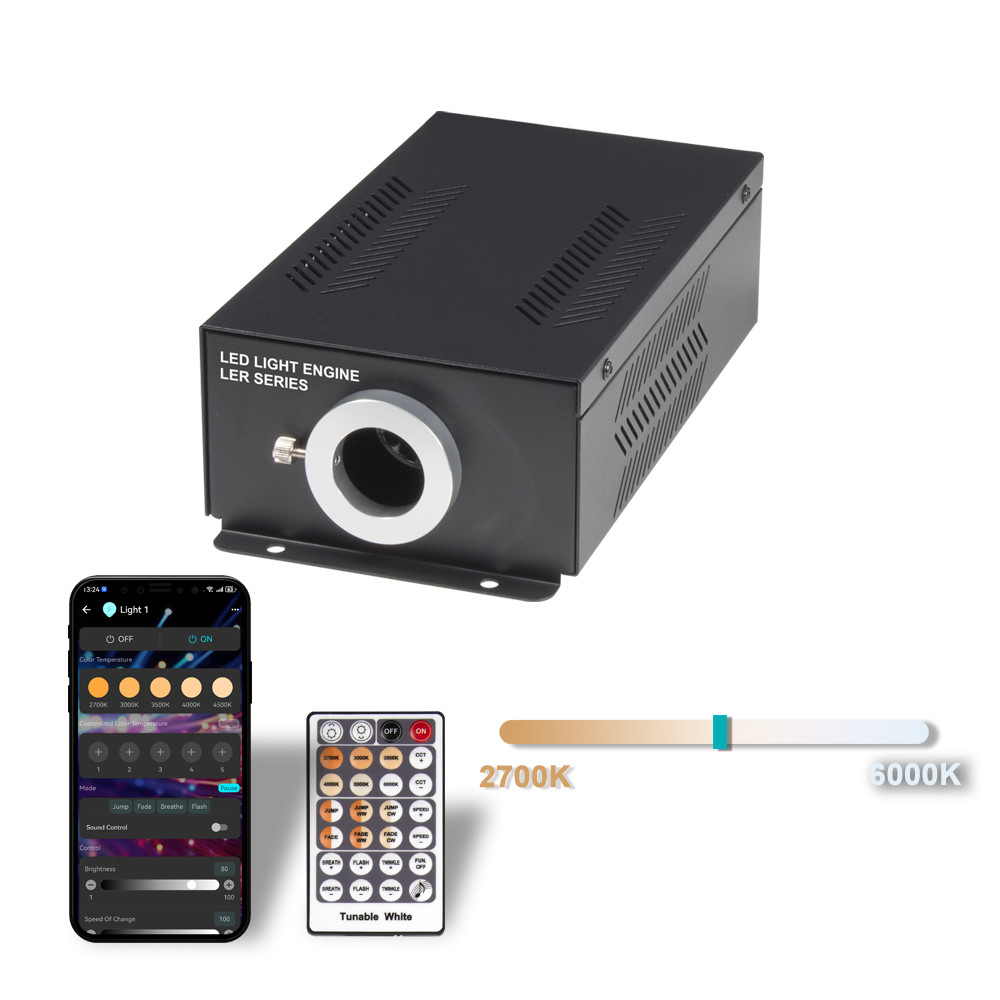

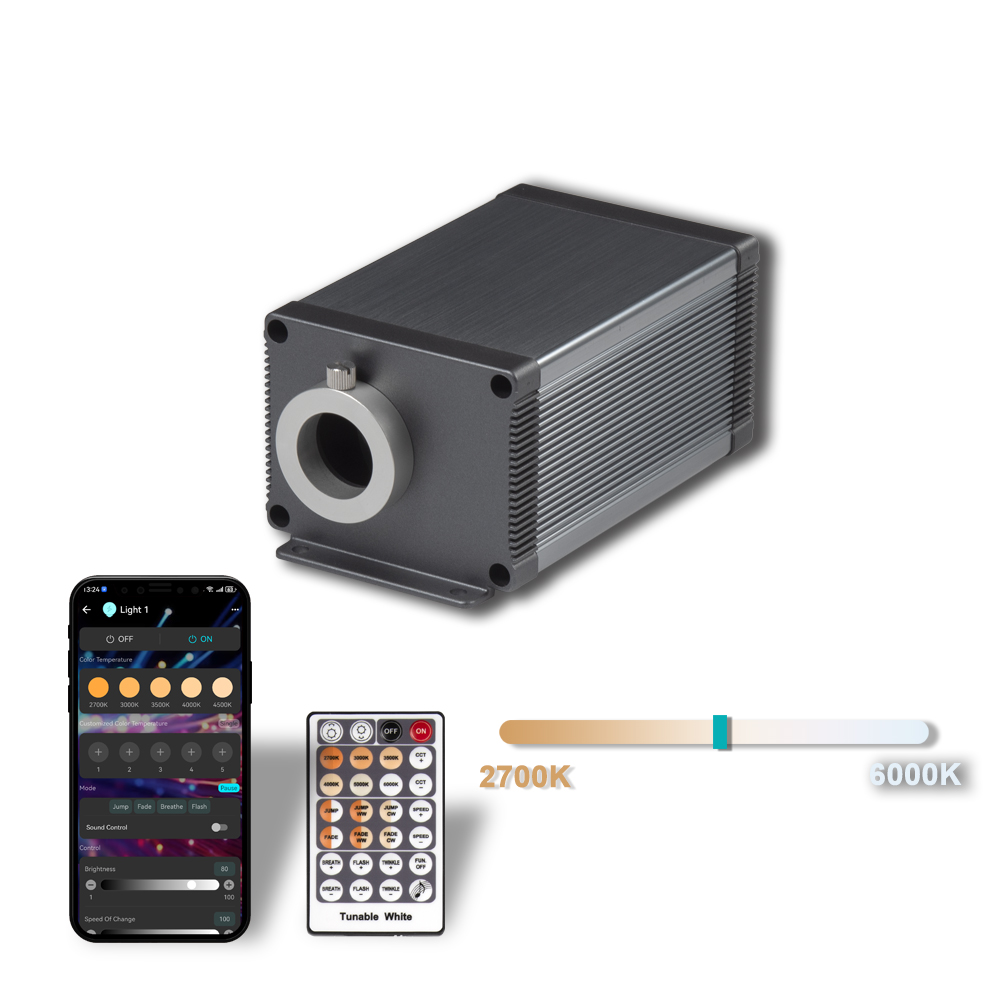

At present, this remote control is used for three CCT light engines: LER-3001TWDMX, LLE-003TW, and LLE-004TW.
The color temperature adjustable range:
LER-3001TWDMX: 2700K~6000K;
LLE-003TW: 3000K~6000K;
LLE-004TW: 3000K~6000K
Remote Control Matching
The 28-key remote control needs to match the light engine before use. By default, the remote control has already been matched with the light engine before shipment. You can also re-match the remote control with the light engine to have one-to-one, one-to-many, and many-to-one control. For details, please read the User Manual of the light engine or check with the sales.

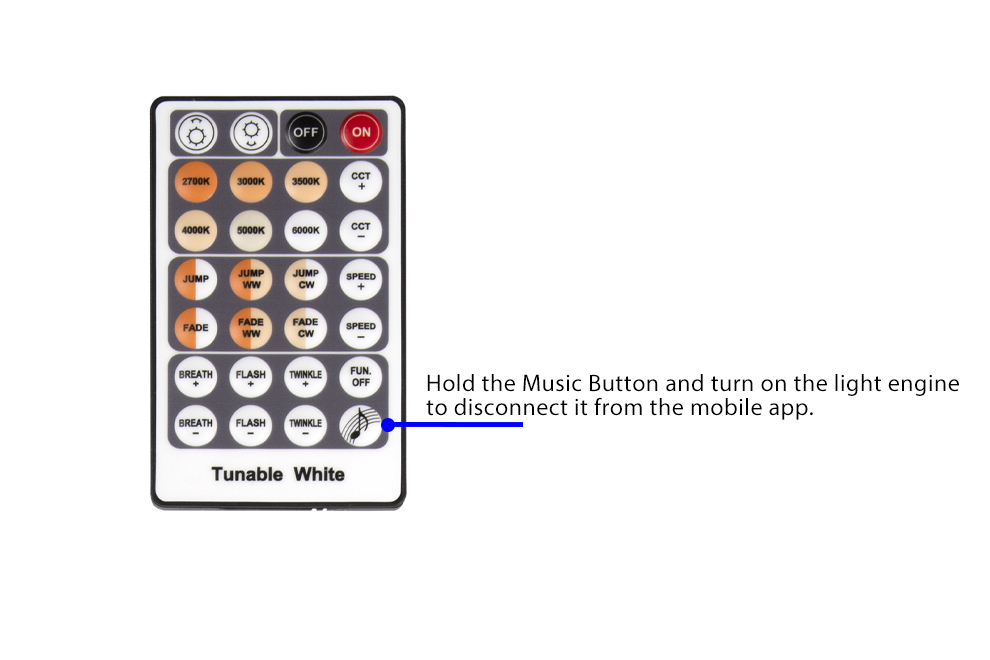

Disconnecting the light engine from the mobile APP
The remote control can disconnect the light engine from the current mobile app, allowing a second mobile device to reconnect it.
When the light engine is already connected to the mobile app, turn off the light engine. Then press and hold the button at the bottom-right corner of the remote control (the music button) to turn on the light engine. When the light engine flashes, the disconnection is complete.

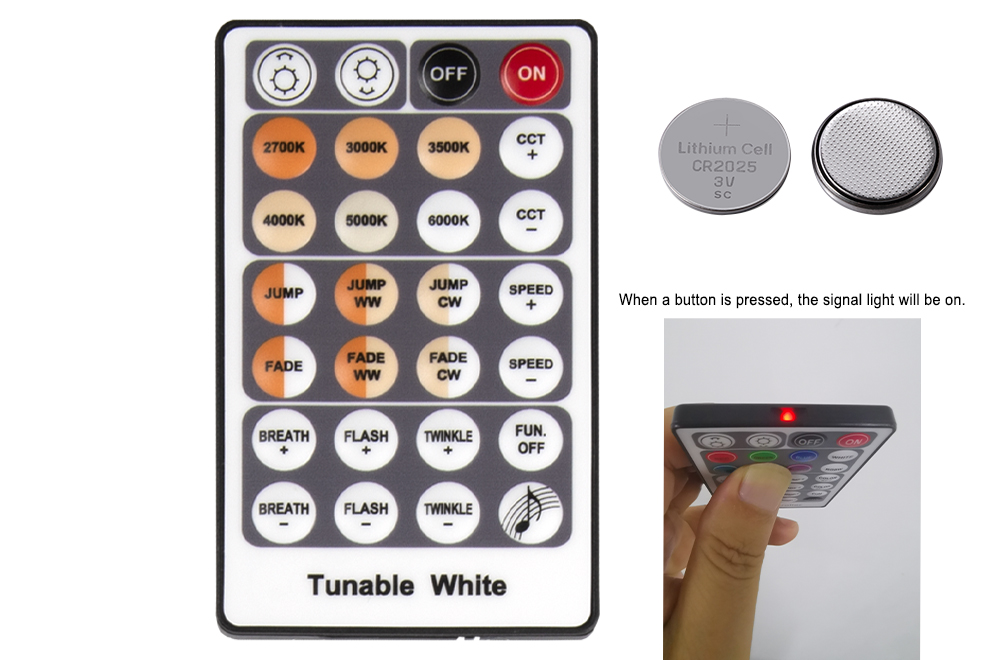

Battery
The battery is not included in all our remote controls, as both air and sea shipments do not allow any cargo containing it. Please source them in the local market.
Battery Model
Lithium Cell
CR2025
3V
