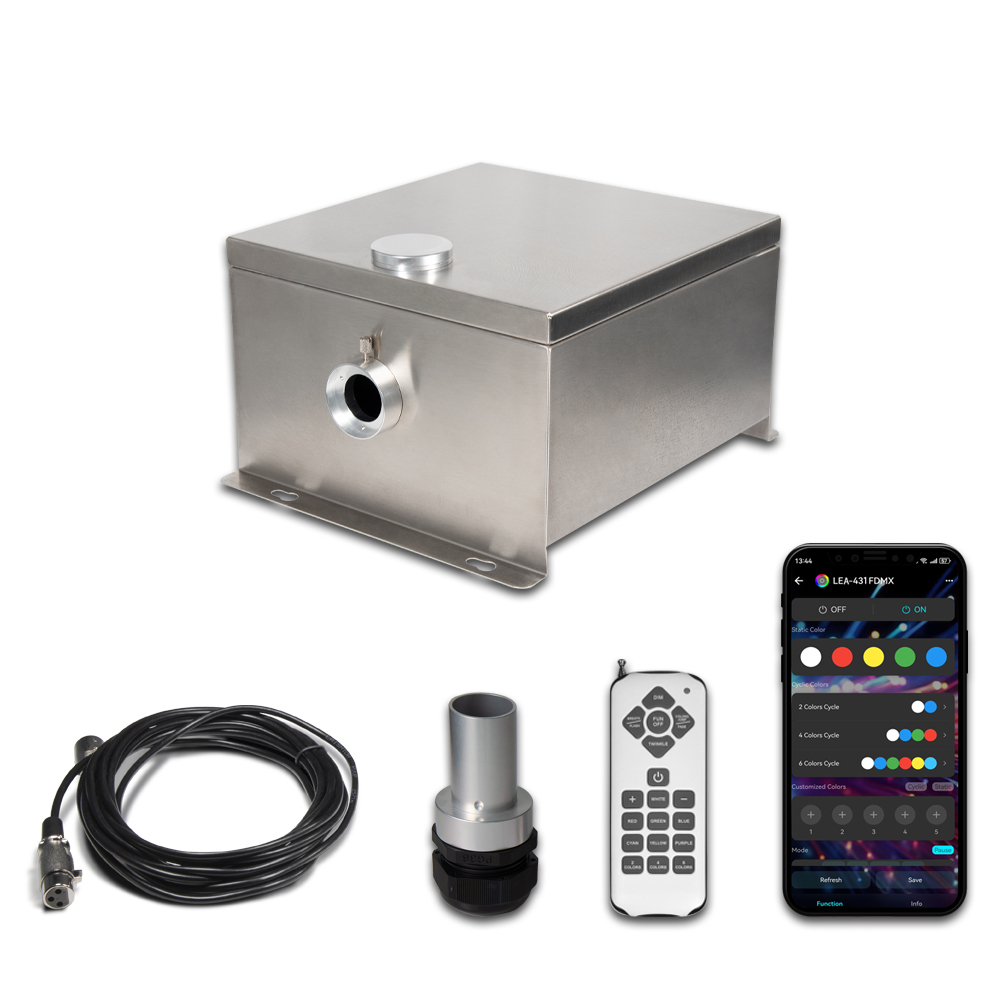

LEJ-8001DMX/WP

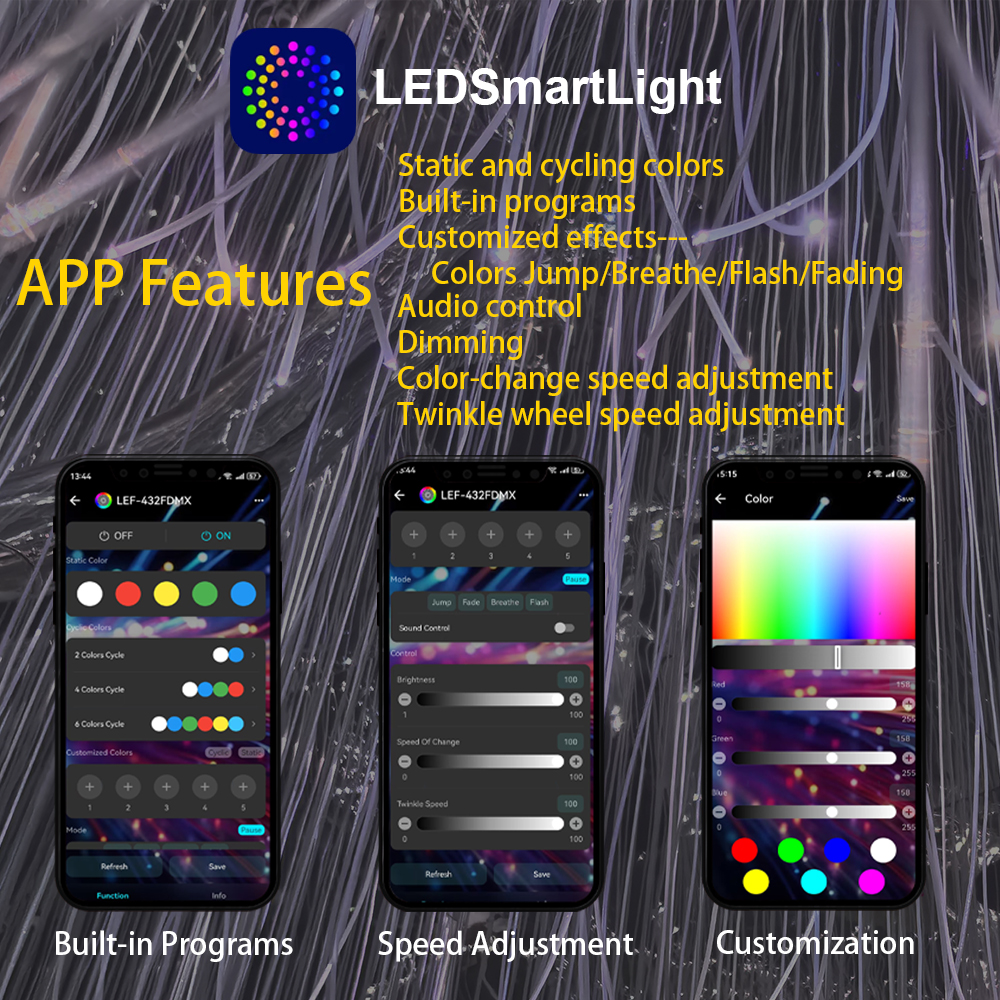

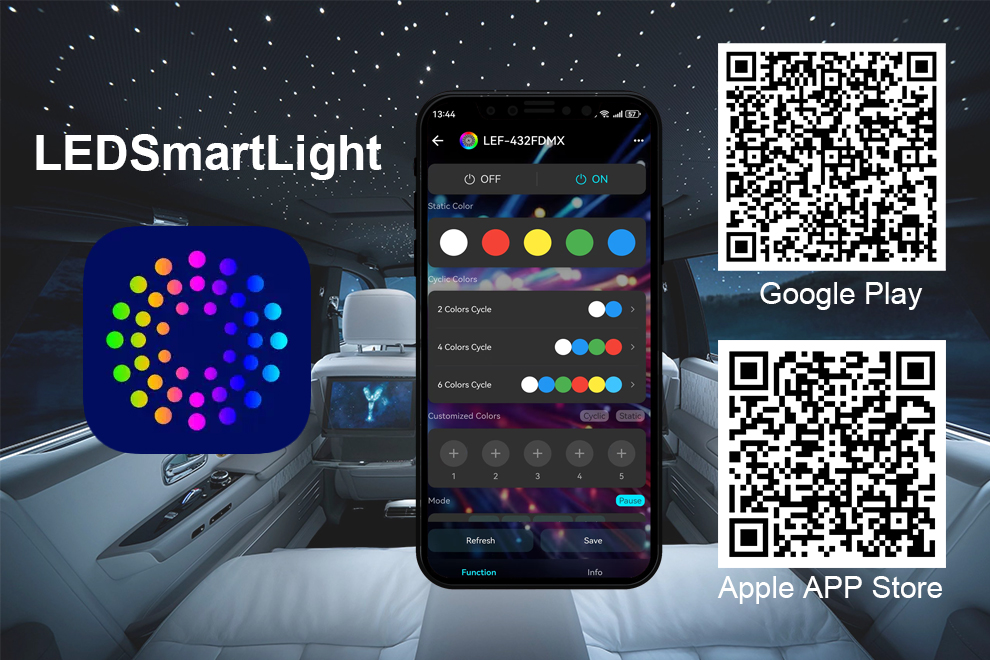

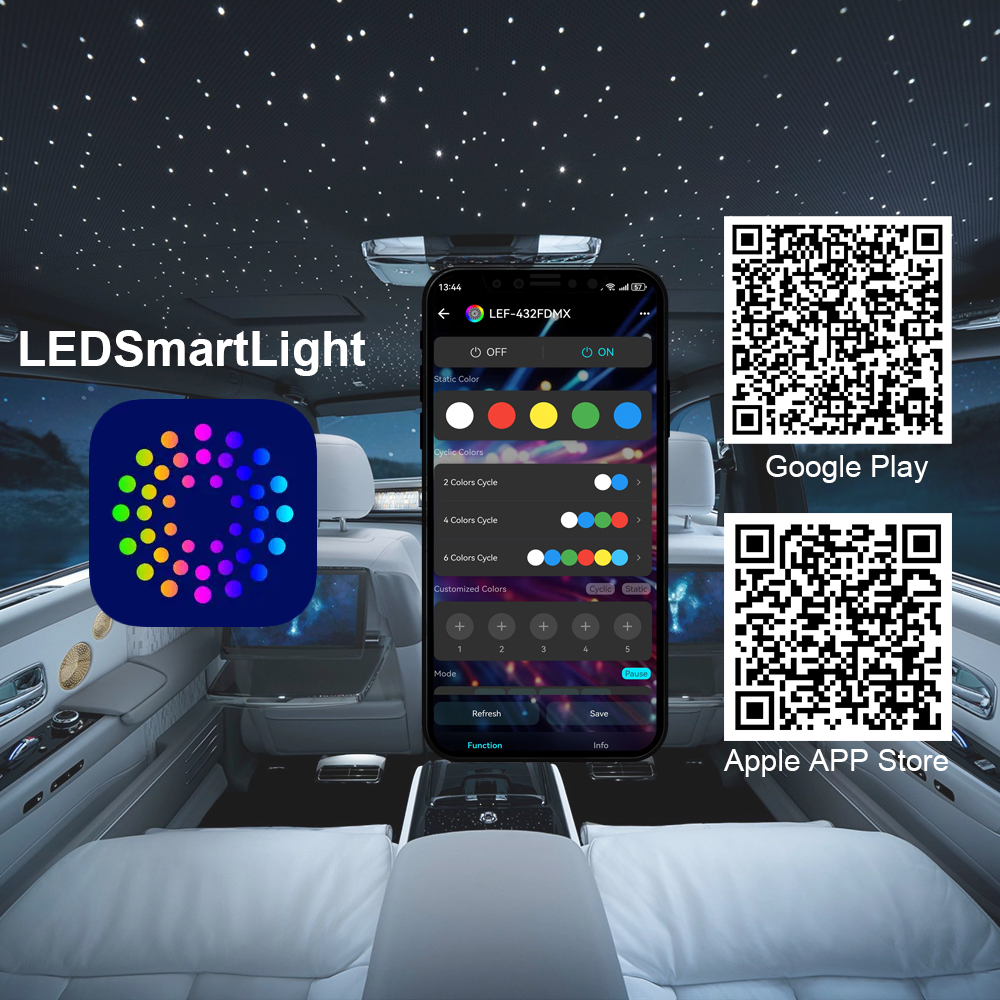

This light engine can be controlled by a mobile APP, LEDSmartLight, which can be downloaded from the Apple App Store or Google Play. The app can also be downloaded by scanning the left QR code.

This mobile APP is developed by Minar Illumination and is different from the existing ones in the market. It features easy operation.

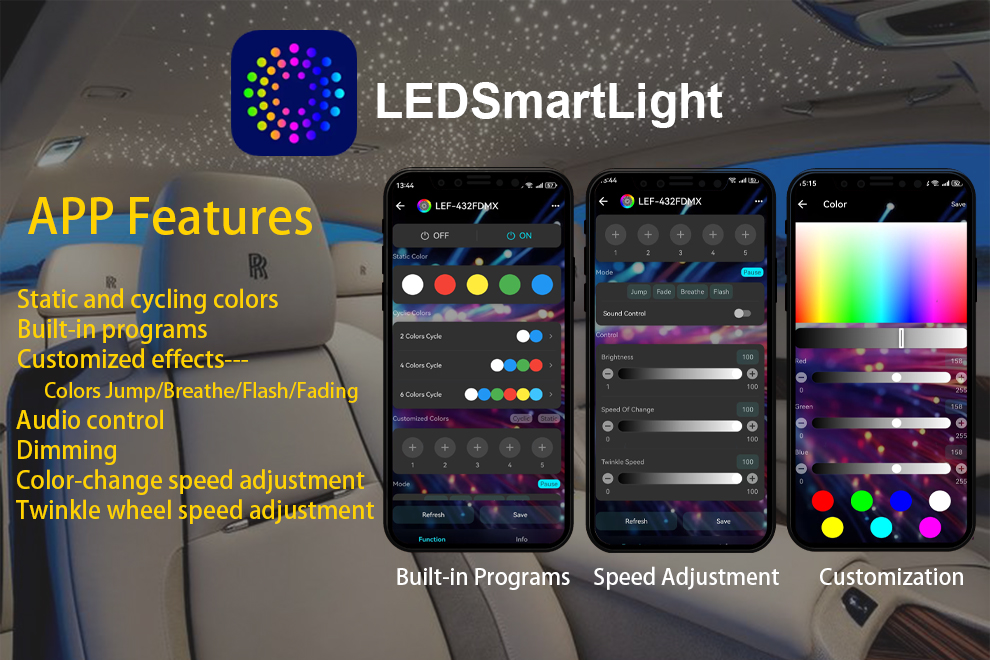

The APP main functions:
* Static and cycling colors
* Built-in programs
* Customized effects - Colors Jump/Breathe/Flash/Fading
* Audio control
* Dimming
* Color-change speed adjustment
* Twinkle wheel speed adjustment

Remarks: 1. The control interface will not show up until the APP has connected to a light engine via Bluetooth. 2. Color customization is for light engines of RGBW models only.

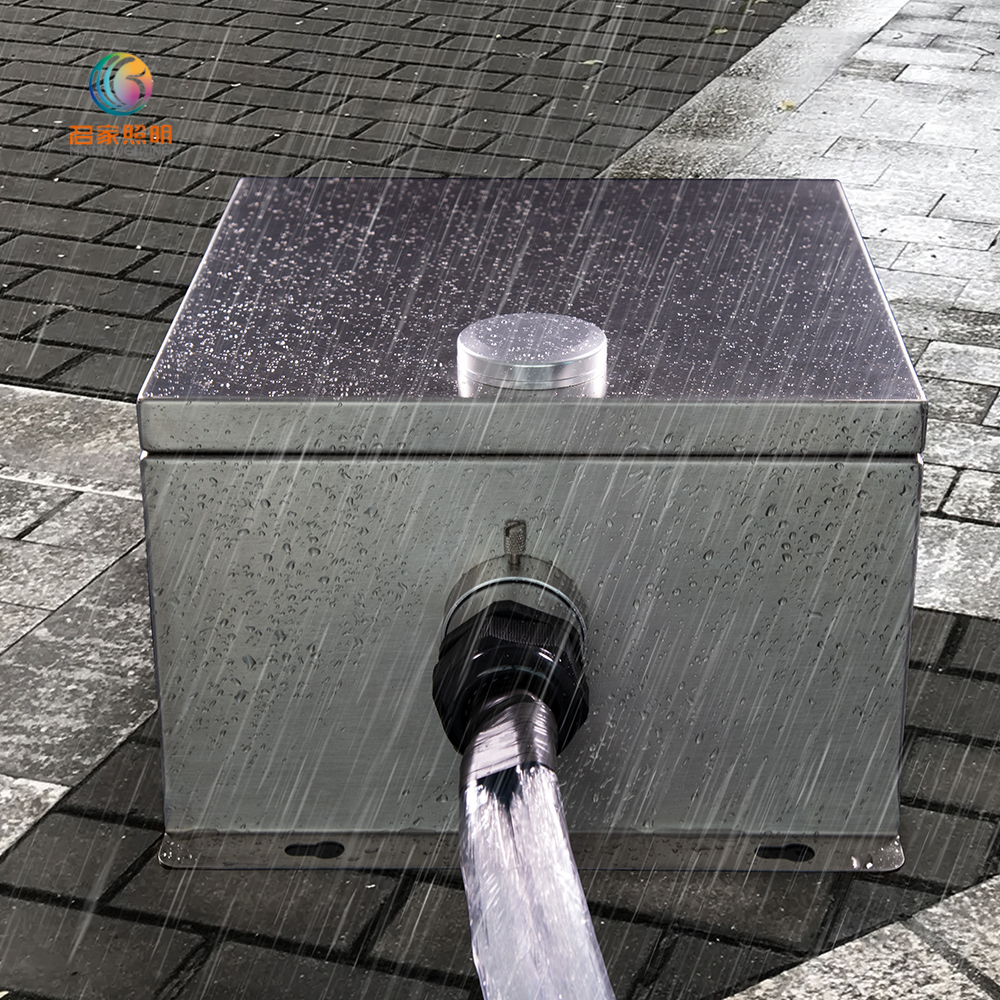

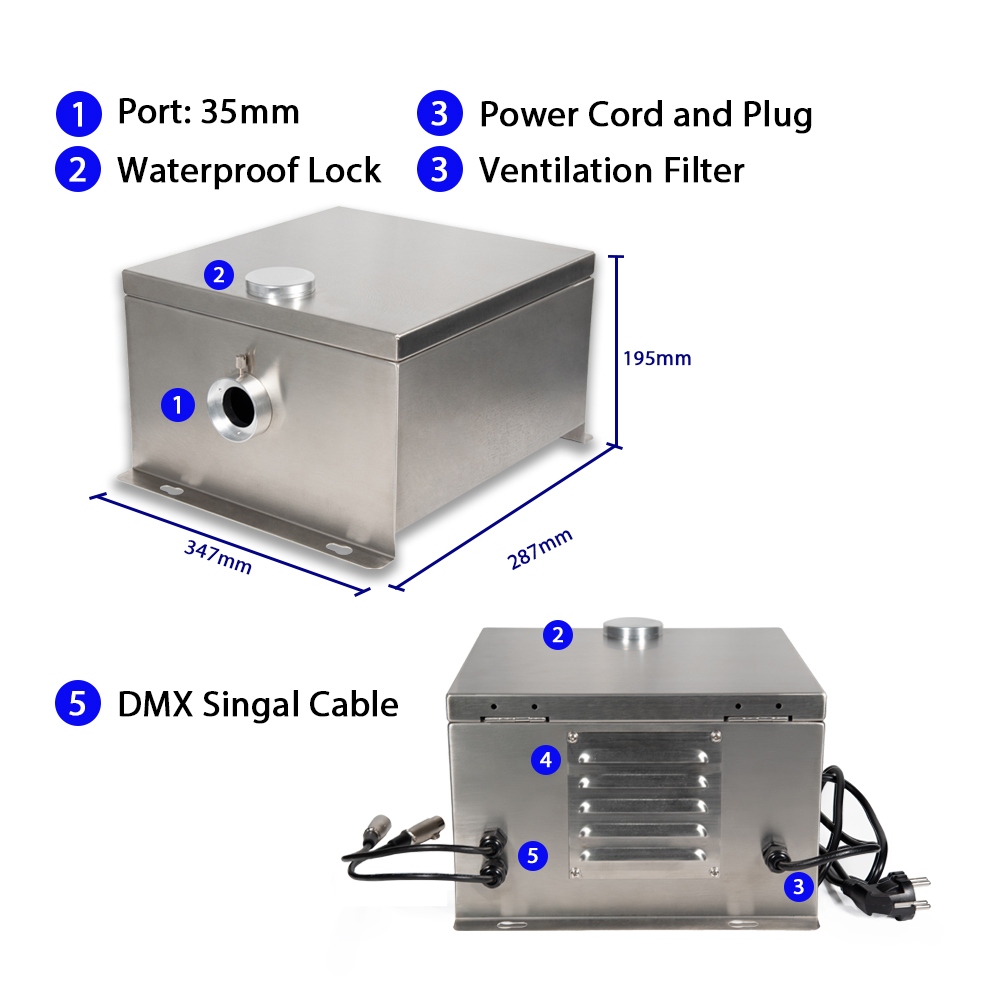

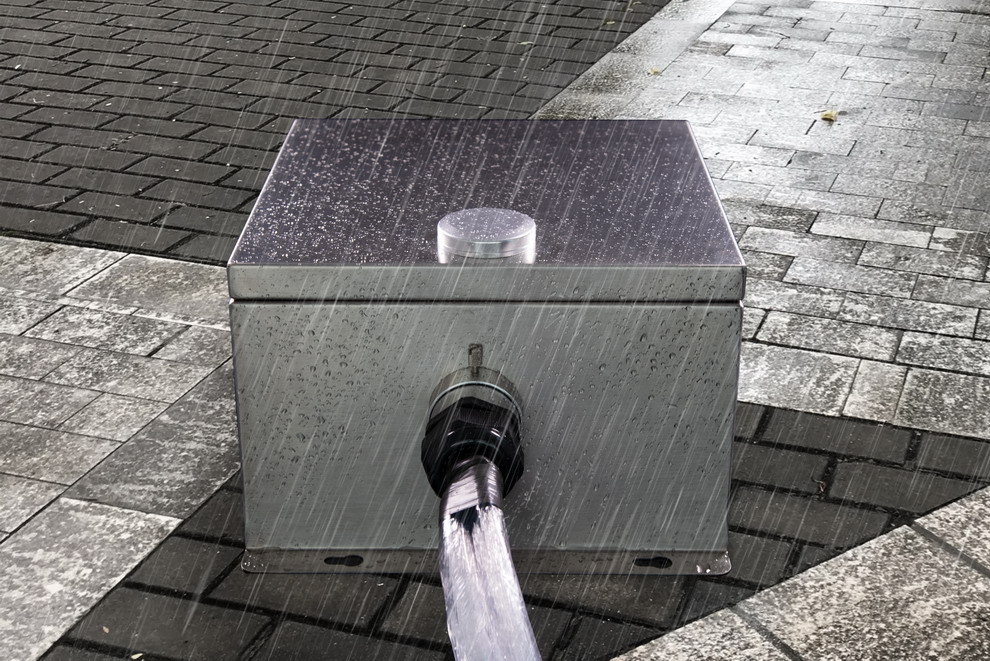

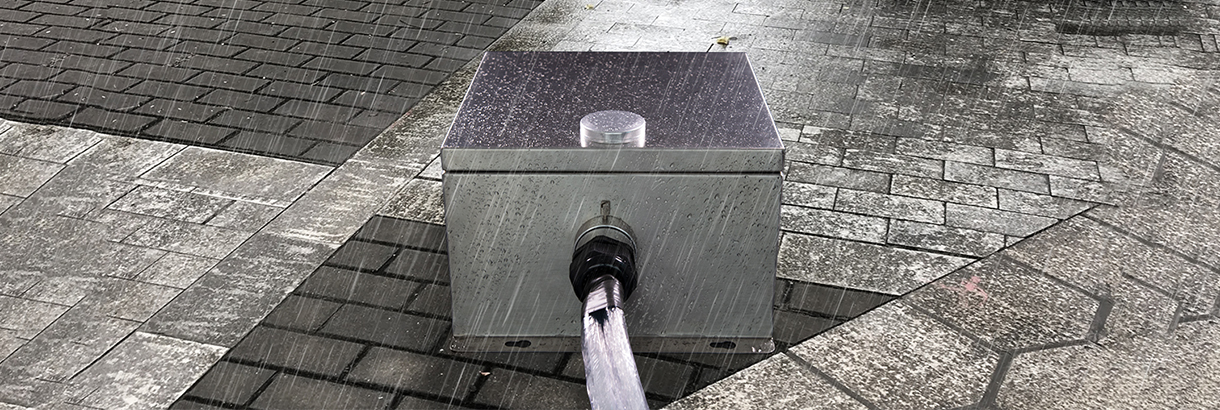

The LEI series of outdoor LED light engines uses stainless steel SS-304 as its housing material to achieve an IP43 rating. This enables the light engine to be placed in the pump room or even directly outdoors.

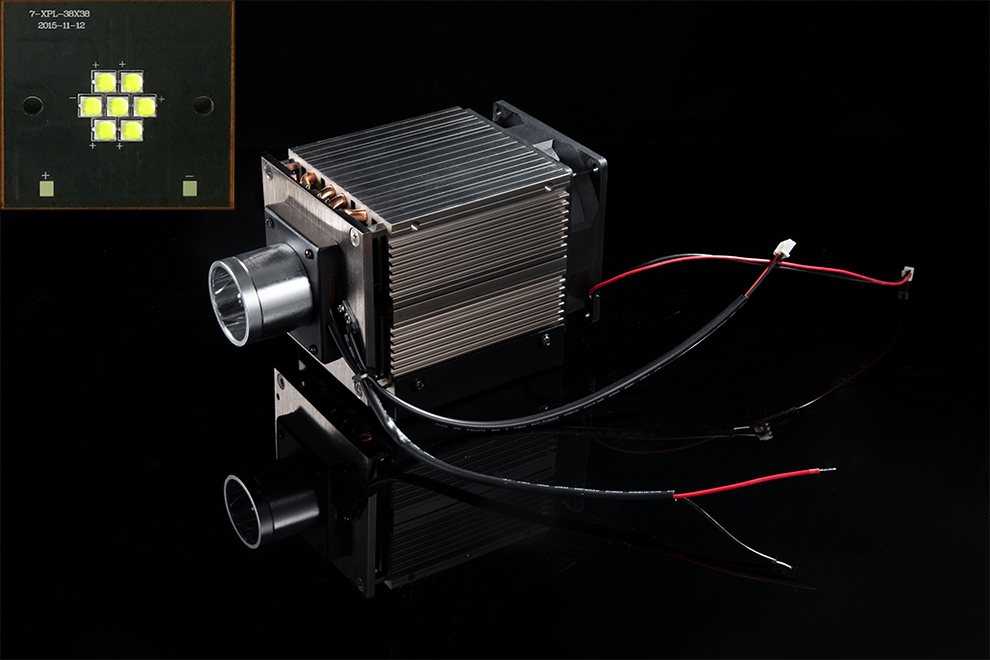

7 pieces of Cree XPL LED arrays are used as the light source; LEJ-8001DMX/WP is the best replacement for a 150W metal halide light engine for perimeter lighting and long-distance ceiling star lighting.

A specially designed heat sink and the temperature detector will ensure the light engine has superior performance.

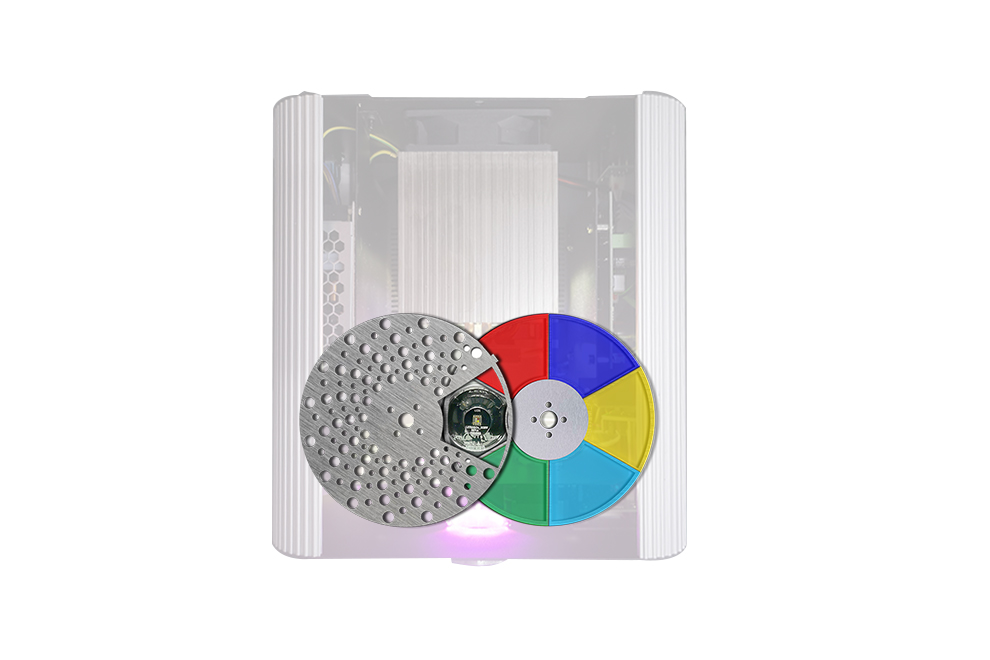

LEJ-8001DMX/WP, a single-port dual-wheel light engine, provides a variety of color change options: static color, cycling colors, static color twinkle, cycling colors twinkle.

Both wheels can be controlled separately by a remote control, mobile app, or the onboard OLED display.

5 DMX Channels:
CH1: Color,
CH2: Color face speed,
CH3: Twinkle,
CH4: Dimmer,
CH5: Strobe.

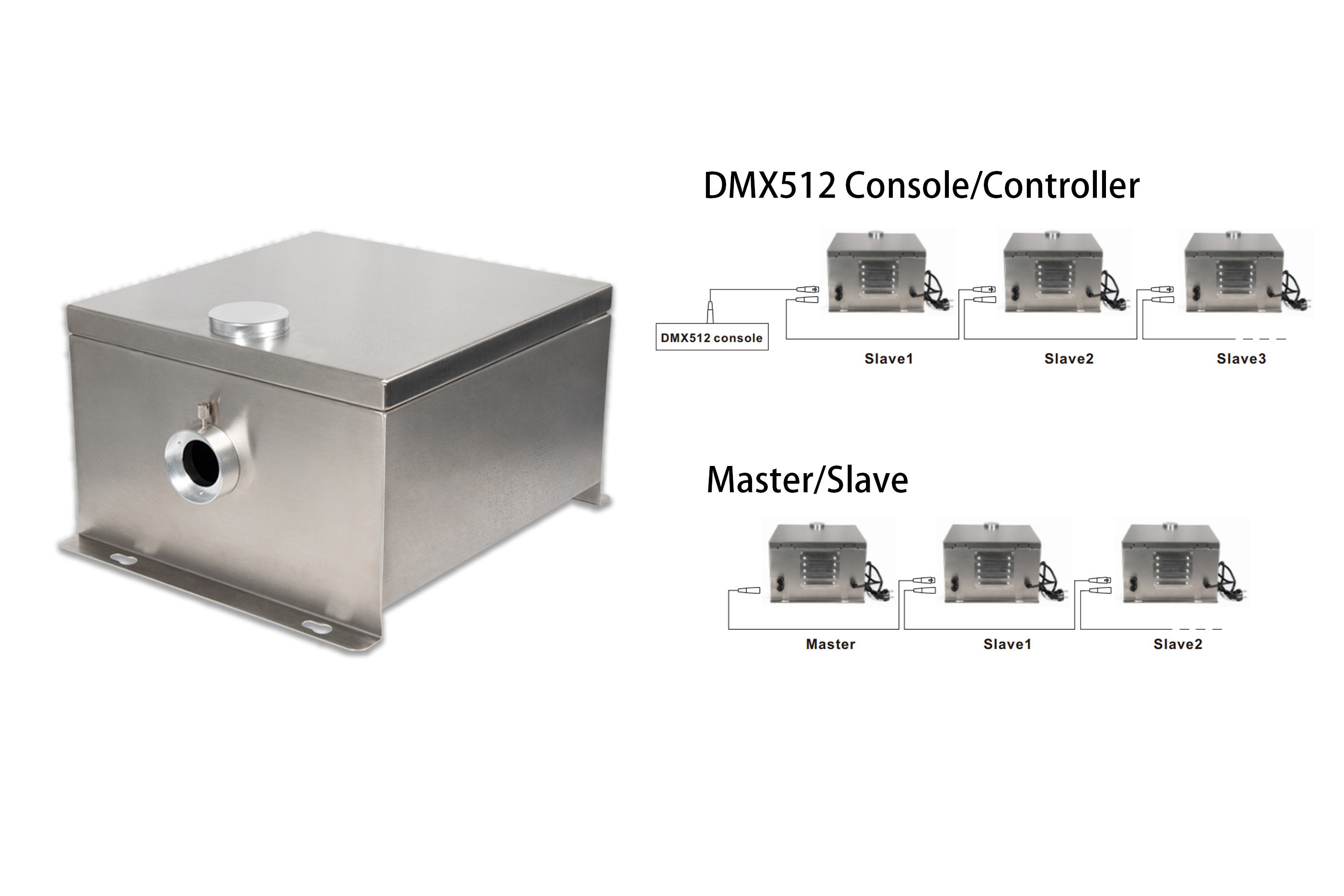

Multiple units of the DMX512 light engines can be connected as a group via DMX signal cables to run the master-slave control mode.

In master-slave control mode, there will be one and only one master light engine, and all the rest will be set as slave machines. The master runs the built-in program with or without the remote control, and all slave machines will automatically follow to have a synchronous or progressive effect.

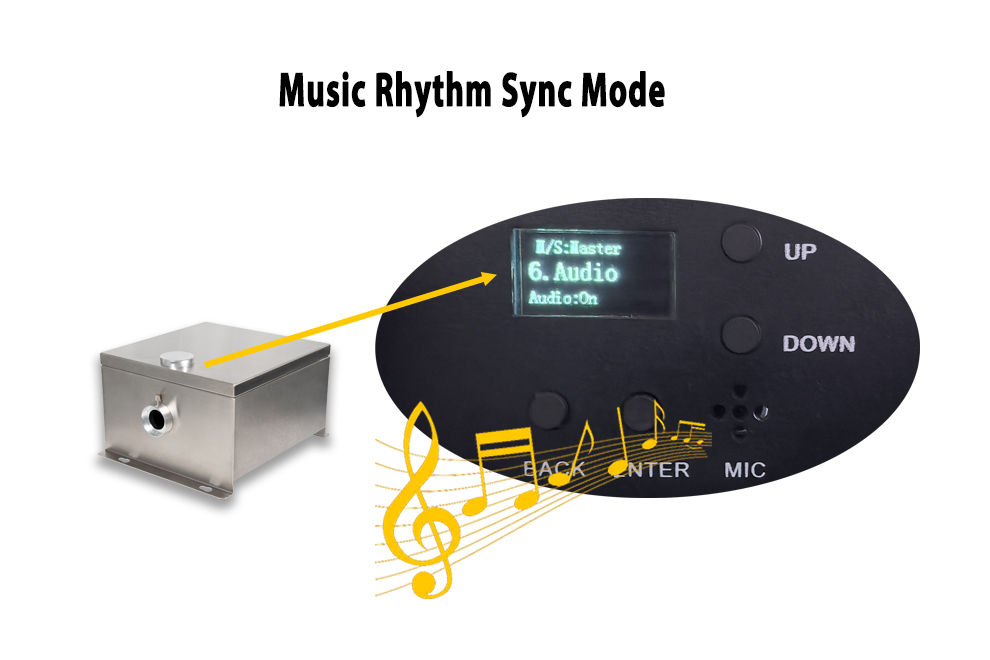

The light engine has a music rhythm sync mode.

By default, the audio function is turned off. Please activate the audio function via the APP or on the onboard display.

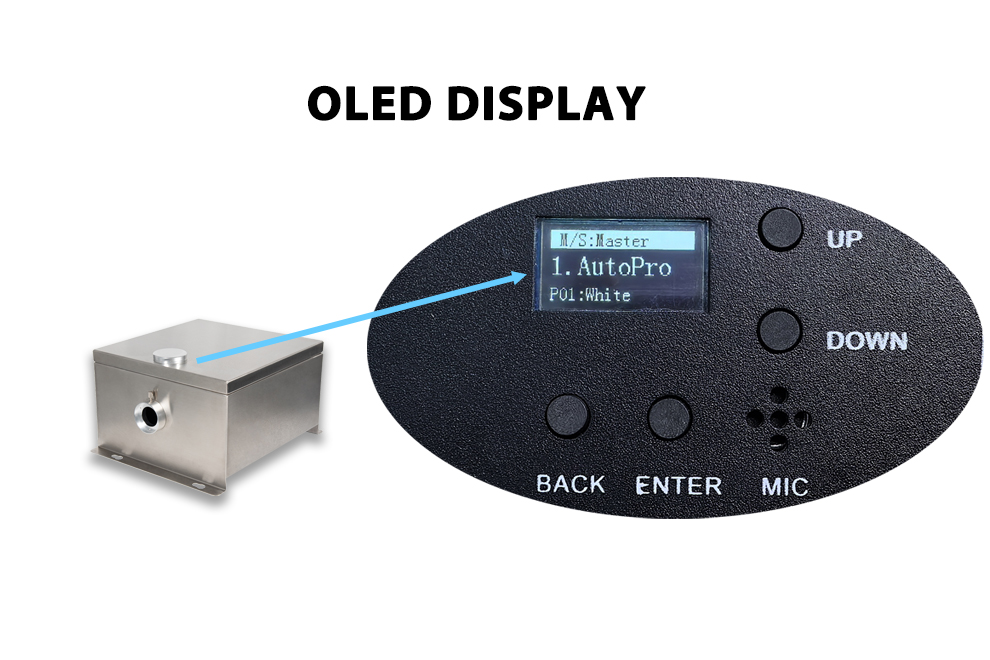

The new light engine has replaced the original digital LED display with an OLED display to display operational information. Open the cover lid of the light engine, and you will find an OLED display.

You can also switch the control command directly on the OLED display to control the light engine.

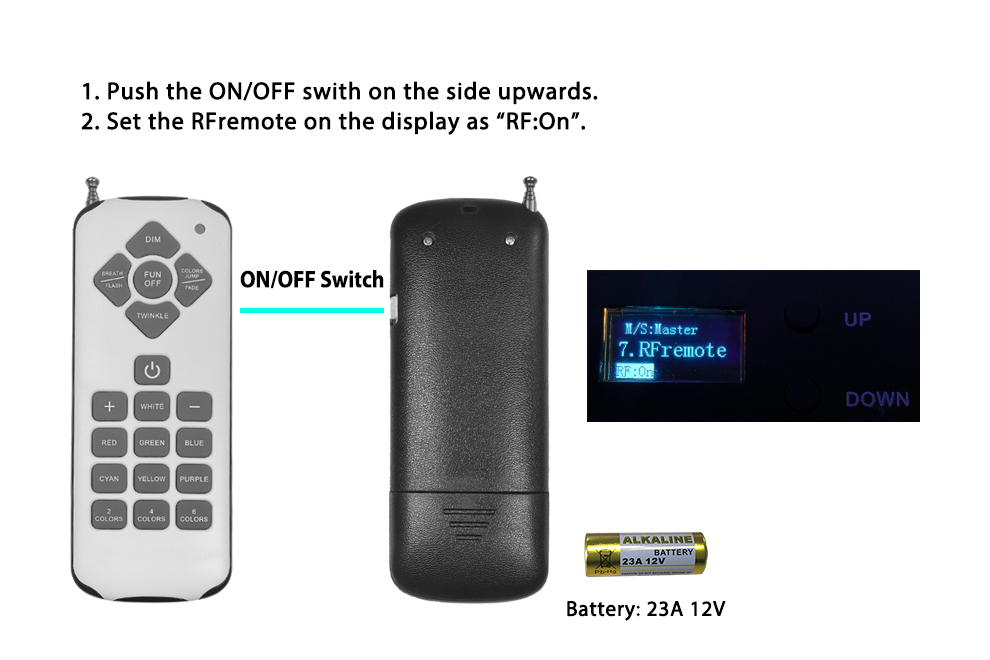

A new remote control, RC-18, is used for line-voltage DMX light engines.

IMPORTANT:
1. Ensure the remote control settings on the OLED display are "ON".
2. This remote control requires one battery (23A 12V), which is not included in the package.
3. When not using the remote control, turn off the power switch on the side of the remote to conserve battery power.

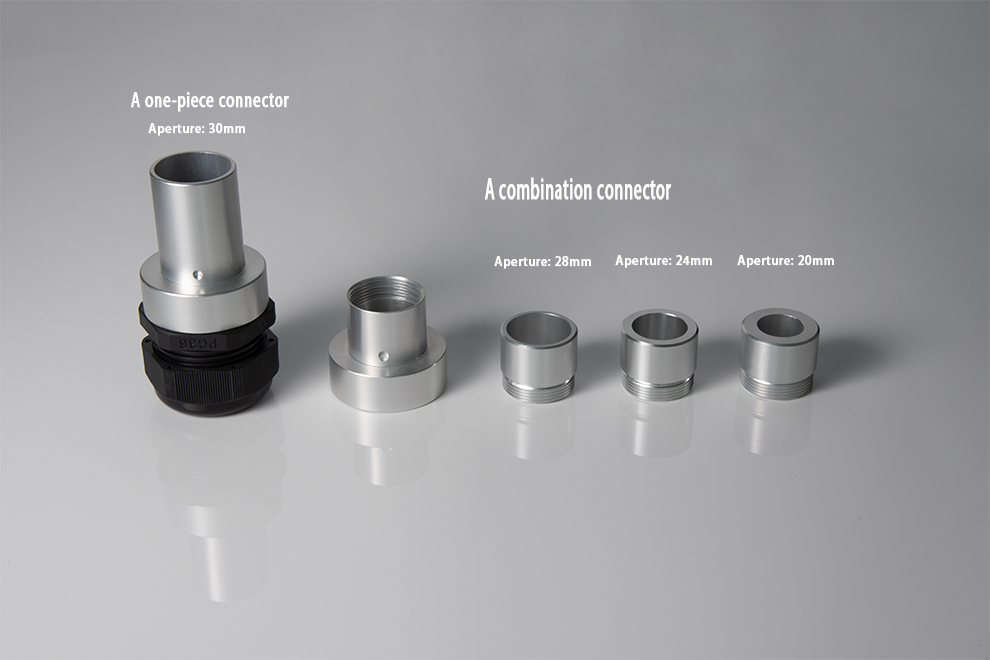

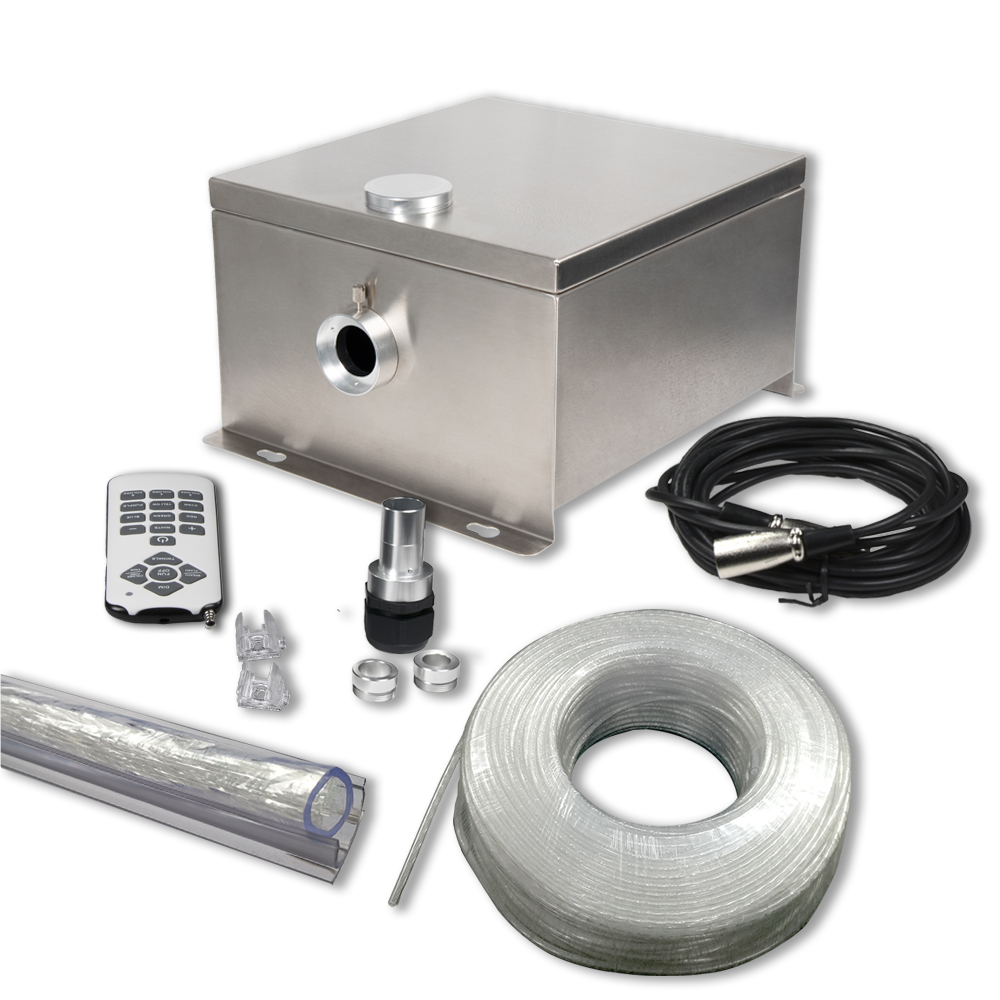

By default, Minar provides one piece of 20mm/24mm/28mm 3-in-1 combined fiber connector for each line-voltage light engine. These apertures are capable of 540pcs, 770pcs, and 1050pcs of 0.75mm fiber tails respectively. 30mm fiber connector is also available upon request.

From left to right, the fiber connector: 30mm, 28mm, 24mm, and 20mm.

Customized apertures are also welcome!

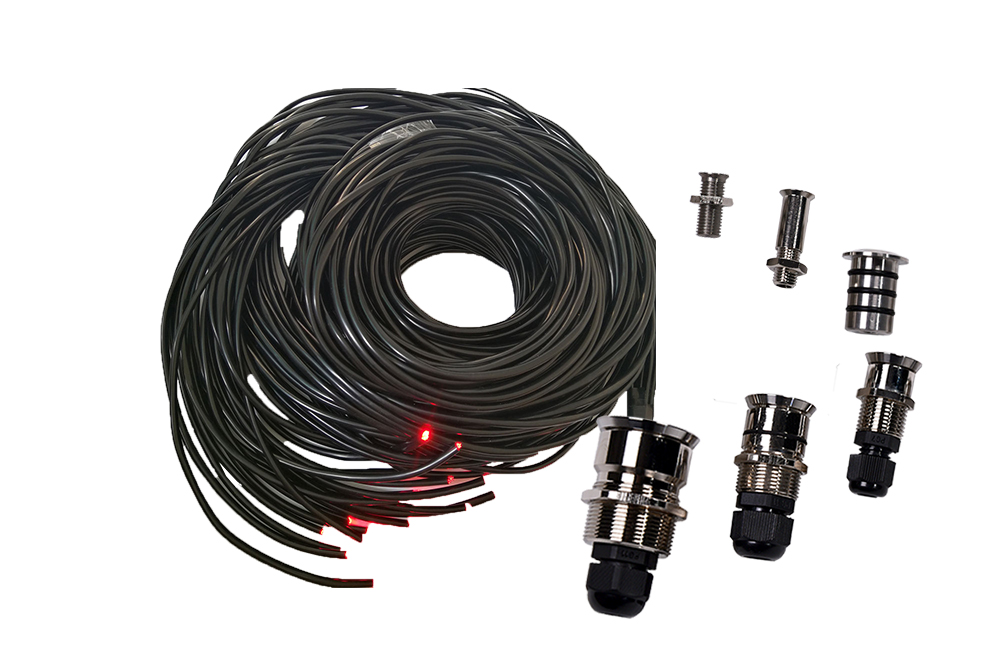

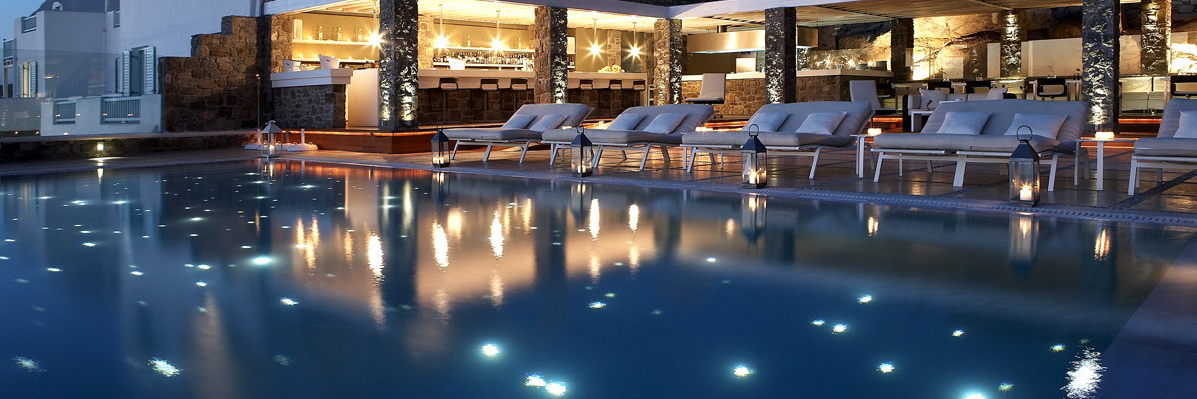

For wet area lighting, the end-glow fiber cable with a black PVC sheath and the buried end fittings are recommended for a starry effect.

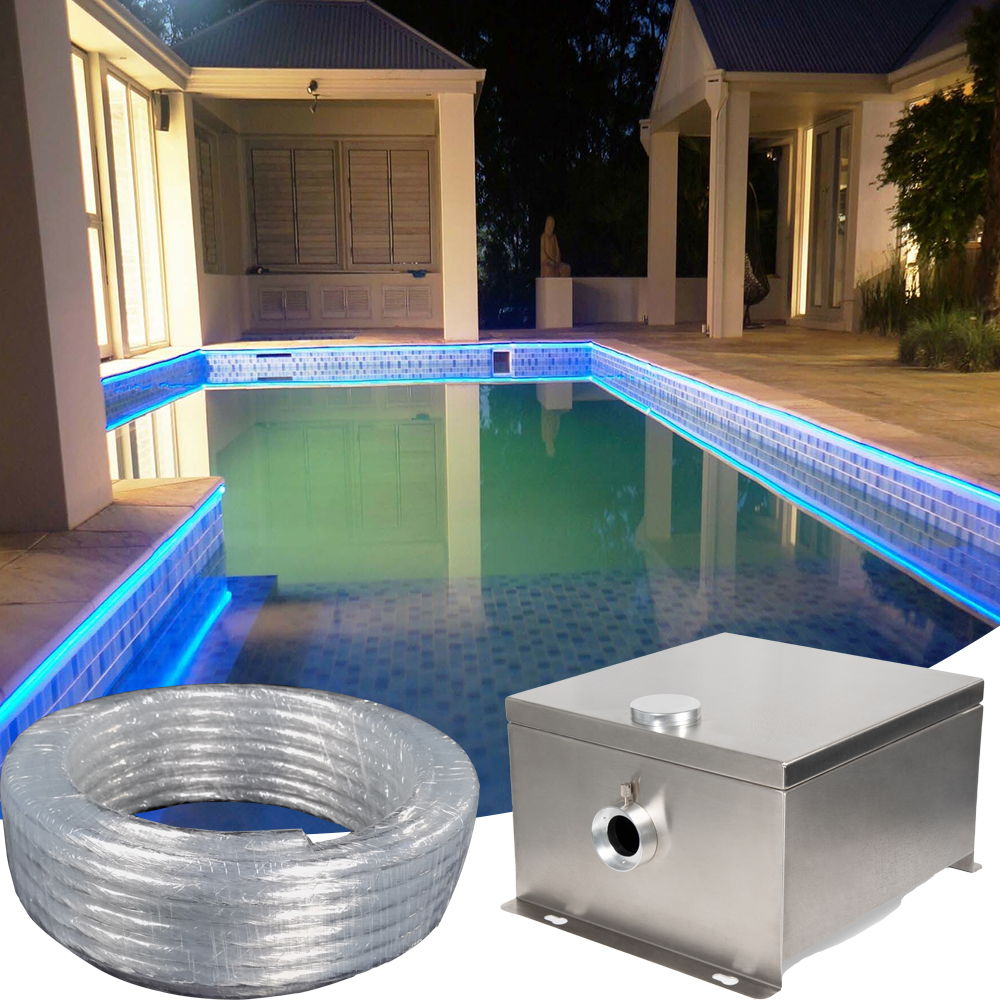

For perimeter lighting, we also have the stranded side-glow multi-string fiber cable and the PVC cable tracks.
