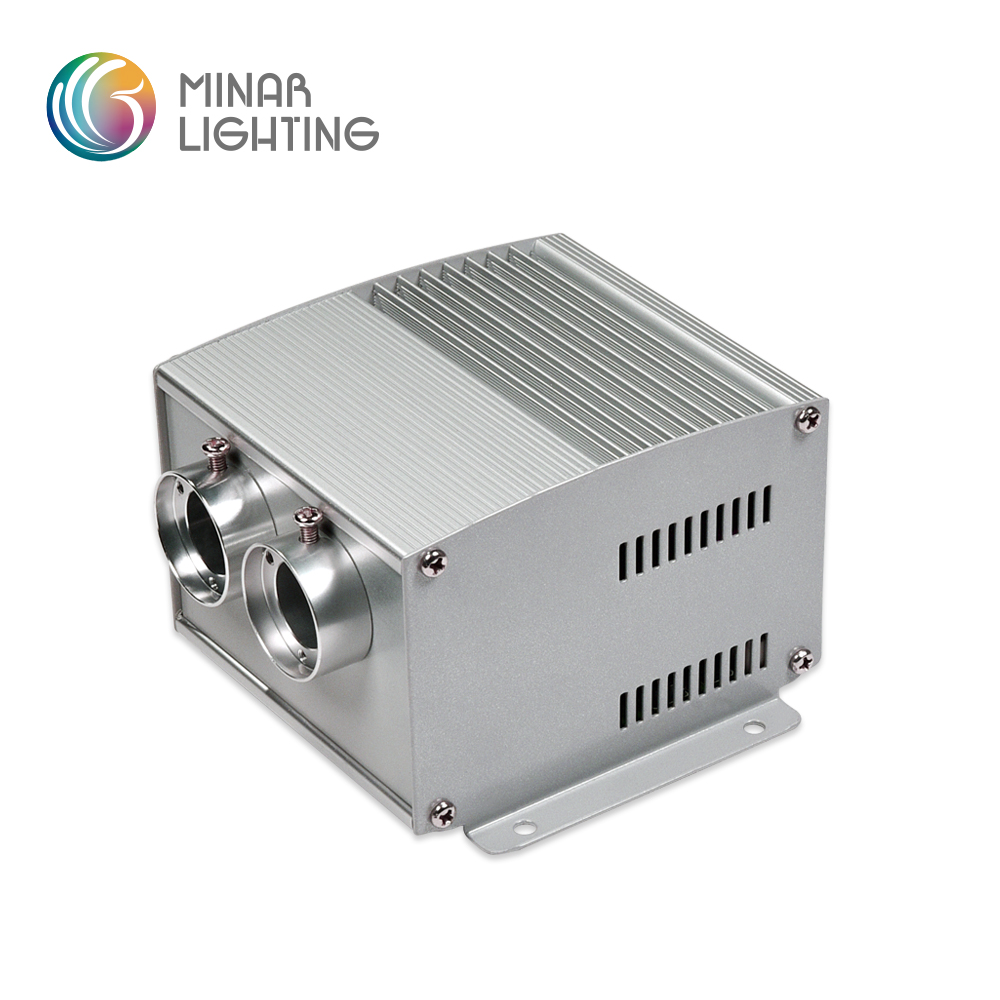

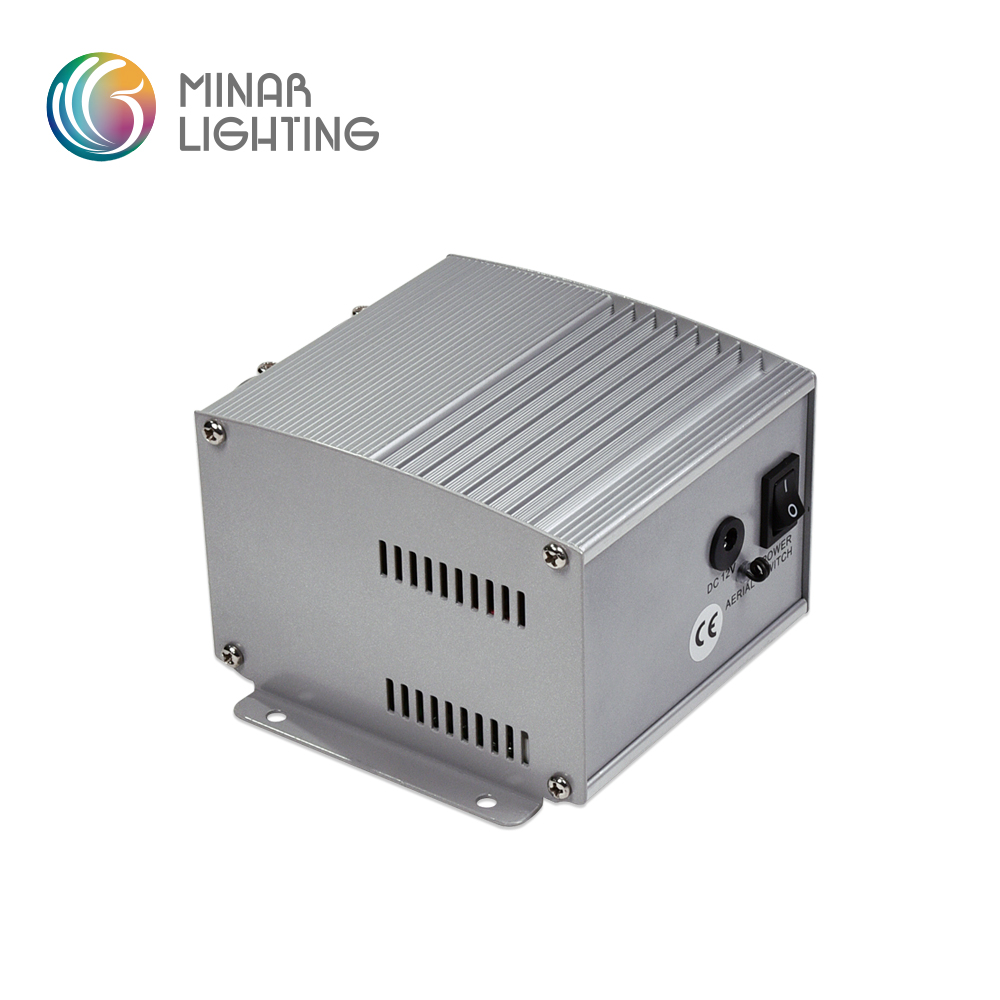

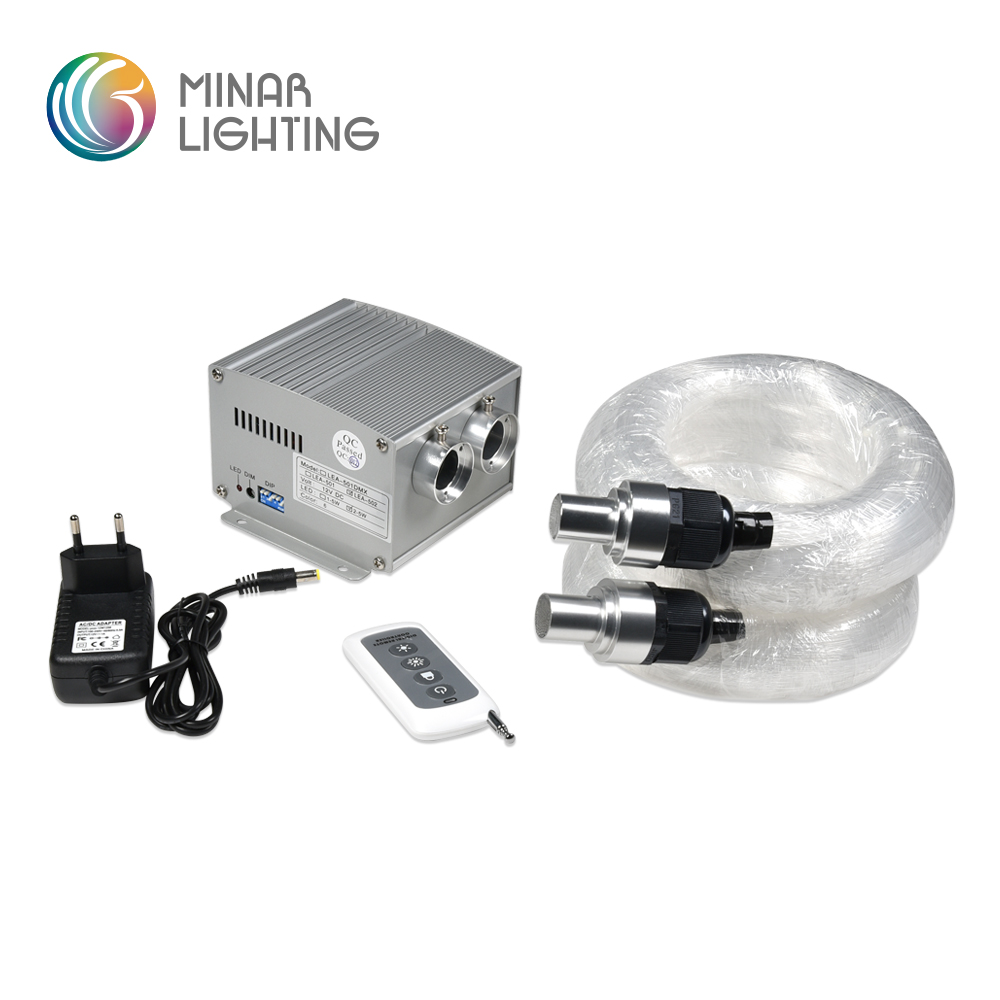

LEA-502

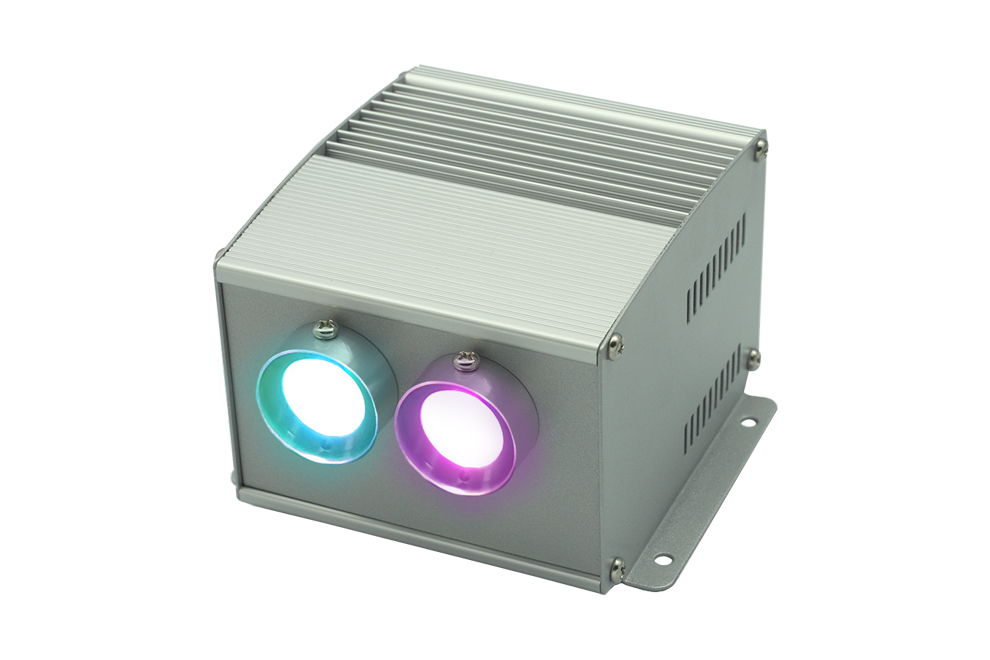

Unlike other dual-port light engines, such as LEB-432, LEB-432DMX, LEF-432DMX, and LEF-502DMX, the two ports of LEA-502 always display different colors when the wheel is of a 6-color one since both ports share the same wheel.

Each port could have an aperture of either 14mm or 18mm. By 18mm, a single port can accommodate 450pcs of 0.75mm or 250pcs of 1.0mm fiber tails. In total one unit of LEA-502 could hold up to 900pcs of 0.75mm fiber tails.

LEA-502 has 8 built-in programmes, which can be selected by the DIP switches.

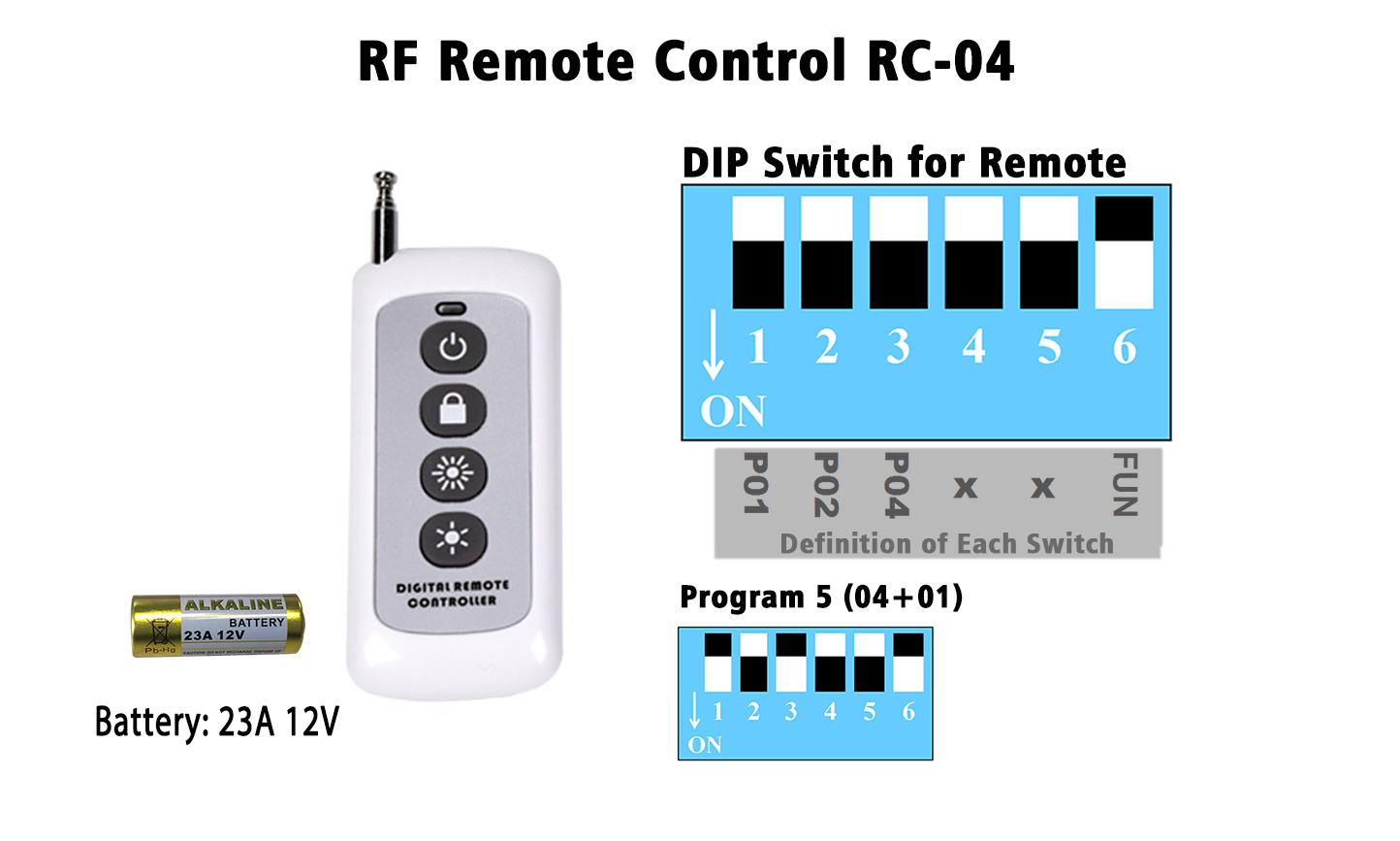

The 4-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 4-key remote control (SW6 ON):
1. Turn on the light engine,
2. Turn off the light engine,
3. Fix the emitting color,
4. Dimming.

Battery: 23A 12V, 1pc (not included in the package).

By default, a 6-color wheel has been assembled in the light engine.

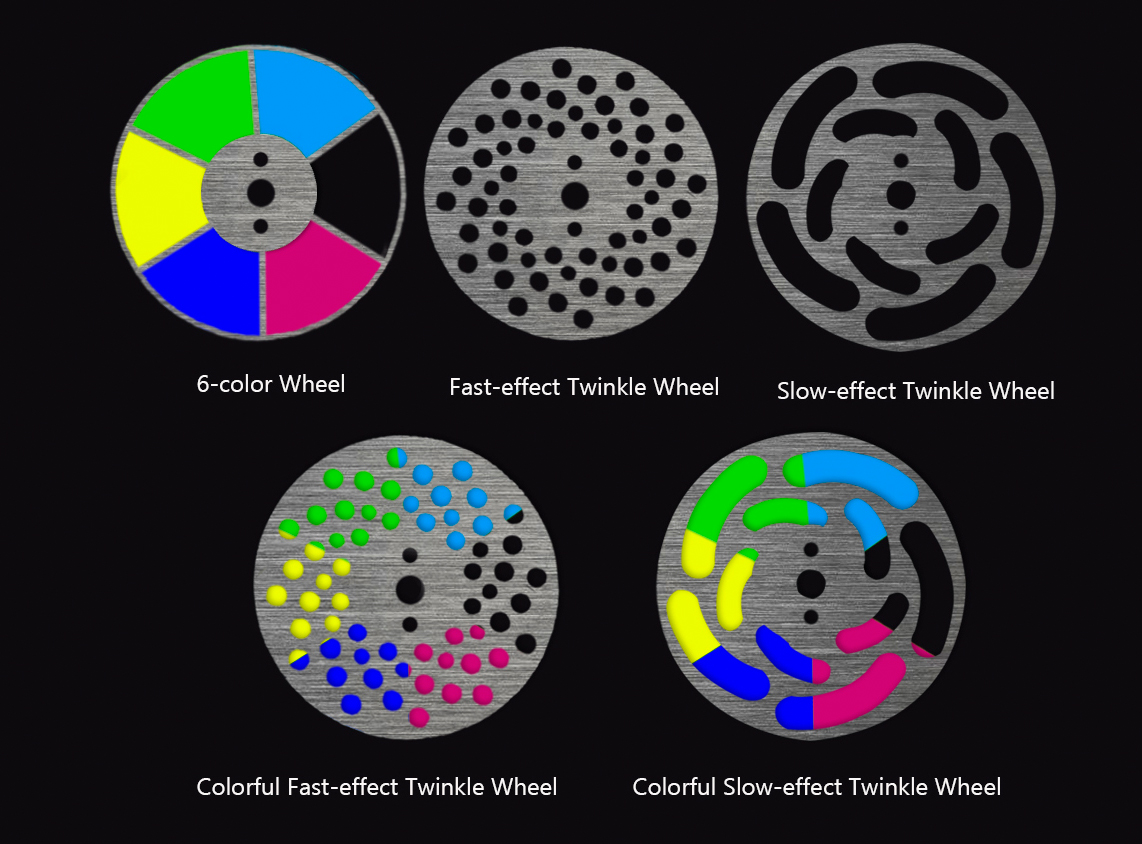

The wheels/discs that could be equipped into LEA-502 fiber optic light engine, from left to right and top to bottom:
1. 6-color wheel,
2. Fast-effect twinkle wheel,
3. Slow-effect twinkle wheel,
4. Fast-effect colorful twinkle wheel,
5. Slow-effect colorful twinkle wheel.

Other wheels/discs are available at request, and customized requirement is also welcome.

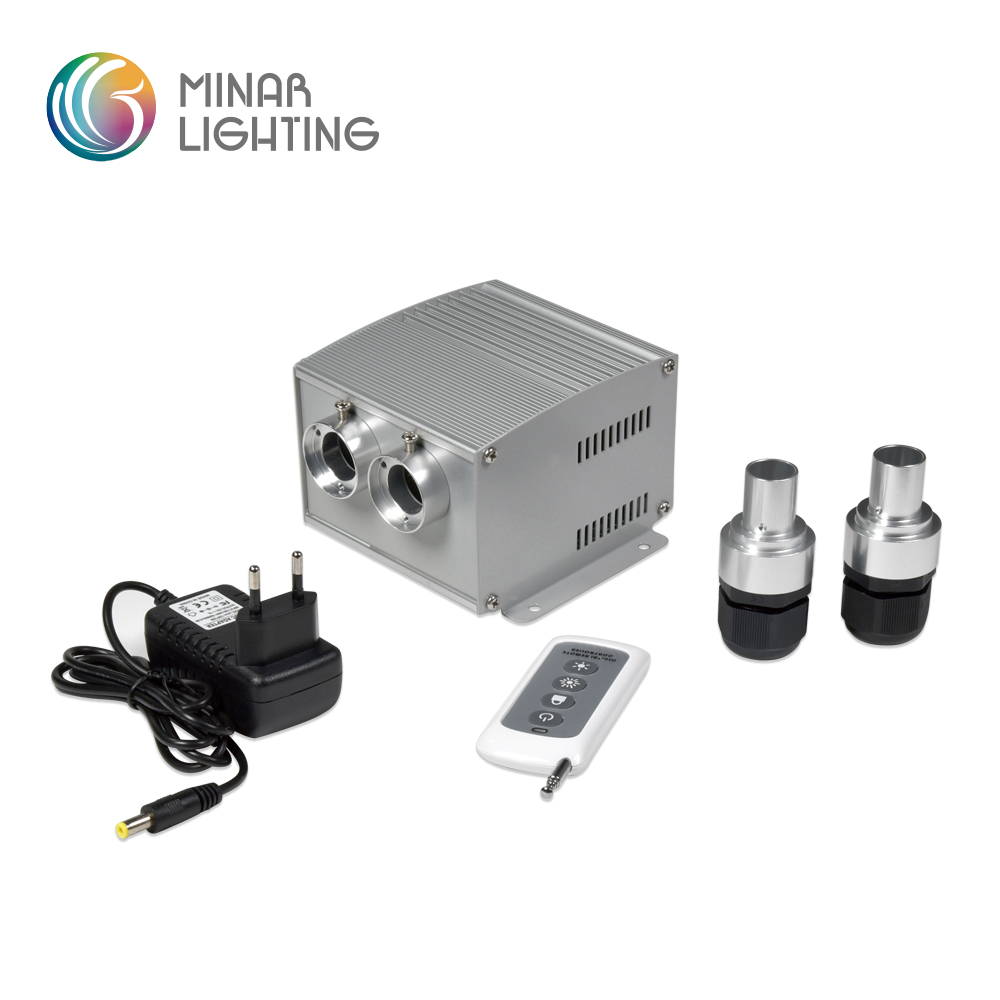

By default Minar provides two pieces of 14mm fiber connectors for dual ports low-voltage light engines. A fiber connector of this aperture is capable of 250pcs of 0.75mm fiber tails. At request, two 18mm fiber connectors are also available. One piece of 18mm fiber connector is capable of 450pcs of 0.75mmm fiber tails.

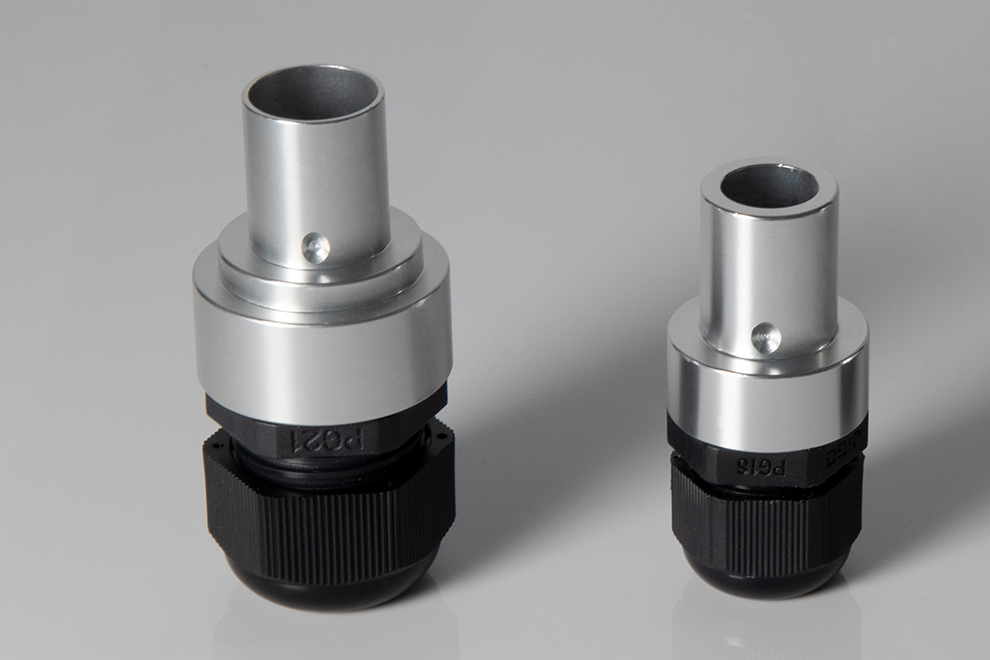

From left to the right, the fiber connector: 18mm, 14mm.

Fiber connectors of customized apertures are also welcome!

Low voltage fiber optic light engines are generally packaged in neutral color boxes. One unit of the fiber optic machine is packed in a color box. 8 to 10 color boxes are packed in an export carton.
