LEA-501DMX

LEA series of LED light engine applies white LED module as its light source. By default, this series has a built-in 6-colour wheel to emit different colors. LEA-501 is the most commonly used model in the fiber optic star ceilings.

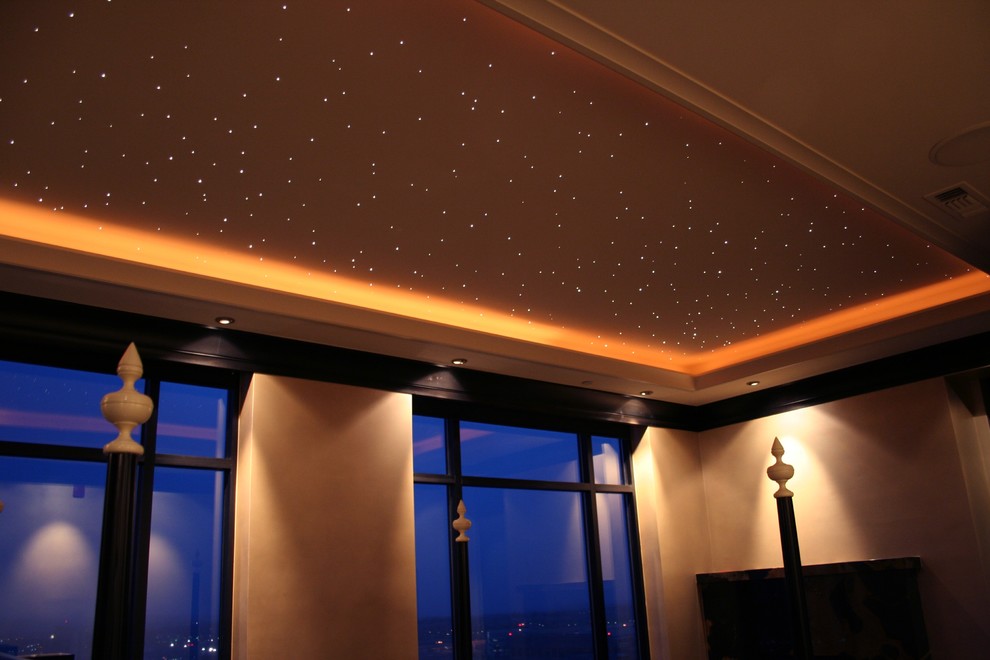

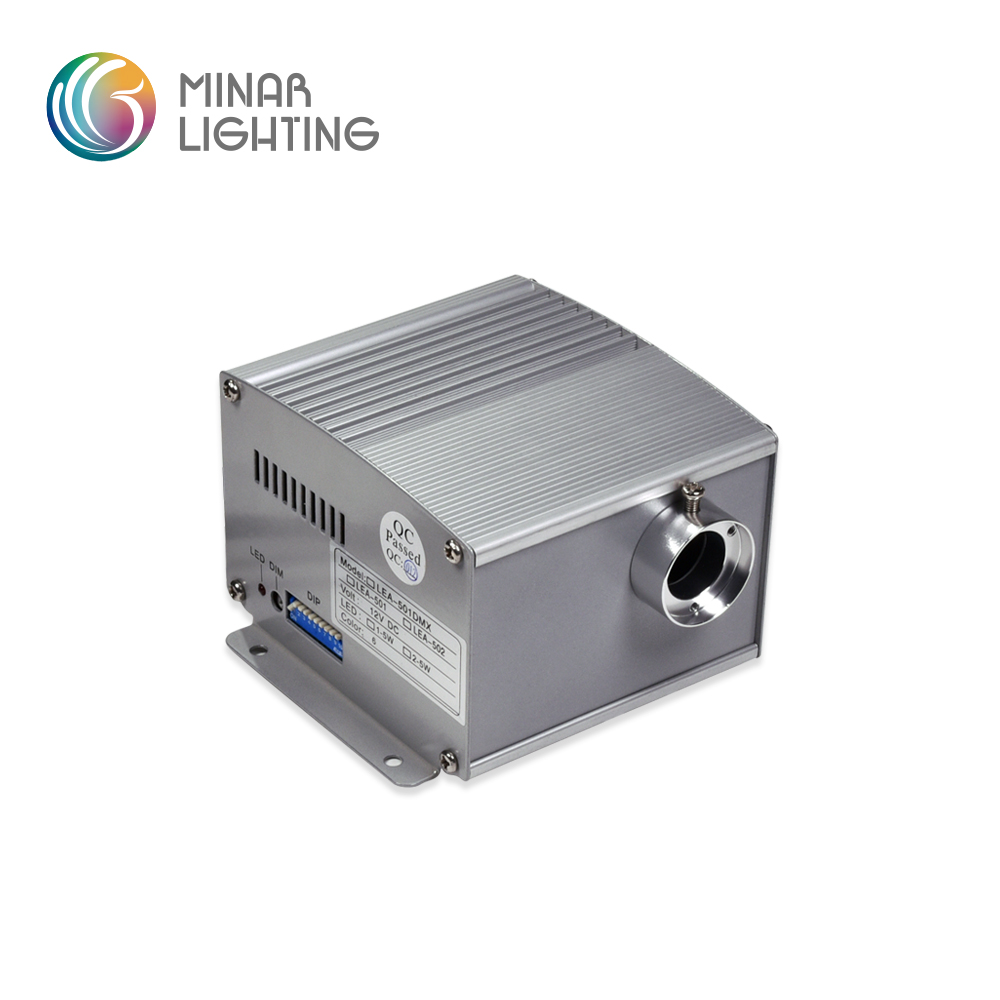

8W LED Light Engine for star ceilings

General Information:

1. Model: LEA-501DMX,

2. Input Voltage: DC 12V,

3. Light Source: White light LED,

4. LED Type: 5W, Cree, 3000K/4000K/6000K,

5. Wheel/Disc: 6-color wheel/Twinkle wheel/Colorful twinkle wheel,

6. Control: DMX512/Remote control/DIP switches,

7. Light Emitting: Static color/Cycling colors,

8. Adjustable wheel spin speed,

9. Dimmable,
10. No fans, noise free,

11. DMX512 protocol: DMX512 console or master-slave control

12. IP Rating: IP20,

13. Warranty: 2 Years,

14. Packing: Neutral color box.

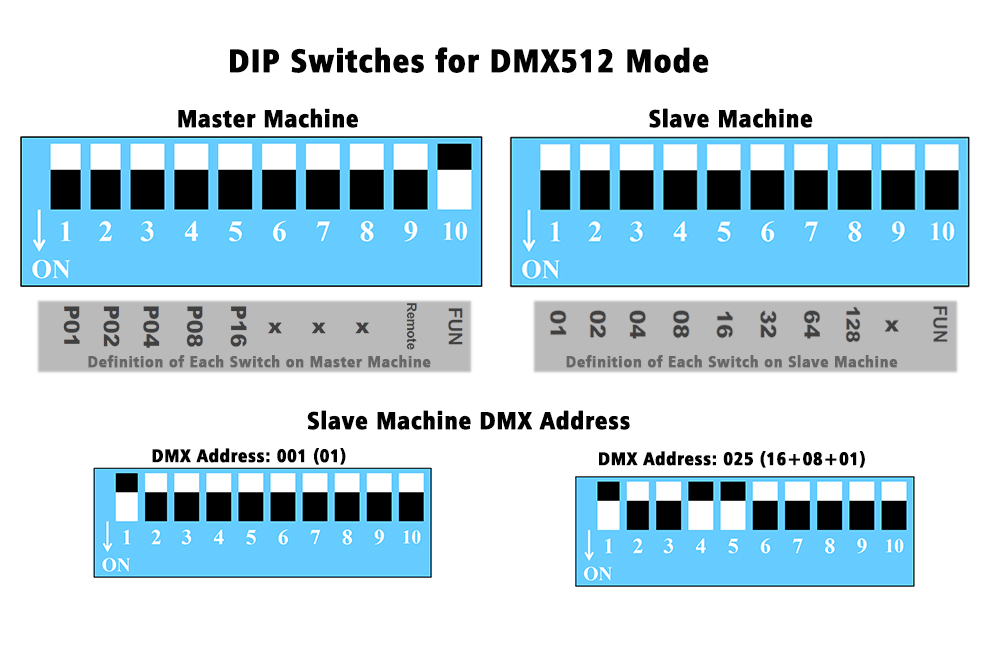

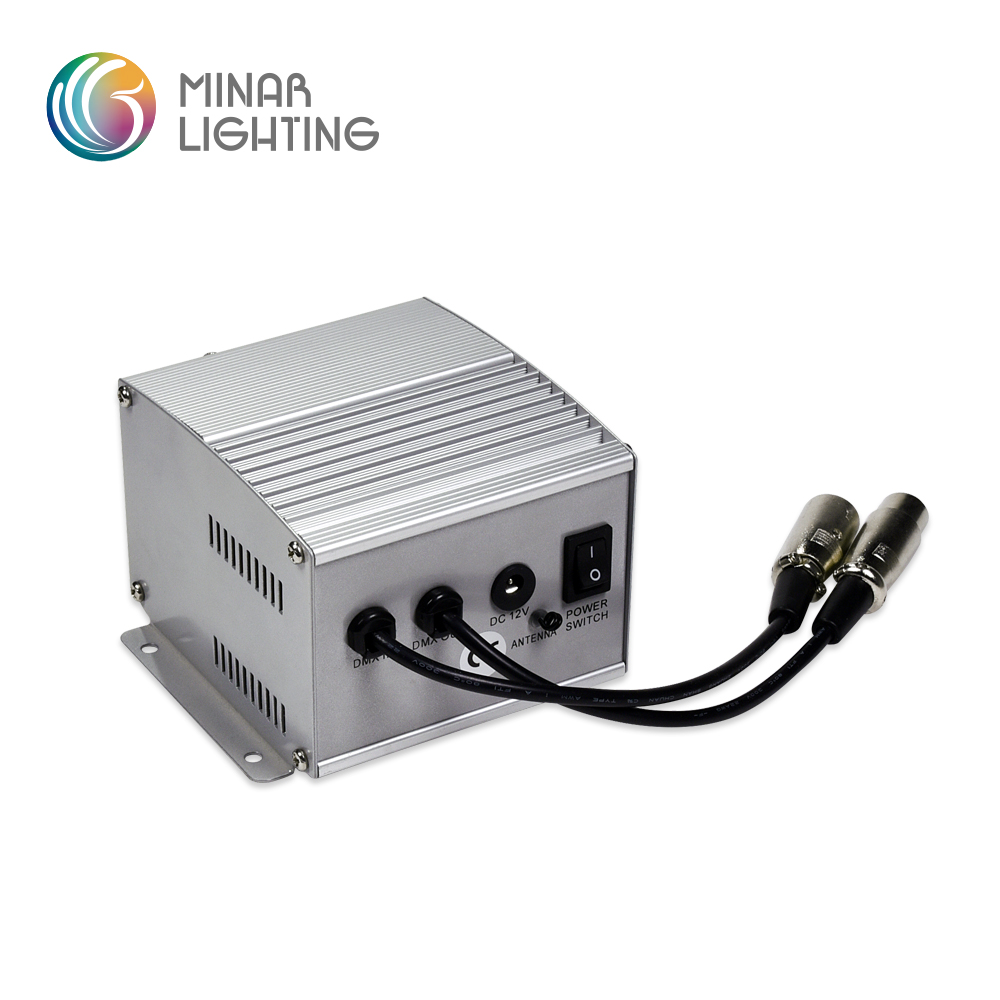

- Master-Slave Control

  Multiple units of the DMX512 light engines can be connected as a group via DMX signal cables to run the master-slave control mode. In master-slave control mode, there will be one and only one master light engine, and all the rest will be set as slave machines. The master runs the built-in program with or without the remote control, and all slave machines will automatically follow to have a synchronous or progressive effect.
- Wheels/Discs

  By default, a 6-color wheel has been assembled in the light engine.

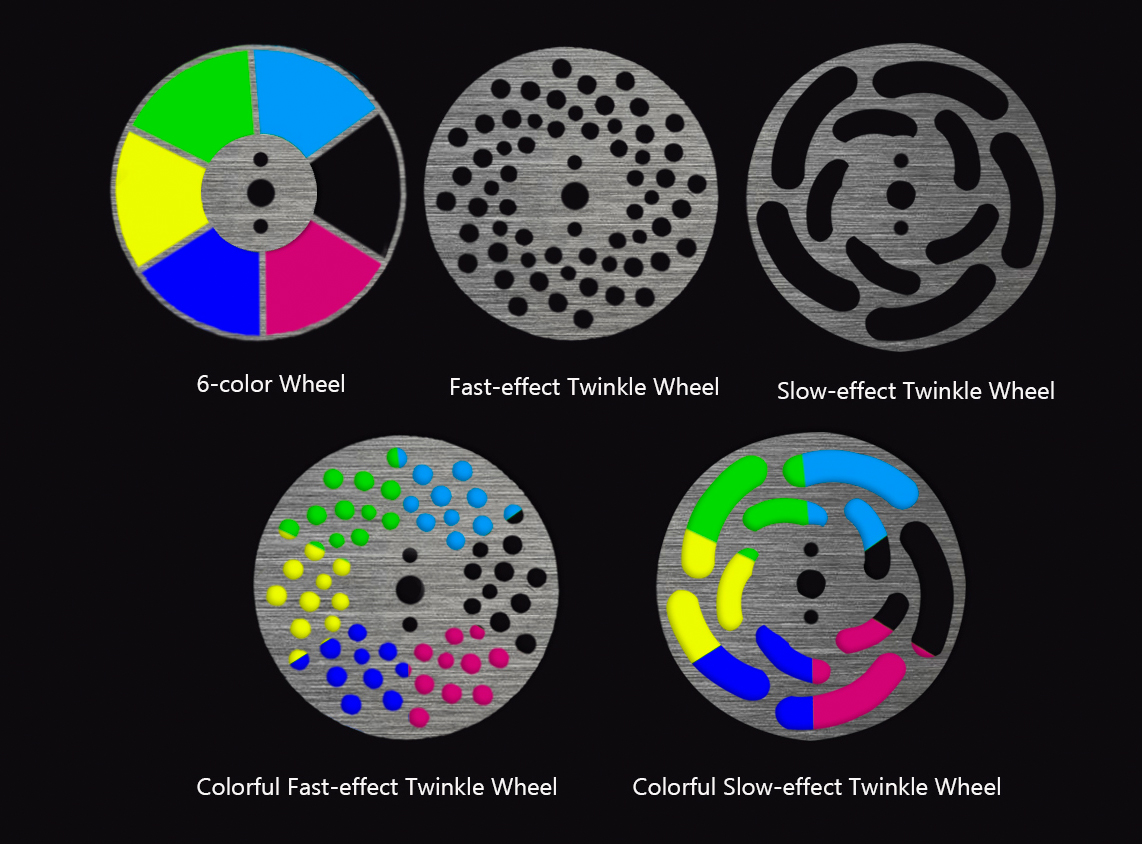

  The wheels/discs that could be equipped into LEA-501DMX fiber optic light engine, from left to right and top to bottom:
  1. 6-color wheel,
  2. Fast-effect twinkle wheel,
  3. Slow-effect twinkle wheel,
  4. Fast-effect colorful twinkle wheel,
  5. Slow-effect colorful twinkle wheel.

  Other wheels/discs are available at request, and customized requirement is also welcome.

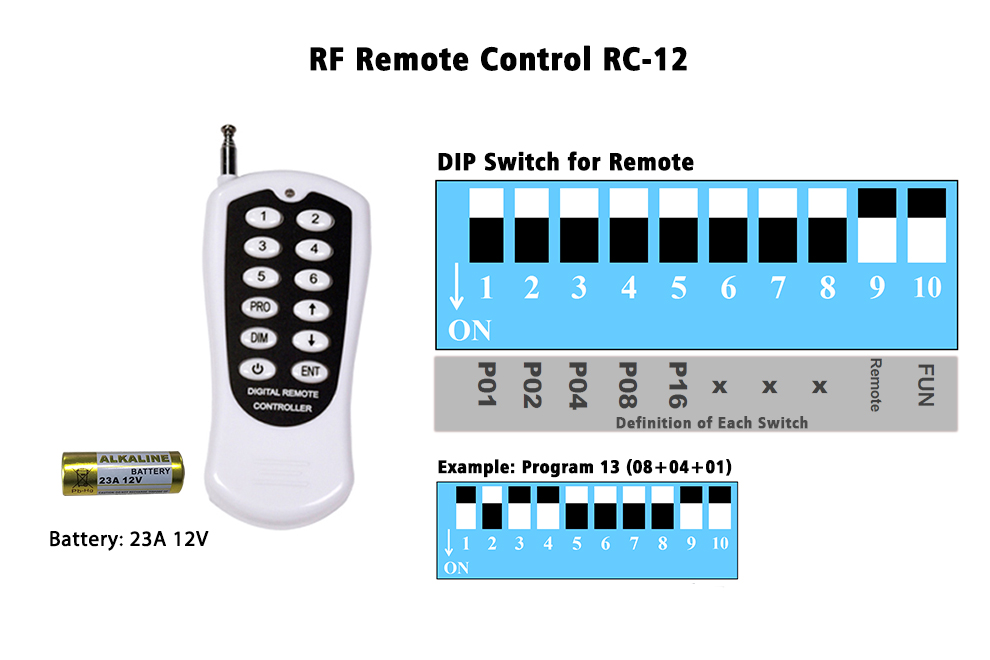

- Remote Control & DIP Switches

  LEA-501DMX has 17 built-in programmes, which can be selected by the DIP switches and the remote control (SW9 & SW10 ON).

  The 12-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 12-key remote control (optional):
  1、Switching the machine on and off.
  2、Selecting the built-in programs.
  3、Dimming.

  Battery: 23A 12V, 1pc (not included in the package).

SPECIFICATIONS

Specification:

Item Number

Standard

Aperture

Optional

Aperture

Maximum Fiber Capacity

(0.75mm fiber tails)

Housing

Material

Housing

Color

Dimensions

(mm)

Optional

Remote Control

LEA-501DMX

14mm

18mm

450pcs

Aluminum

Silver

L125XW125XH80

RC-12

Electrical Parameters:

Working Voltage	Power Consumption	Input Voltage	Adapter Power
12V	8W	100V-240V ac	12V/1A

LED Parameters:

LED Power	LED Color	Color Temperature	Colour Temperature Options	Luminous Flux	Life Span
5W	White	6000K	3000K/4000K	500lm @ 6000K	50000h

Control:

1	DIP Switches
2	Remote Control (optional)
3	Master-slave
4	DMX Control

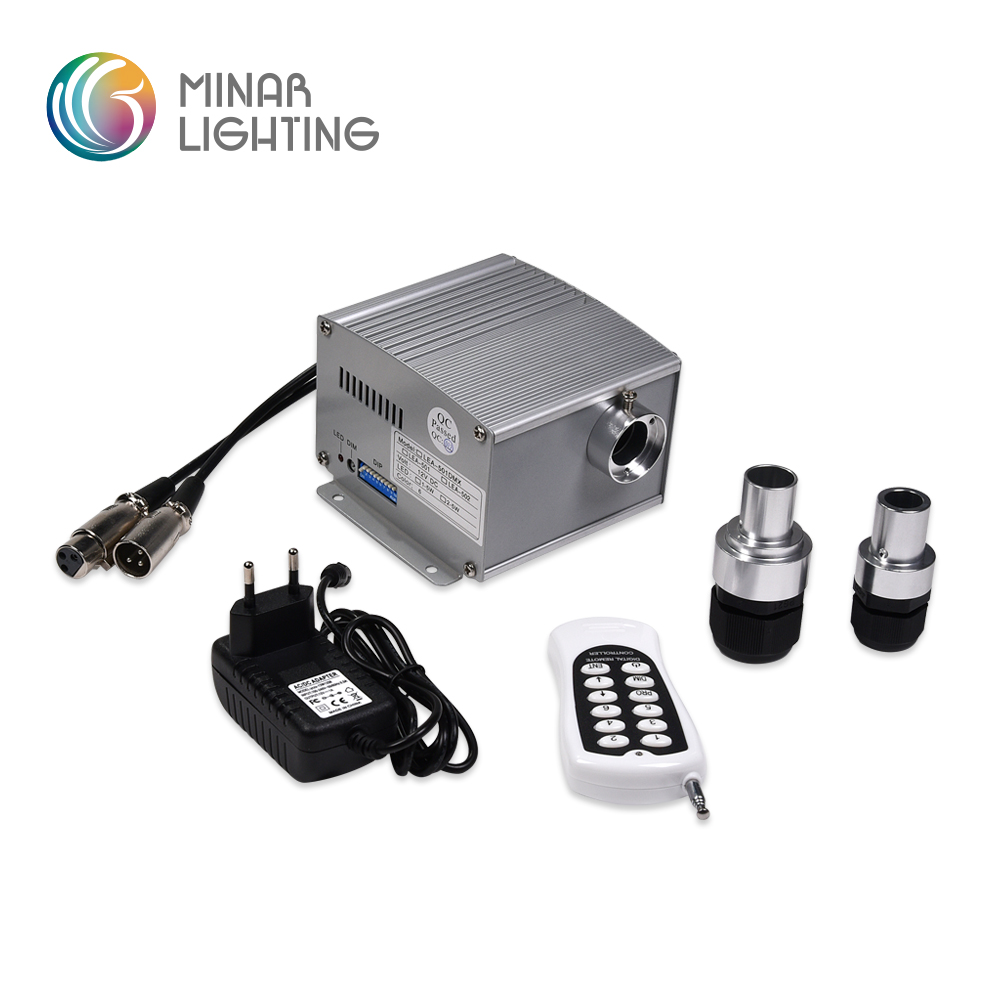

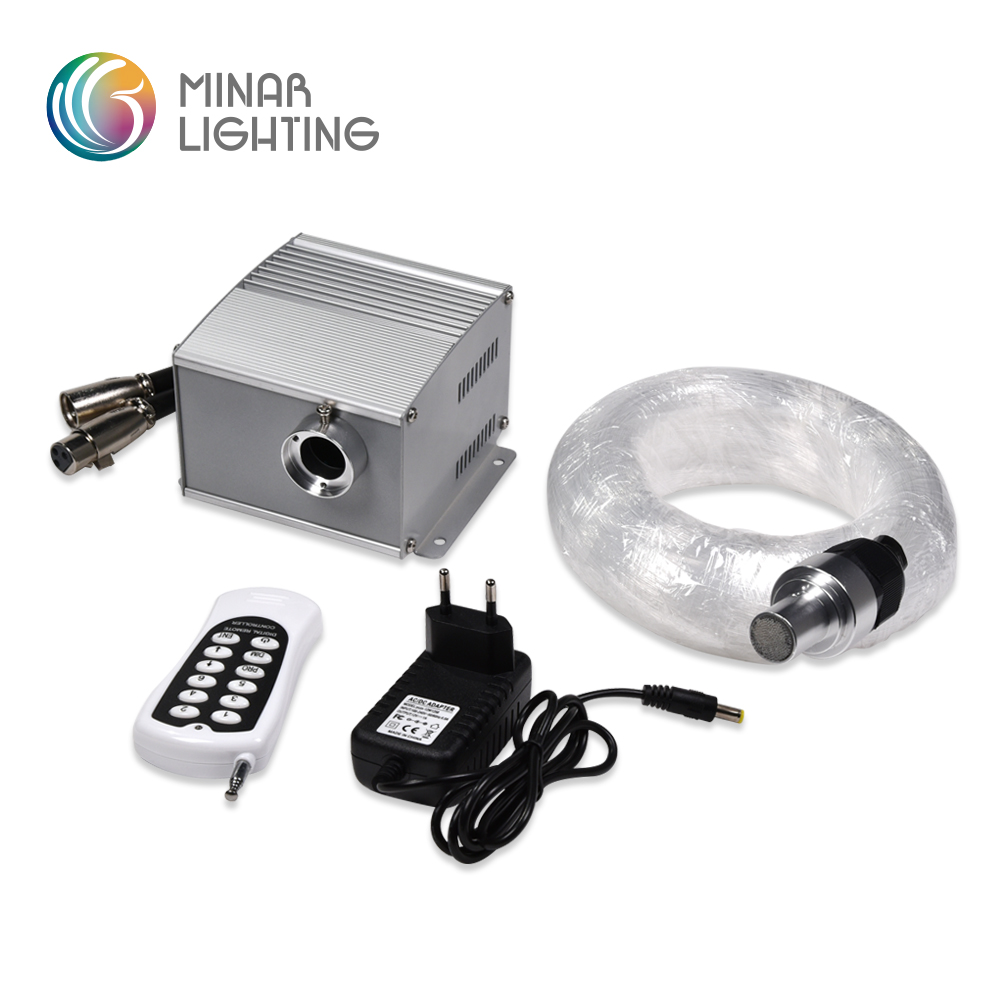

Spare Parts in the Package:

No.	Item	Quantity
1	a 6-color Wheel (built-in)	1
2	14mm Fiber Connector	1
3	AC-DC Adapter	1
4	DMX512 Signal Cable	1

Optional Parts:

No.	Item
1	12-Key RF Remote Control
2	Fast-Effect Twinkle Wheel
3	Slow-Effect Twinkle Wheel
4	Colorful Fast-Effect Twinkle Wheel
5	Colorful Slow-Effect Twinkle Wheel
6	18mm Fiber Connector
