LLE-003

LLE-003 has 8 built-in programmes, which can be selected by the DIP switches.

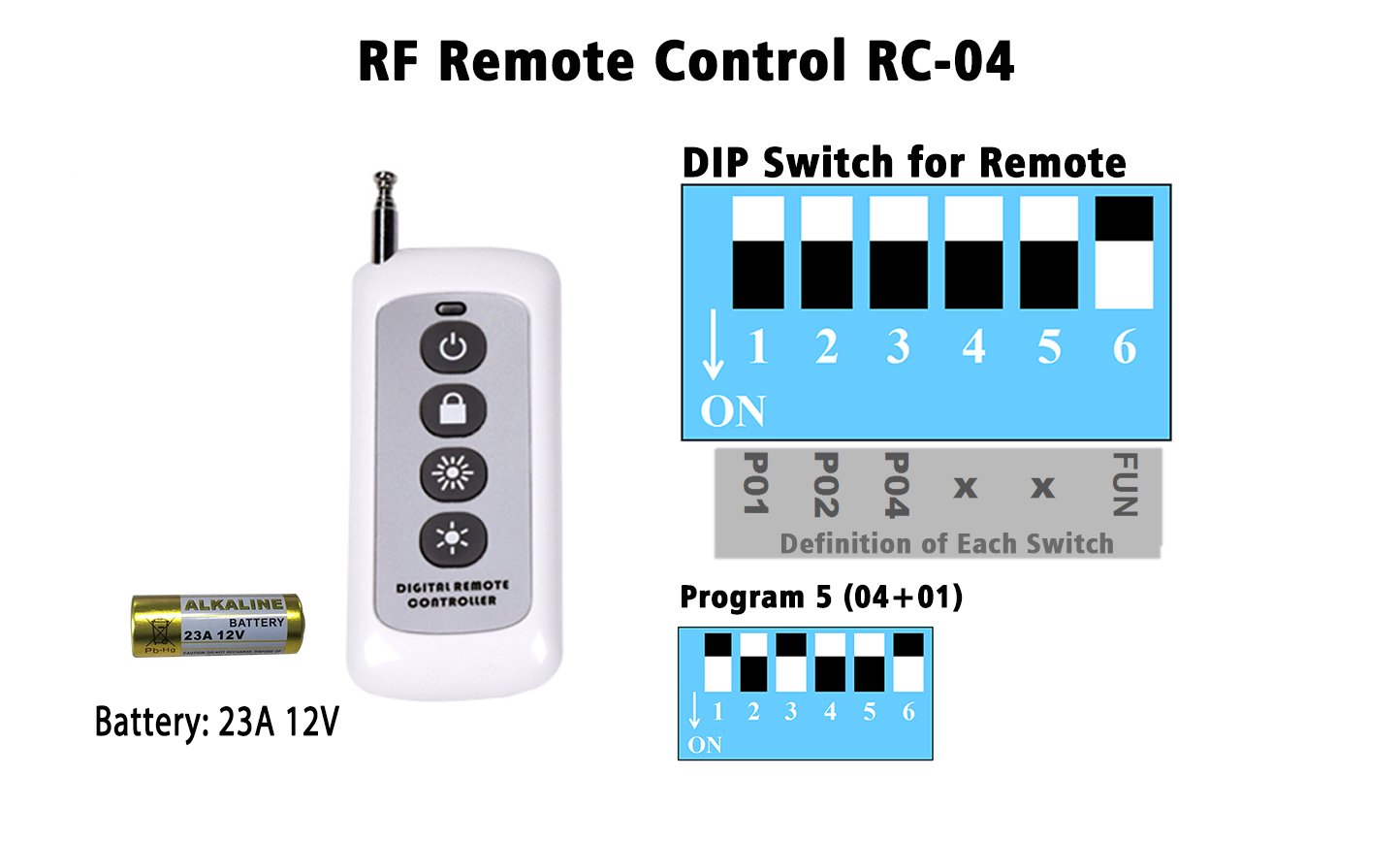

The 4-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 4-key remote control (SW6 ON):
1. Turn on the light engine,
2. Turn off the light engine,
3. Fix the emitting color,
4. Dimming.

Battery: 23A 12V, 1pc (not included in the package).

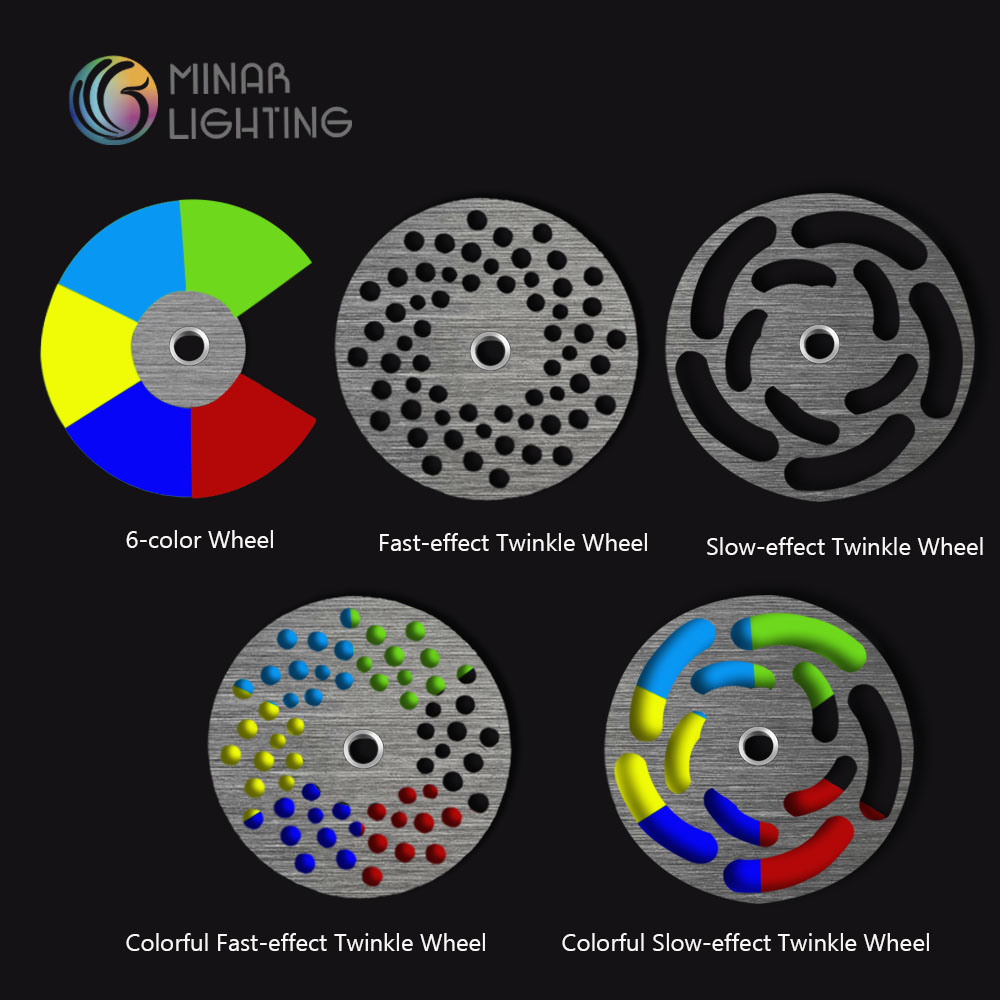

The wheels/discs that could be equipped into LLE-003 fiber optic light engine, from left to right and top to bottom:
1. The 6-color wheel
2. The fast-effect twinkle wheel,
3. The slow-effect twinkle wheel,
4. The colorful fast-effect twinkle wheel,
5. The colorful slow-effect twinkle wheel.
The default wheel is the 6-color disc. Other wheels/discs are available at request, and the customized requirement is also welcome.

By default Minar provides one piece of 14mm fiber connector for most of the low-voltage light engines. A fiber connector of this aperture is capable of 250pcs of 0.75mm fiber tails. At request, an 18mm fiber connector is also available which is capable of 450pcs of 0.75mmm fiber tails.

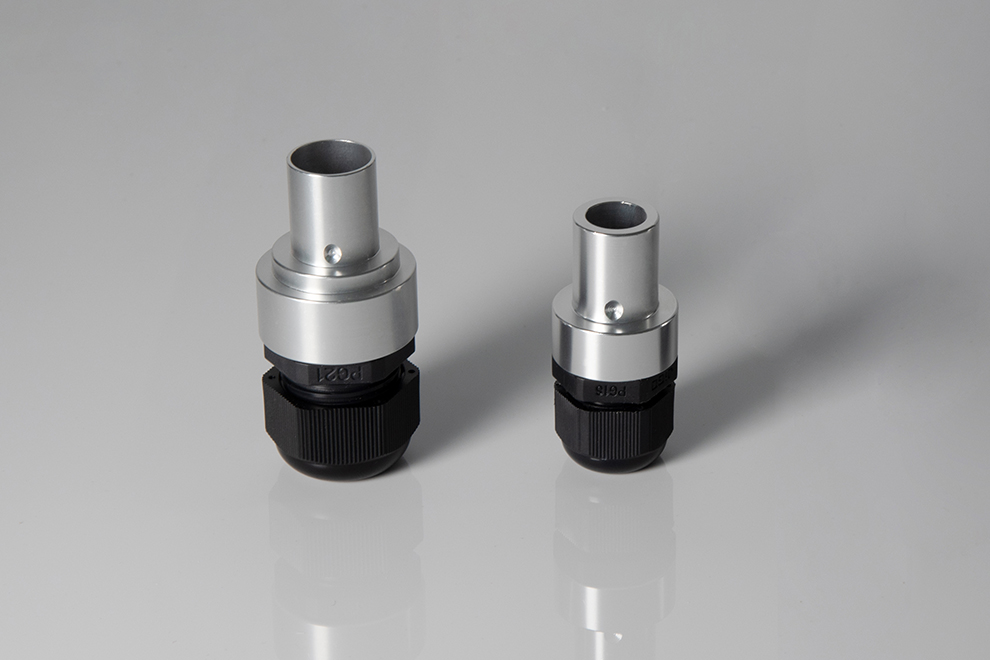

From left to the right, the fiber connector: 18mm, 14mm.

Fiber connectors of customized apertures are also welcome!

Low voltage fiber optic light engines are generally packaged in neutral color boxes. One unit of the fiber optic machine is packed in a color box. 8 to 10 color boxes are packed in an export carton.
