Specifications:

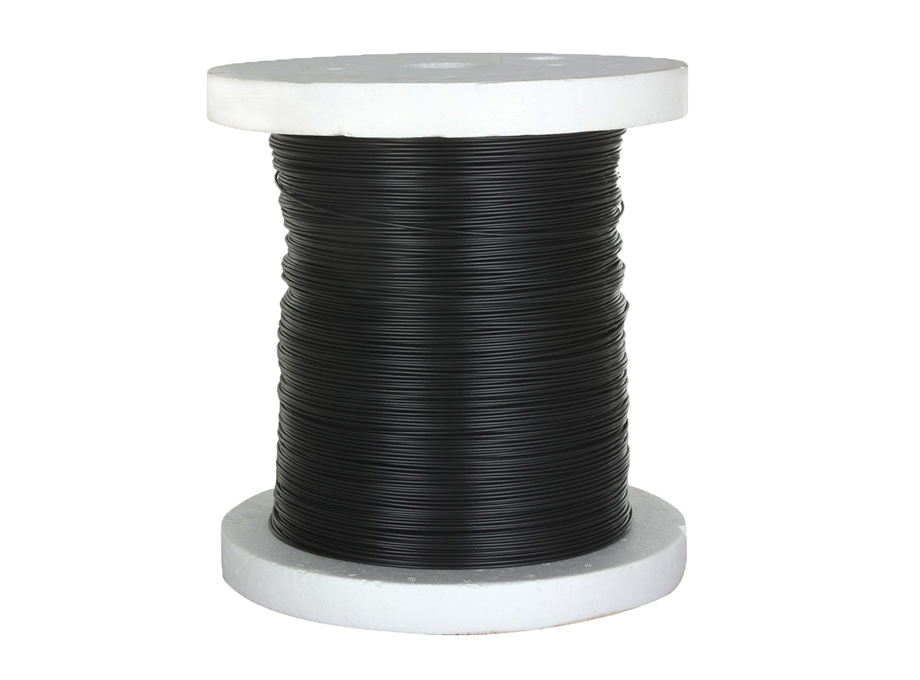

Category | Ordering Code | Inner Diameter (mm) | Outer Diameter (mm) | Spool Length (m) | Attenuation (dB/M) | Minimum Bend Radius (mm) |

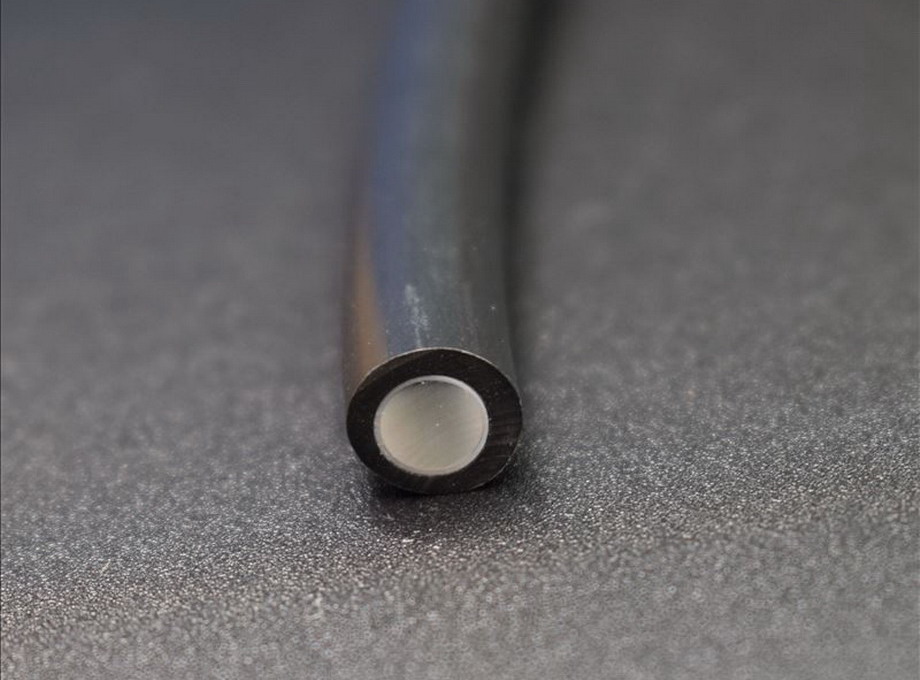

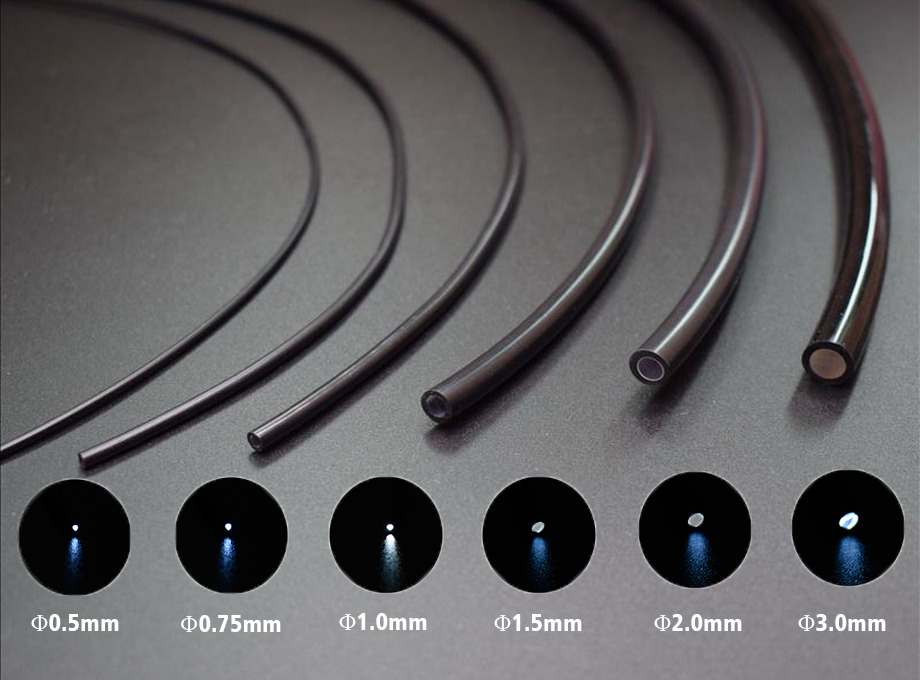

Sheathed Mitsubishi End Glow Plastic Optical Fiber | PEOF-0.5/CK | 0.5 | 1.3 | 6000 | ≤0.2 | 10 |
PEOF-0.75/CK | 0.75 | 1.6 | 5400 | ≤0.2 | 15 | |
PEOF-1.0/CK | 1.0 | 2.2 | 3000 | ≤0.2 | 25 | |
PEOF-1.5/CK | 1.5 | 2.5 | 1400 | ≤0.2 | 40 | |
PEOF-2.0/CK | 2.0 | 3.0 | 1000 | ≤0.2 | 80 | |
PEOF-2.5/CK | 2.5 | 3.5 | 750 | ≤0.2 | 100 | |
PEOF-3.0/CK | 3.0 | 4.0 | 450 | ≤0.2 | 100 |
