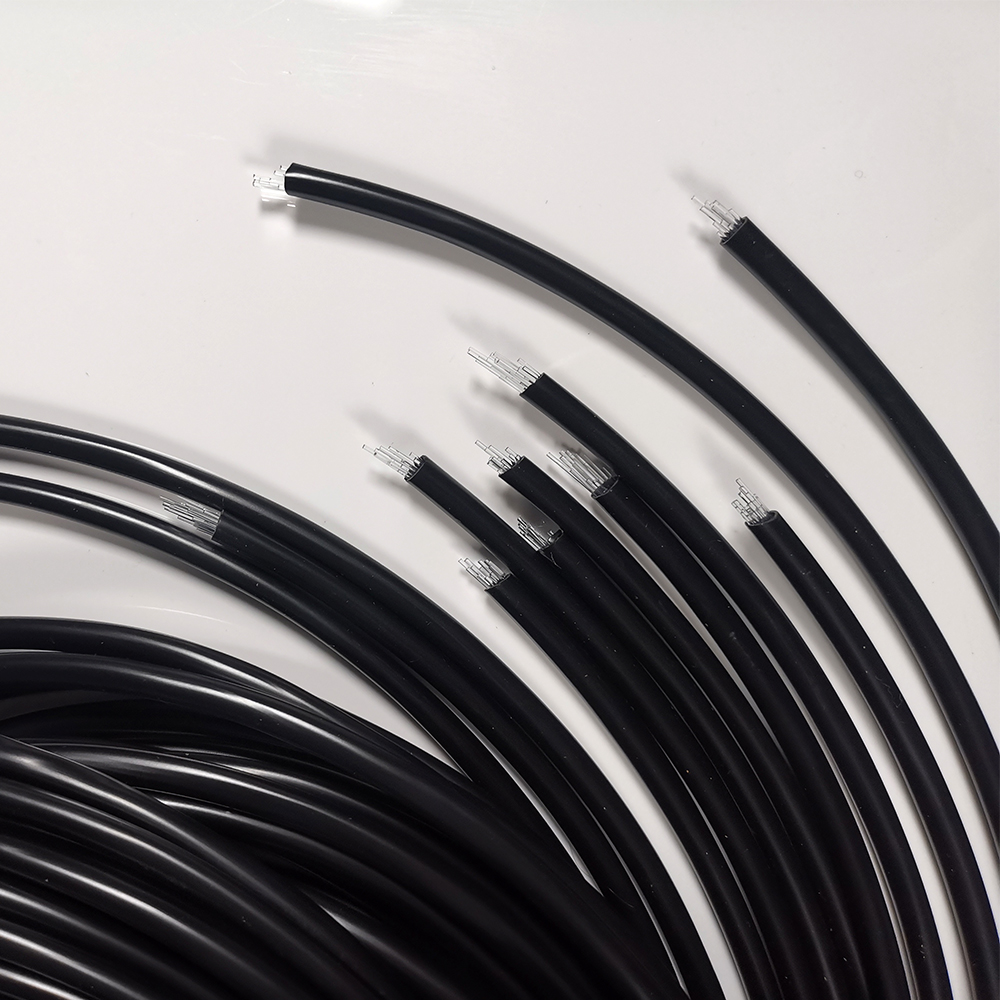

Multi-String Mitsubishi Cable

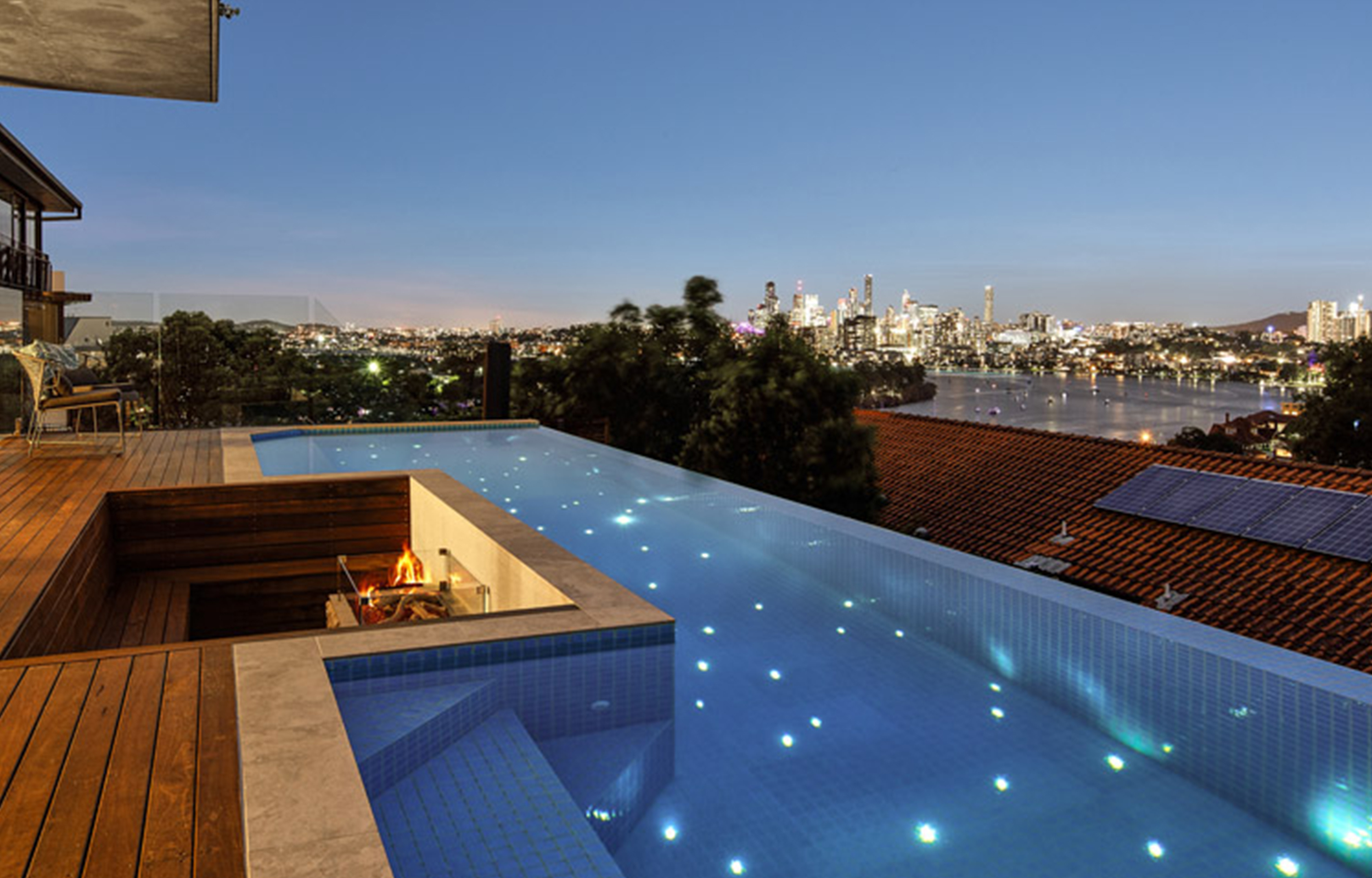

The end glow fiber transmits the light from the illuminator to the far end with no electricity or heat in the fiber cable. Thus it is the perfect choice for you to light up the swimming pools, ponds and pathways with starry effect.

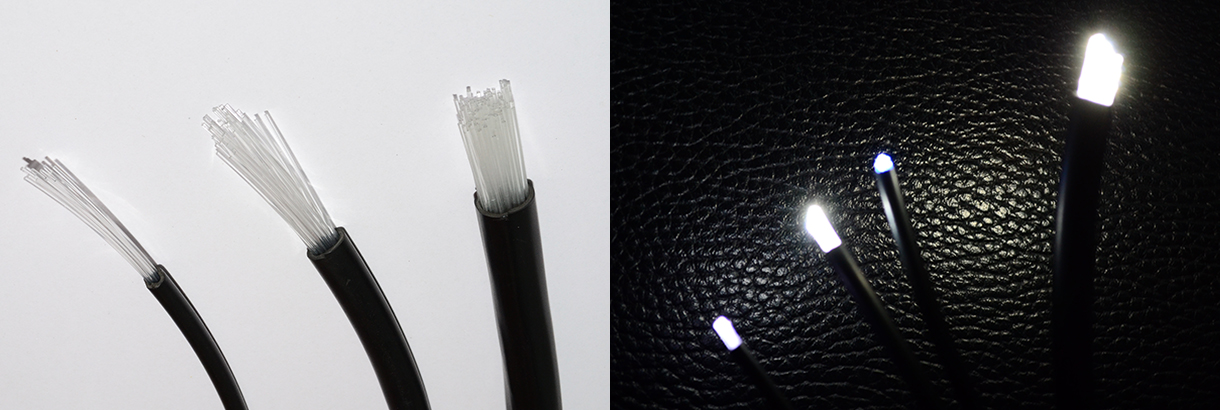

As the fiber only emits the light from the end, together with the power of the light engine, the core diameter and the length of the fiber cable will determine the light intensity of the star point. The longer the fiber cable is, the more powerful light engine and fiber cable of bigger core diameter are needed.

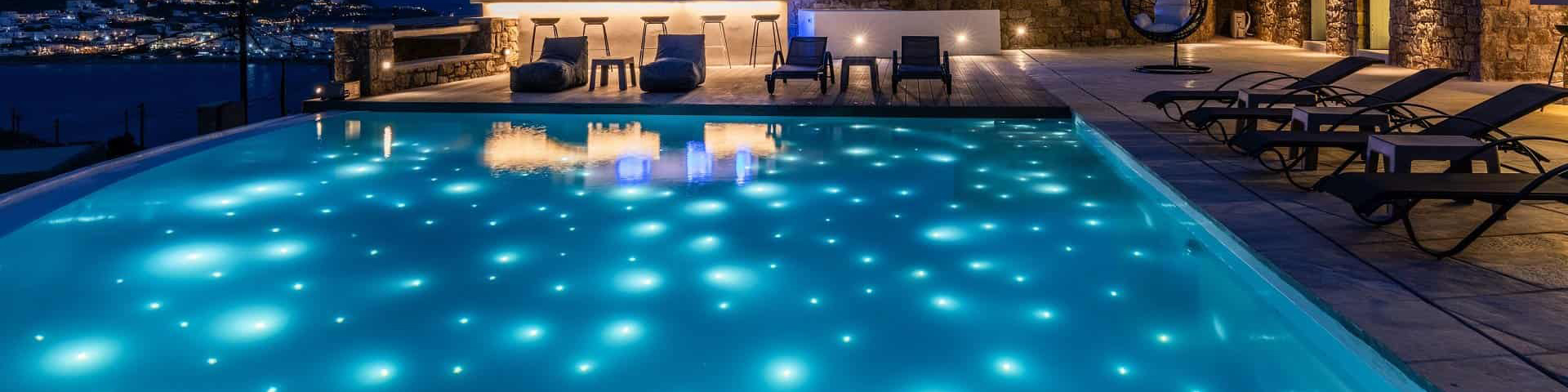

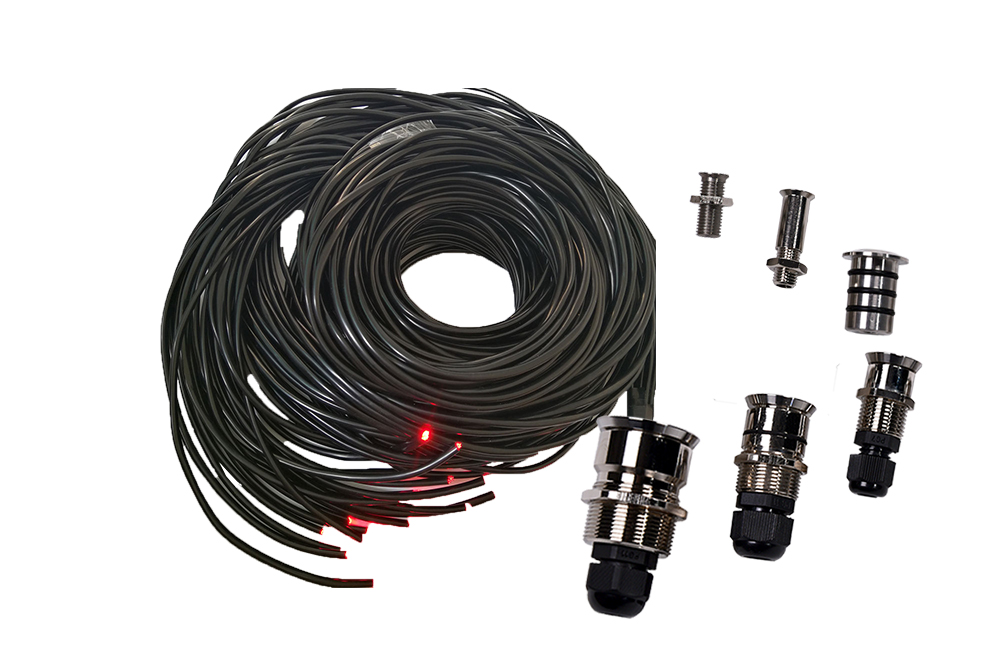

The end fittings produce different light beam angles and diffusion effects through the lens, and are the favorite of the designers. Together with our buried end fittings, the sheathed fiber cable are always used in the wet area lightings and outdoor decoration, such as the swimming pools, steam room, sauna, spas, path way, landscapes etc.

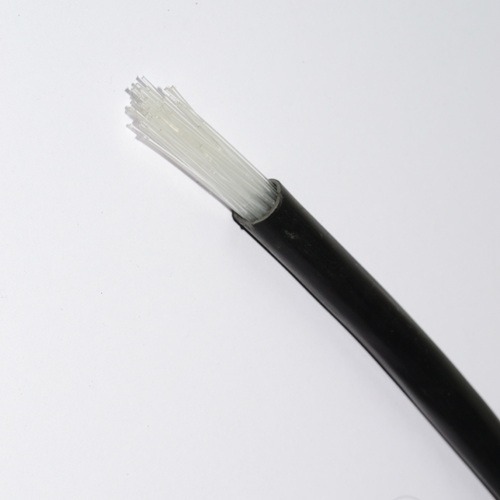

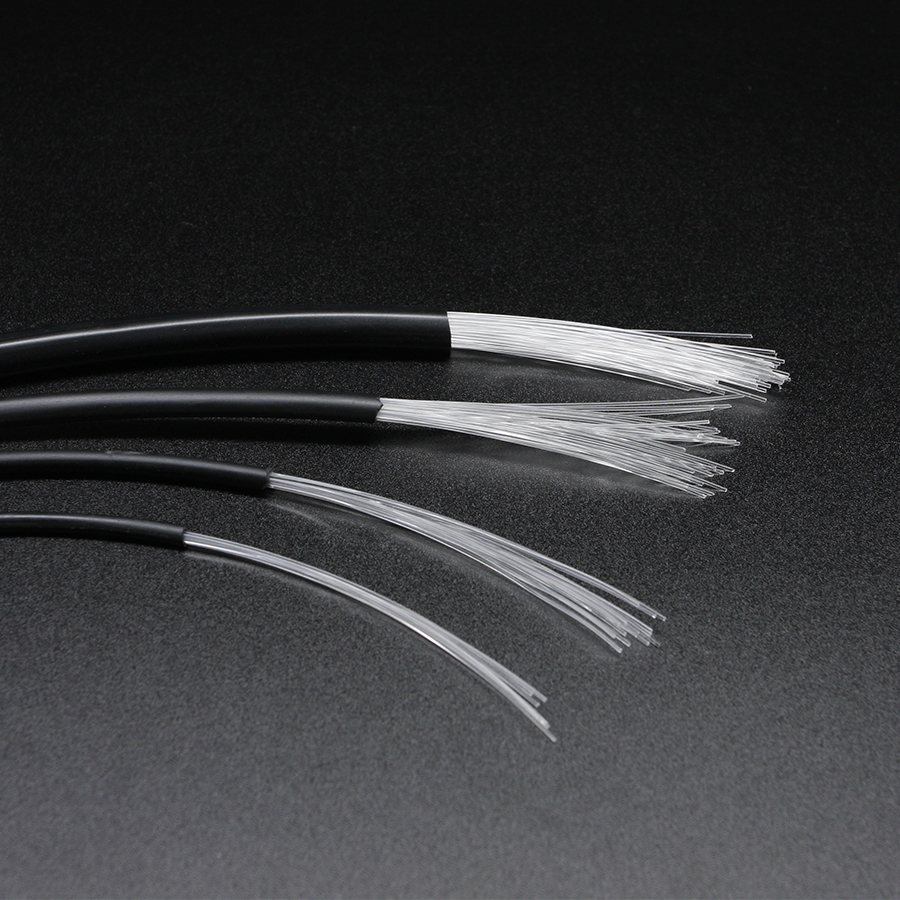

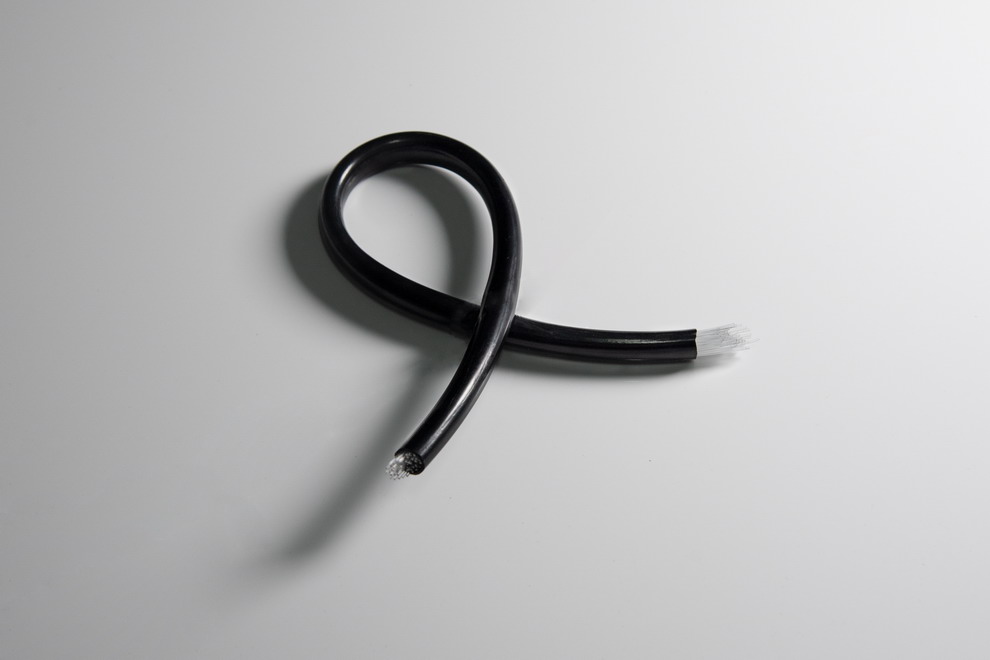

Compared to single-core sheathed fiber cable, the multi-string version is more flexible when the active diameters are the same. This is particularly favorable for installation on site. Usually, MEOF-7*0.75/CK and multi-string fiber cables of larger diameters are recommended instead of the single core ones when the active diameter is 2mm or bigger.

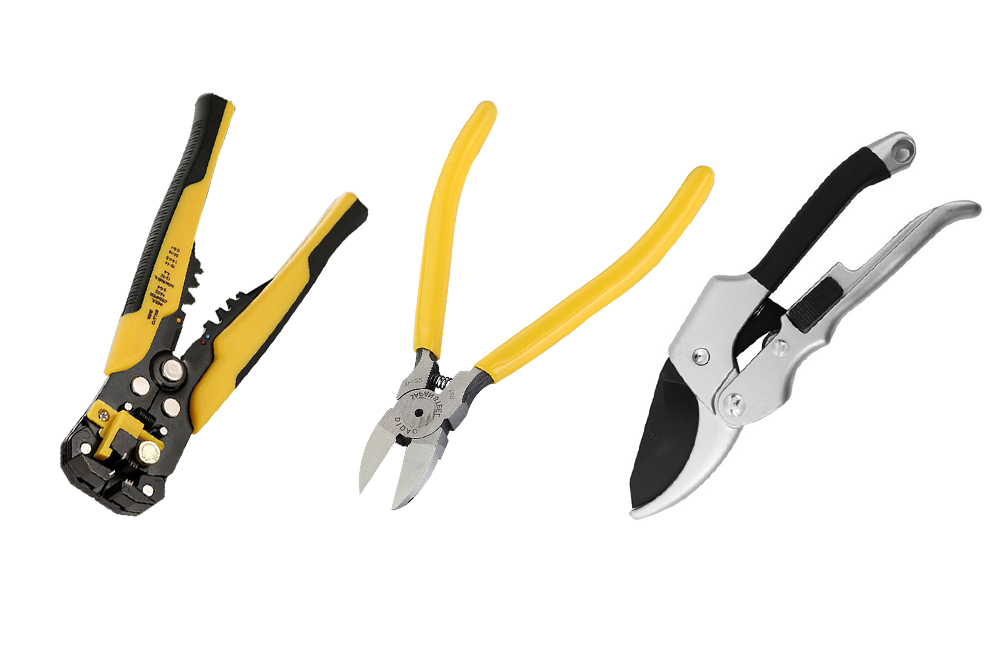

Different wire cutters that are used to peel or cut the sheathed fiber cable.
The left one: To peel off the the sheath,
The middle one: To cut single strand
The right one: To cut the multi-string fiber cable
