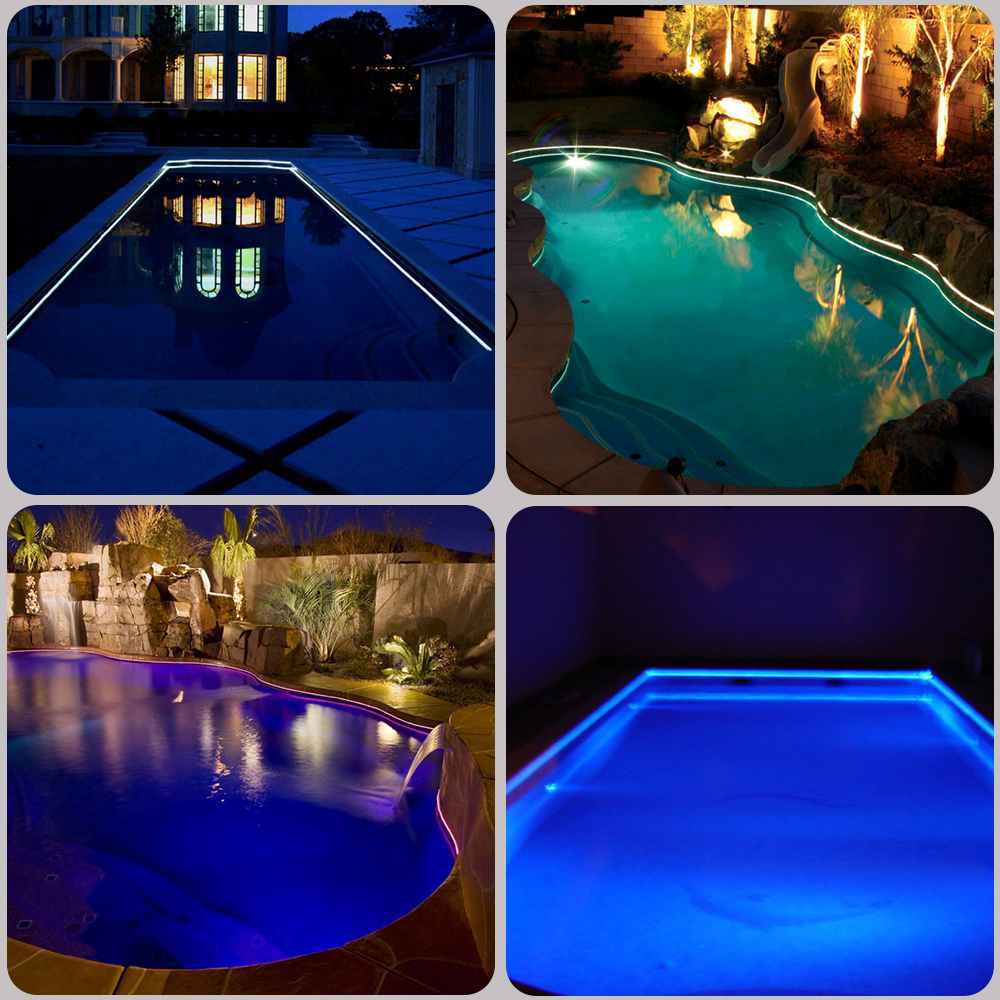

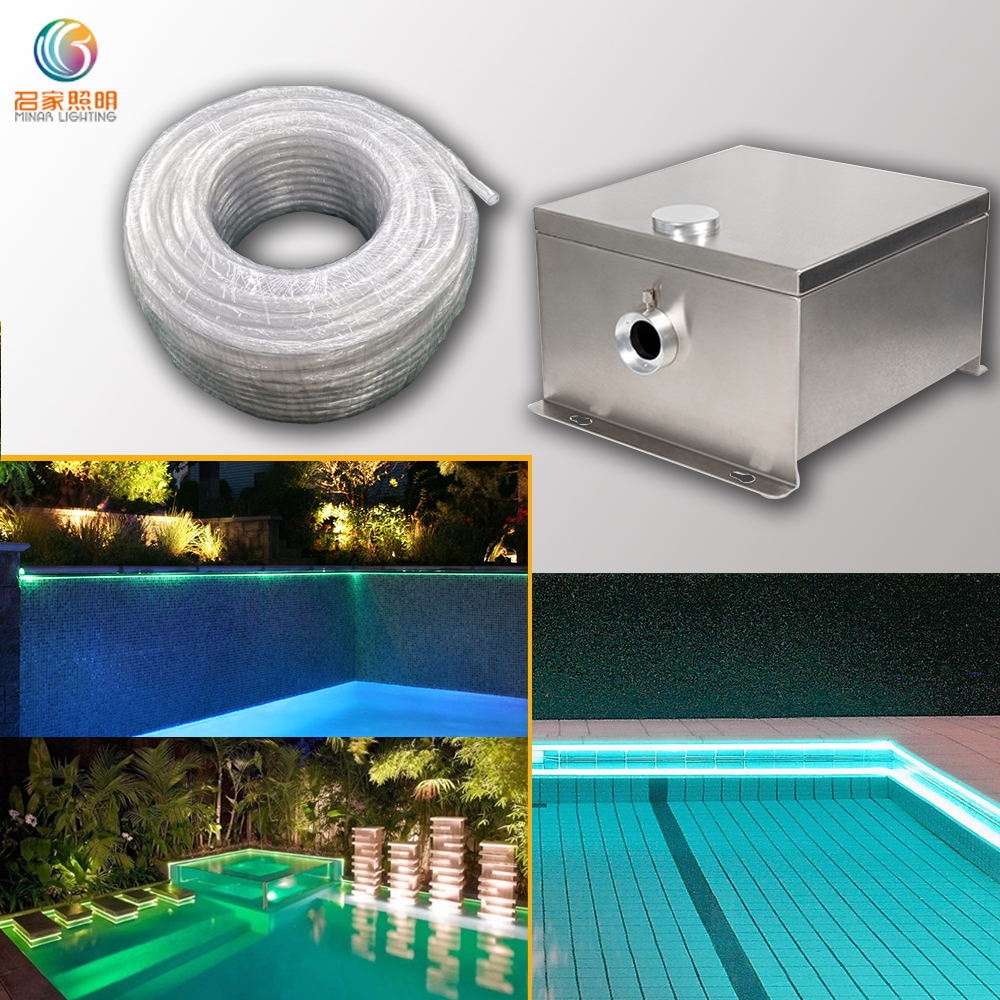

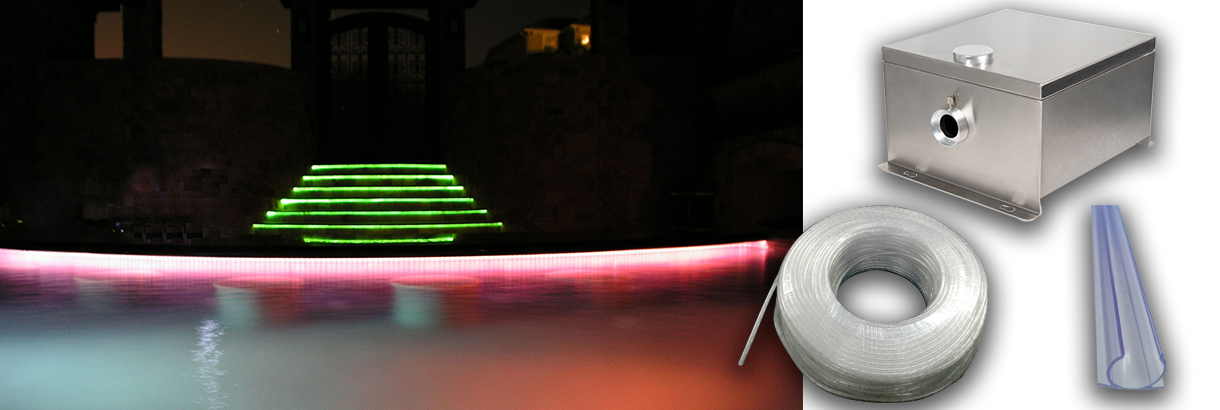

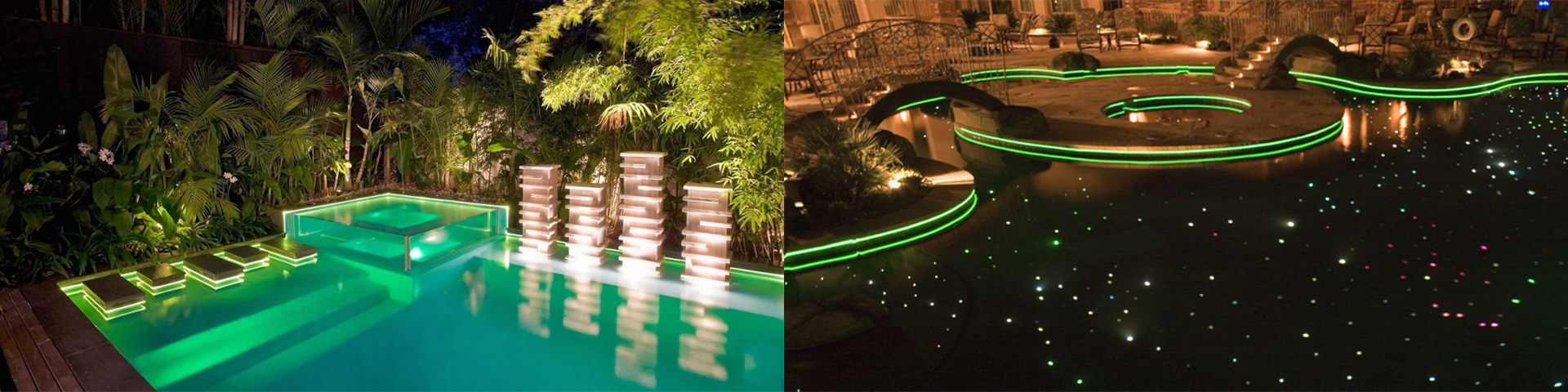

Pool Perimeter Kit

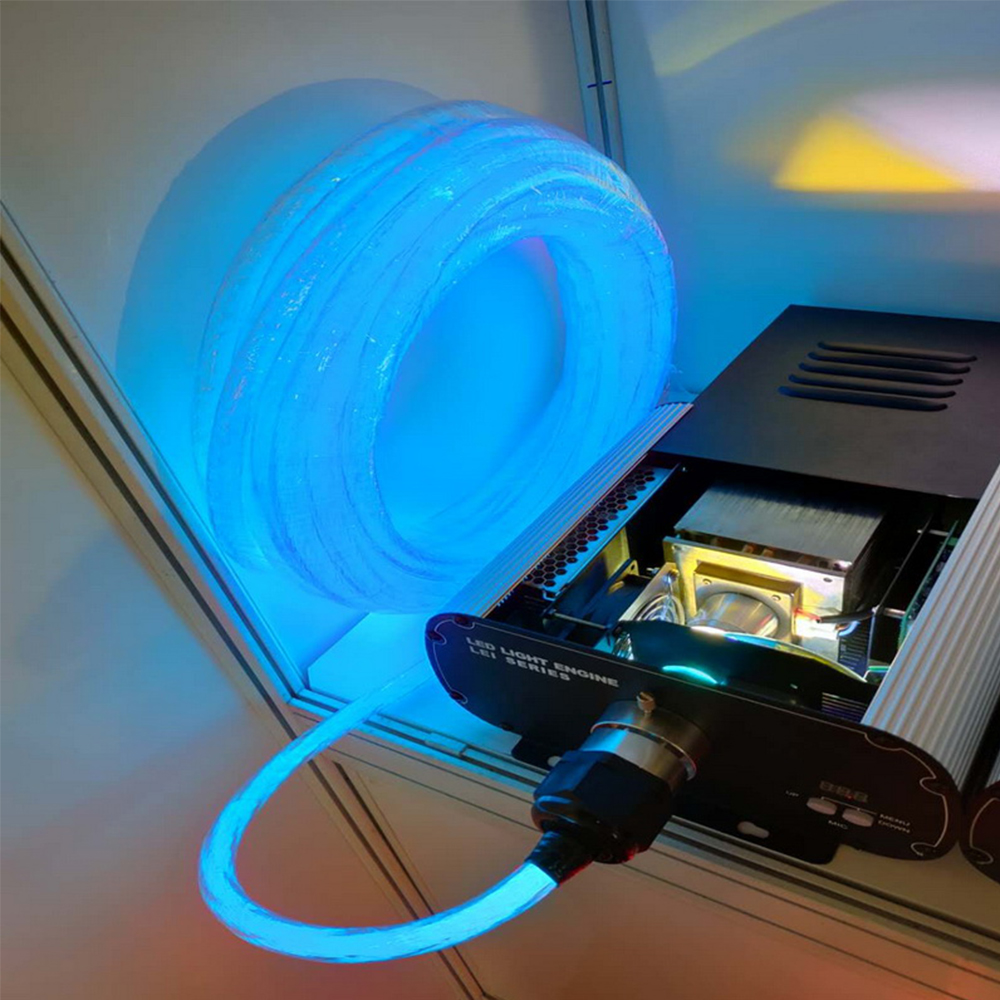

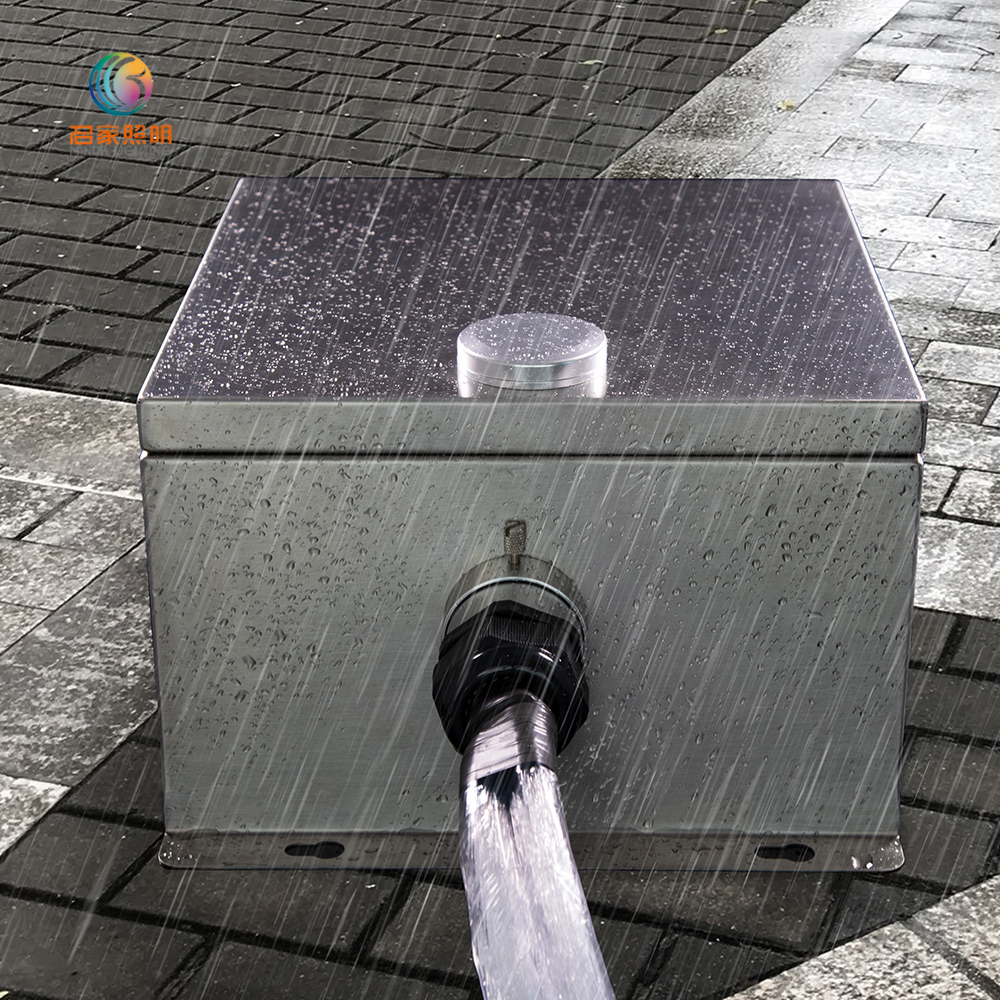

Our LEI series of outdoor light engines range from 50W to 160W with stainless steel housing, from white LED modules with a 6-color wheel to RGBW LED modules with a twinkle wheel.

When multi-units are needed, the DMX512 version is preferred to ensure the synchronous effect.

The maximum port size is 30mm in diameter, which is capable of 650pcs of 1.0mm fiber strands or 10pcs of 8mm solid fiber cable.

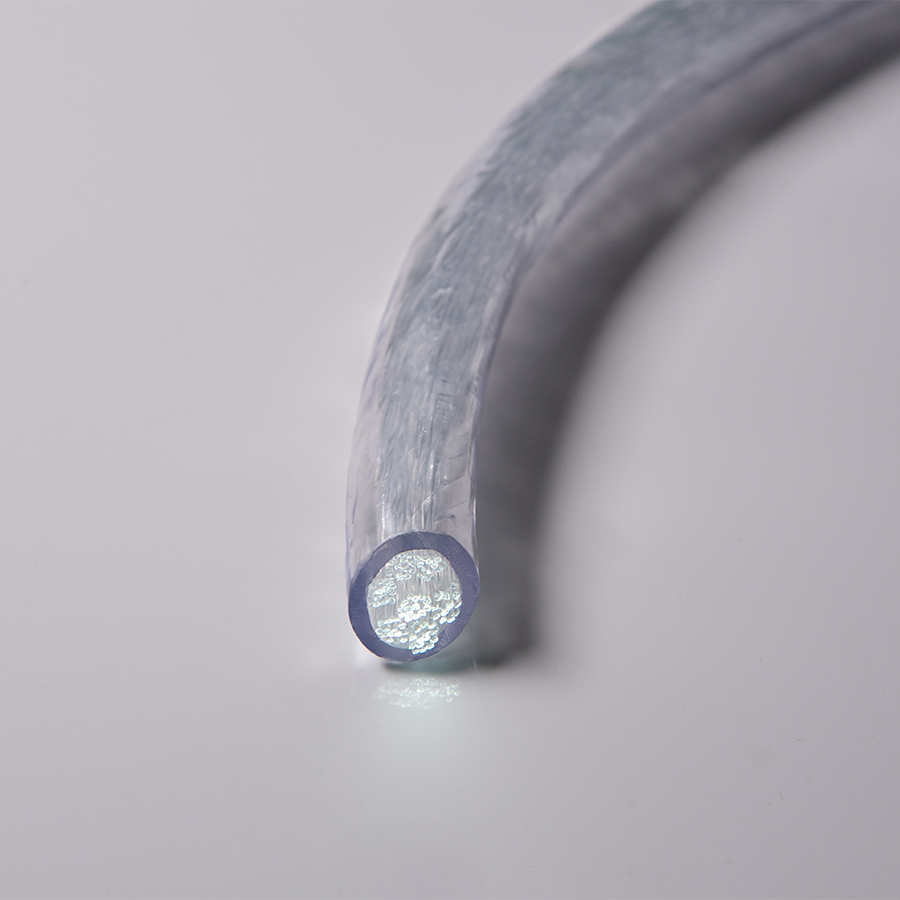

Stranded multi-string side glow fiber cables consist of Mitsubishi SK-40 or CK-30 fiber strands with clear PU sheath. Compared to solid side-glow cable, Stranded multi-string fiber cable has two advantages:
1. Longer length powered by the same light engines,
2. Outdoor use.

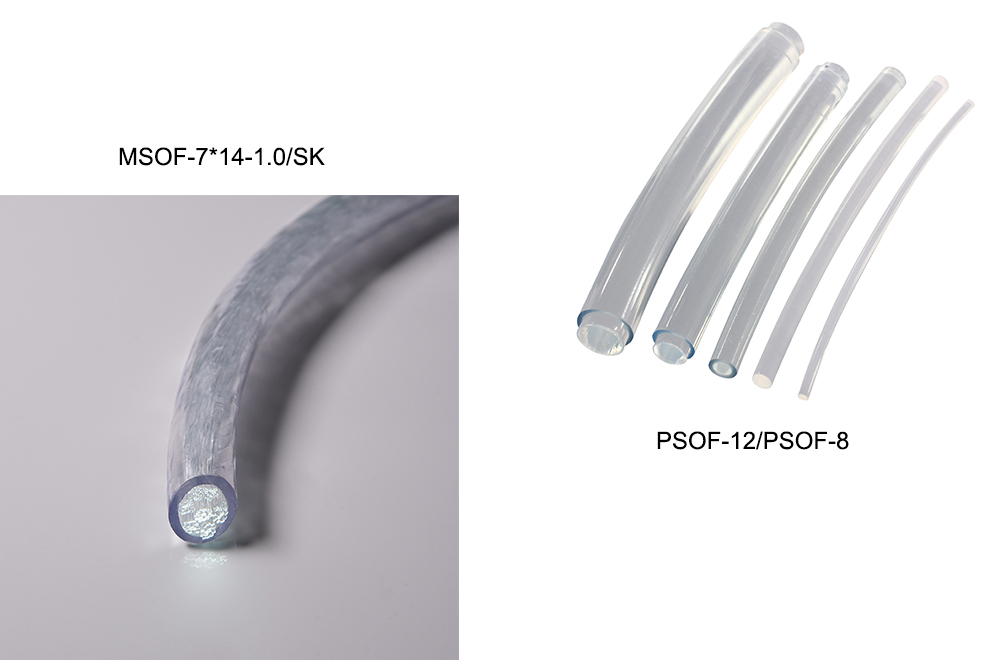

MSOF-3*14-1.0/SK, Φ12mm, a continuous length is upto 35meters powered by a 130W light engine, while solid type, PSOF-8 of Φ11mm, is 15 meters.

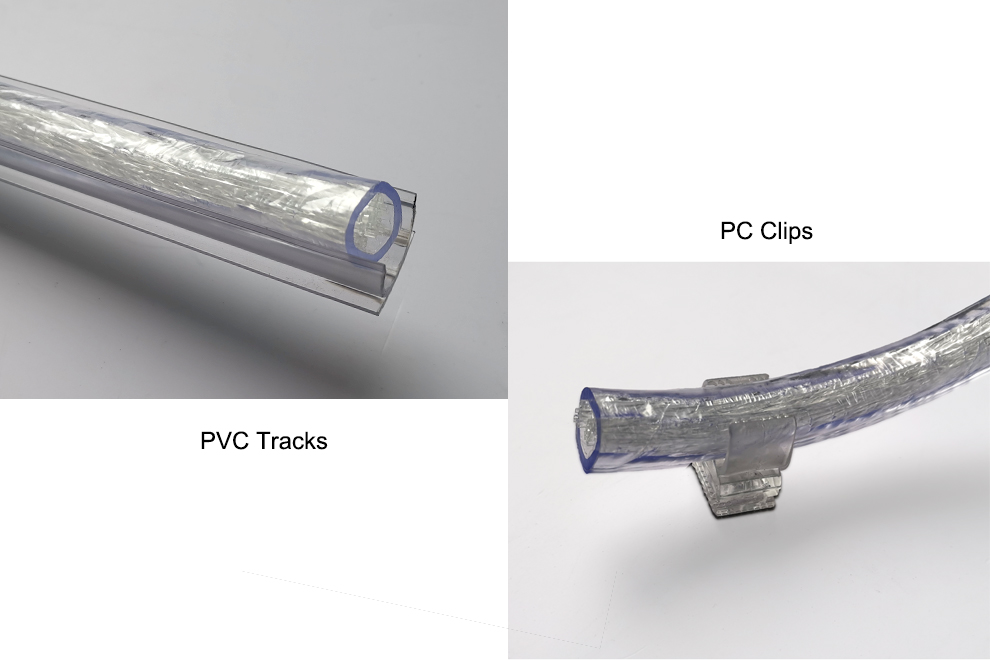

The tracks and clips provide permanent & semi-permanent options for affixing fiber cable to a variety of indoor and outdoor surfaces.

The PVC tracks or channels are like a framework, guiding the direction of the fiber optic light meter by meter. The track is commonly used for straight paths and results in a highly professional look. It can be screwed into the hanging surface or applied with an adhesive.

The PC clips can be screwed into many surfaces and have small rigid teeth for an extra firm grip. It is designed to direct the fiber cable in tight spaces, curvy areas, and corners.
