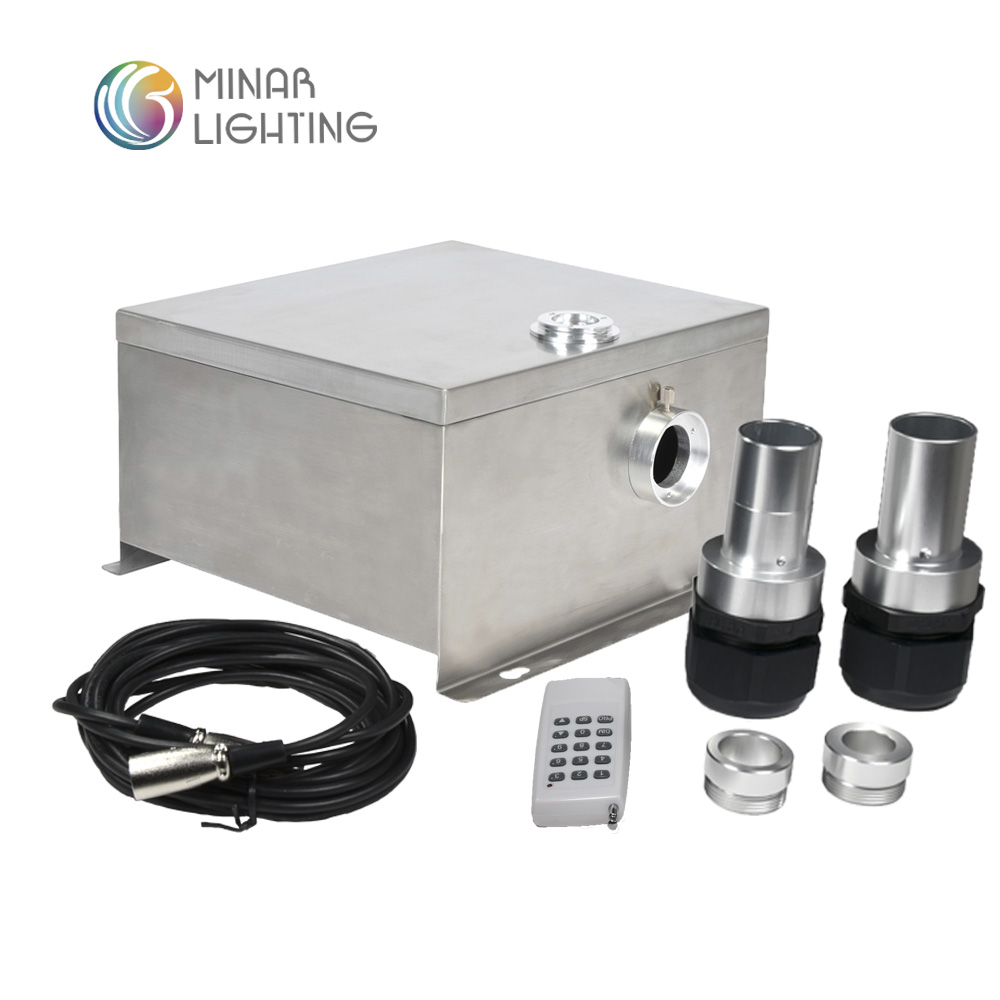

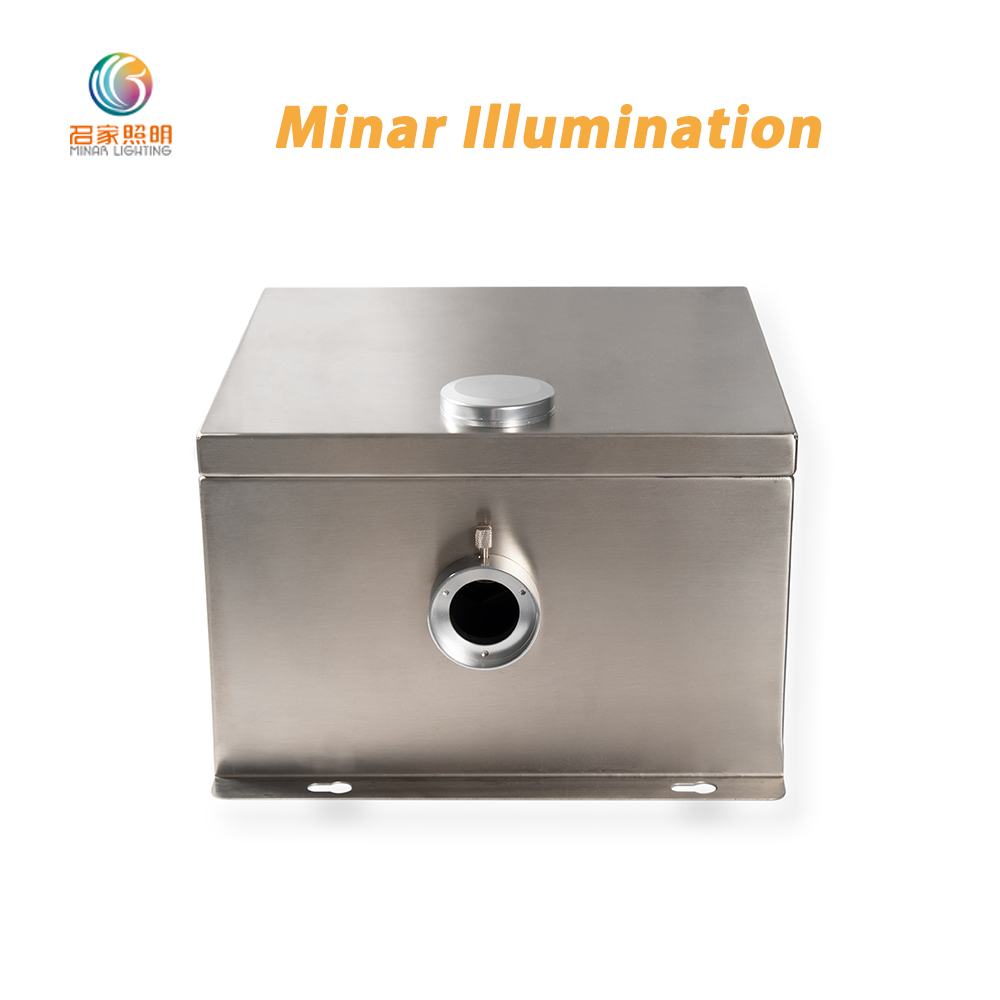

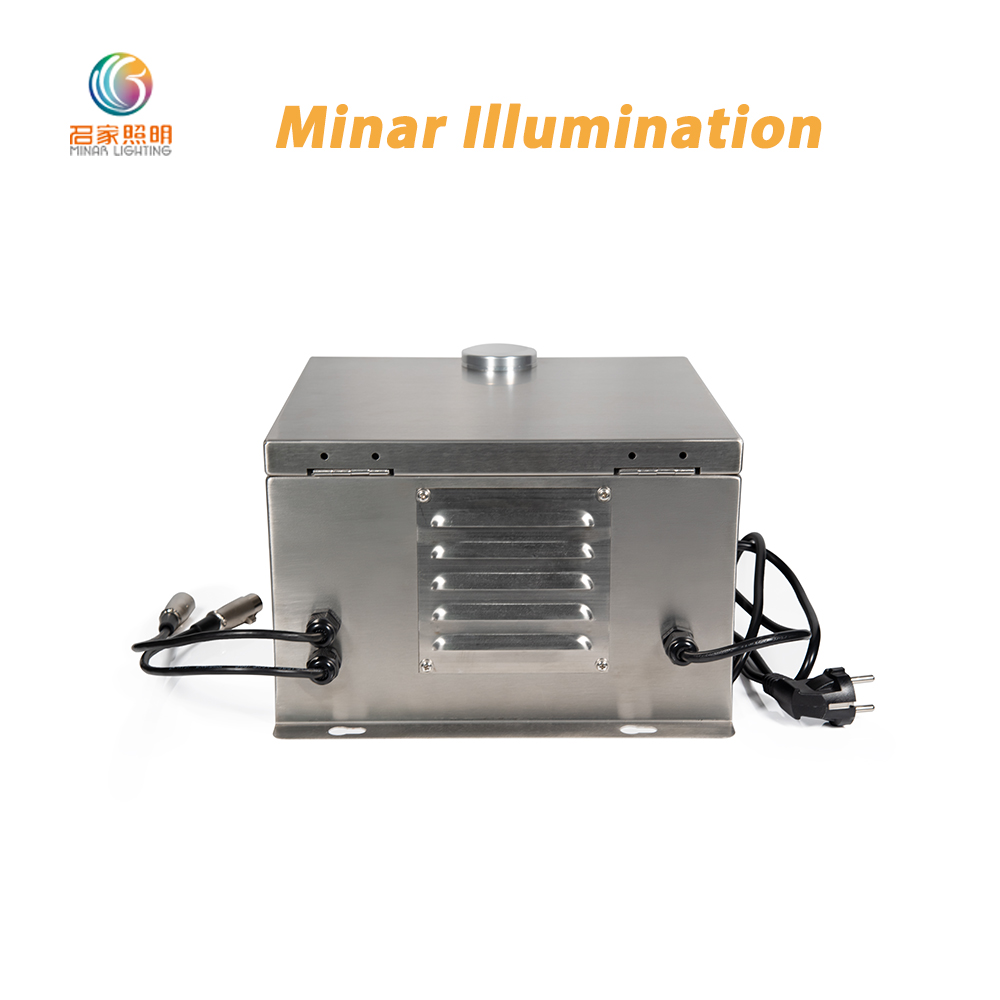

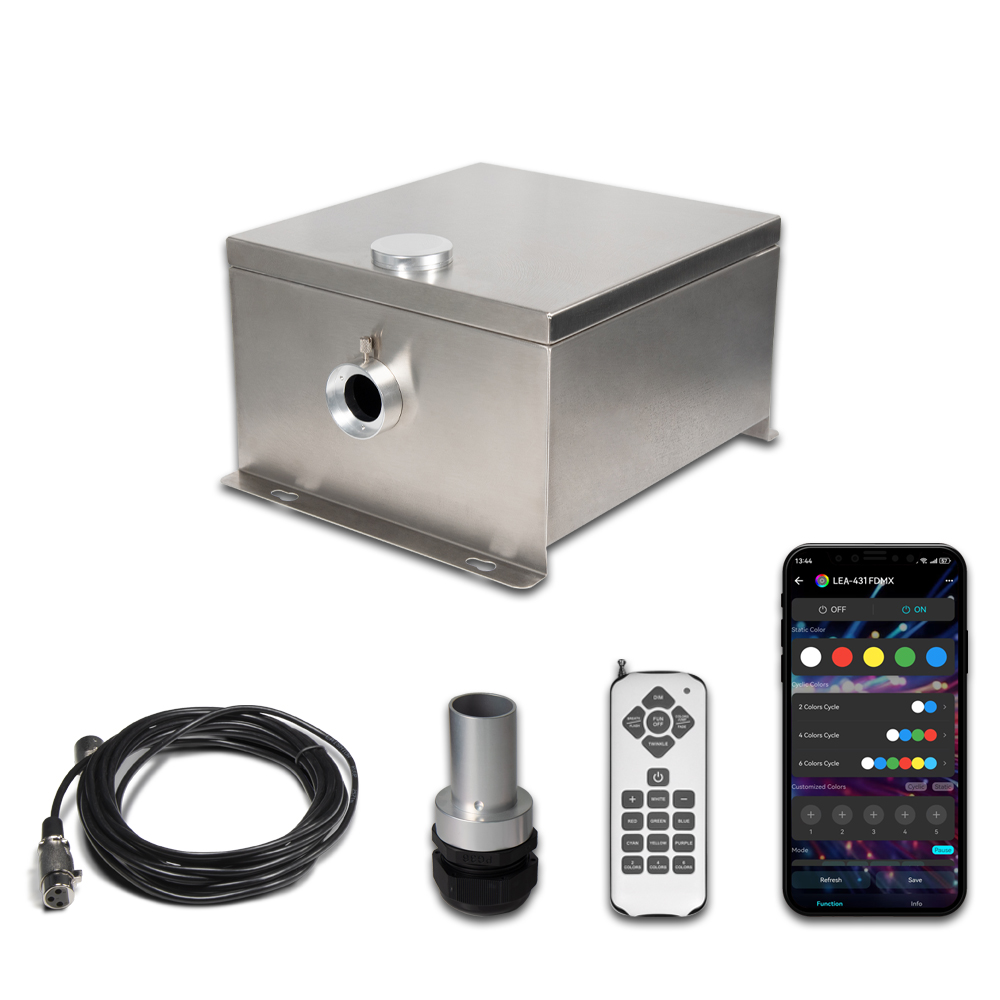

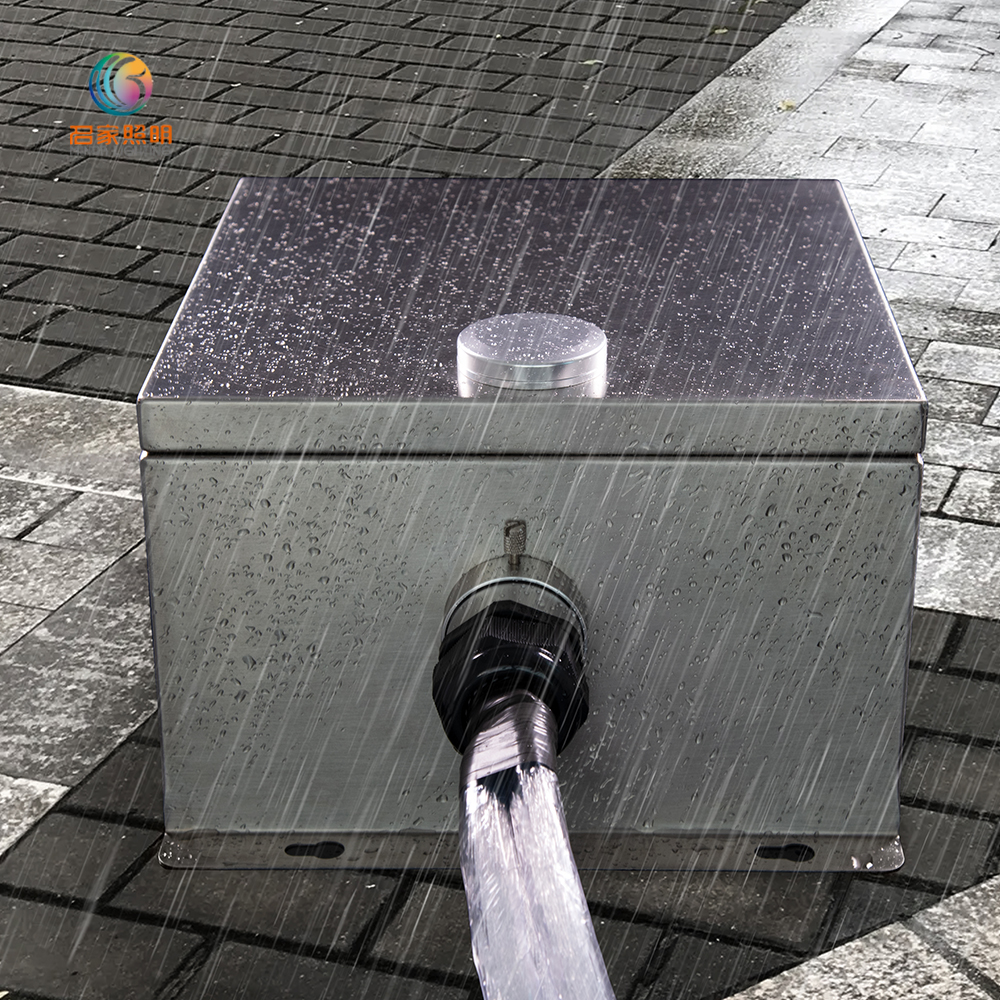

LEI-4361DMX/WP

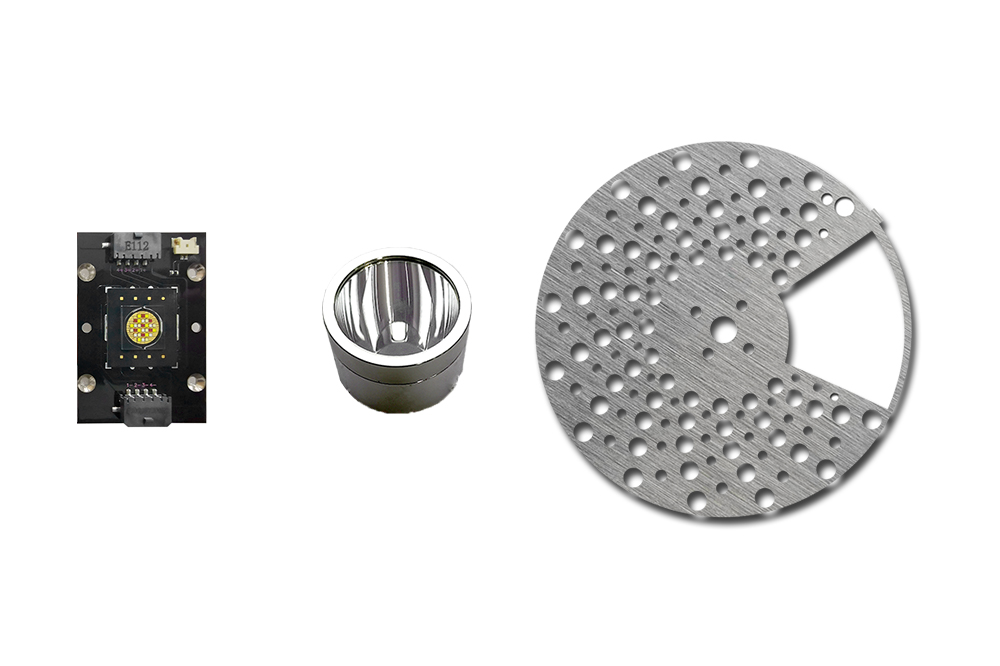

The best combination in fiber optic light engine for star ceiling: four-color RGBW LED module and the twinkle disc. This group brings the starry ceiling a fantastic simulating effect.

LEI-4361DMX/WP is the enhanced version of LEI-4121DMX/WP and LEI-4241DMX/WP. When the fiber cable is over 25 meters long, LEI-4361DMX/WP will be a better choice.

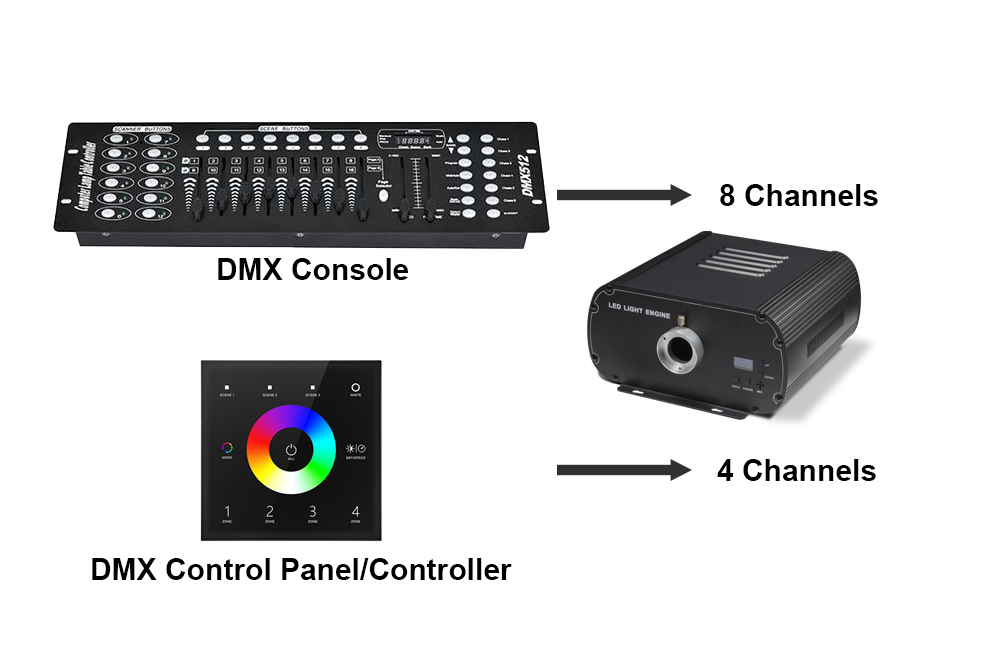

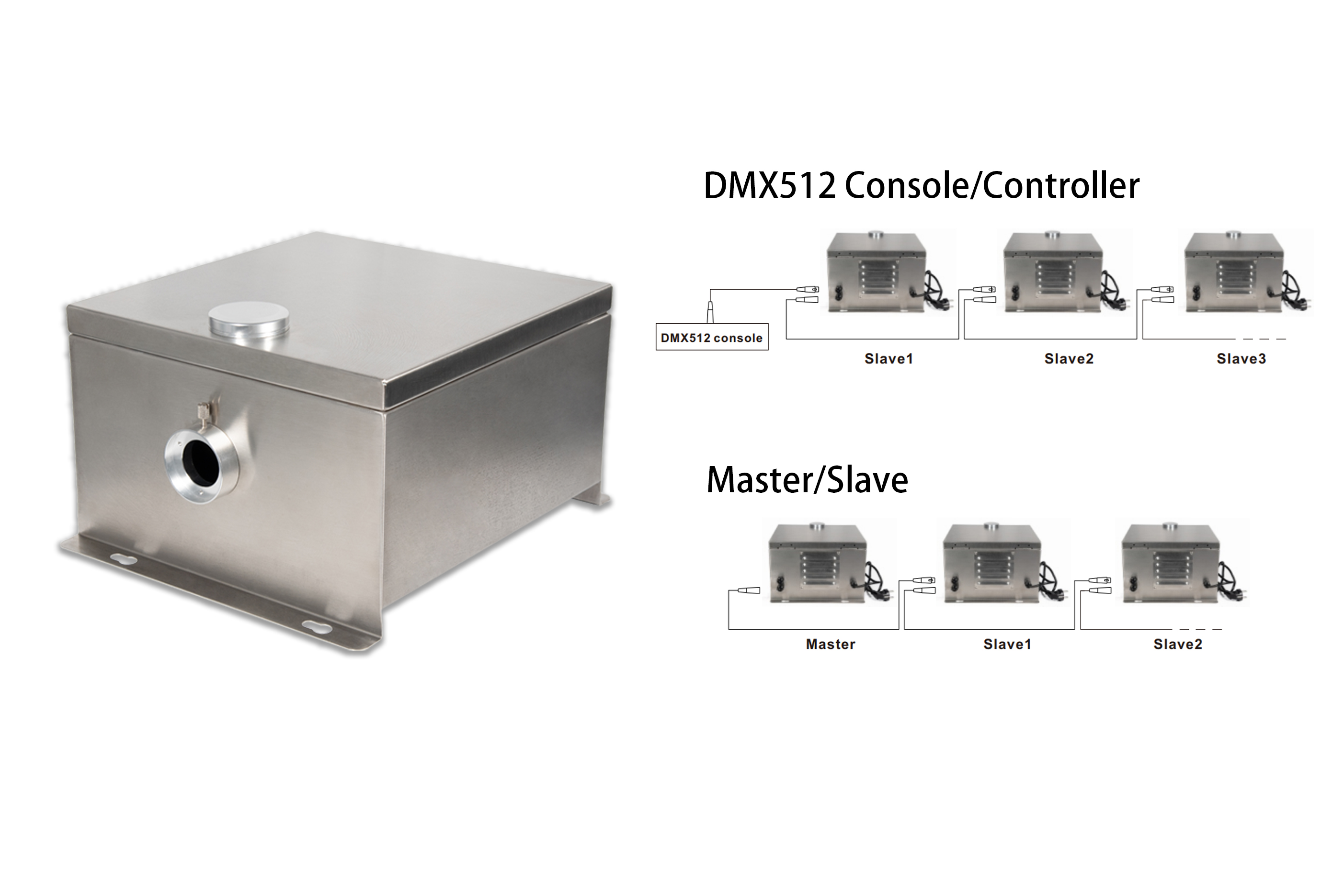

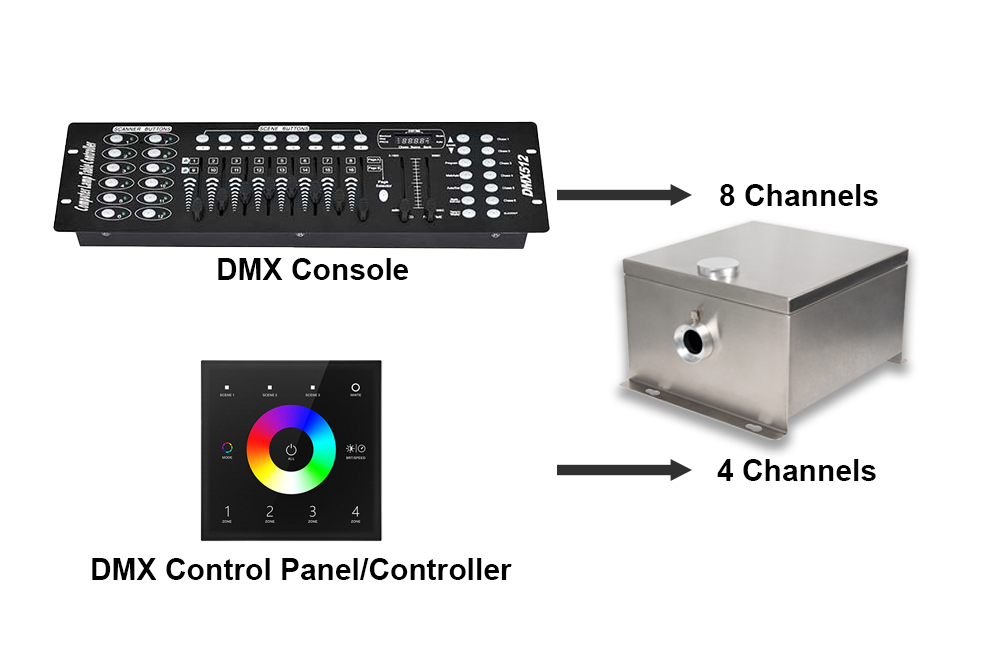

The RGBW models of the LEI series of light engines, LEI-4121DMX/LEI-4241DMX/LEI-4361DMX/(LEI-4121DMX/WP)/(LEI-4241DMX/WP)/(LEI-4361DMX/WP), can be selected with different numbers of DMX channels: CH1, CH4, CH5 and CH8. By default, it is 8 DMX channels for colors and speed/dimming/flashing control via a DMX console.

In case it is connected to a DMX controller/DMX control panel, the light engine needs to come out with 4 DMX channels of RGBW only. Please choose the number of DMX channels via the display if necessary.

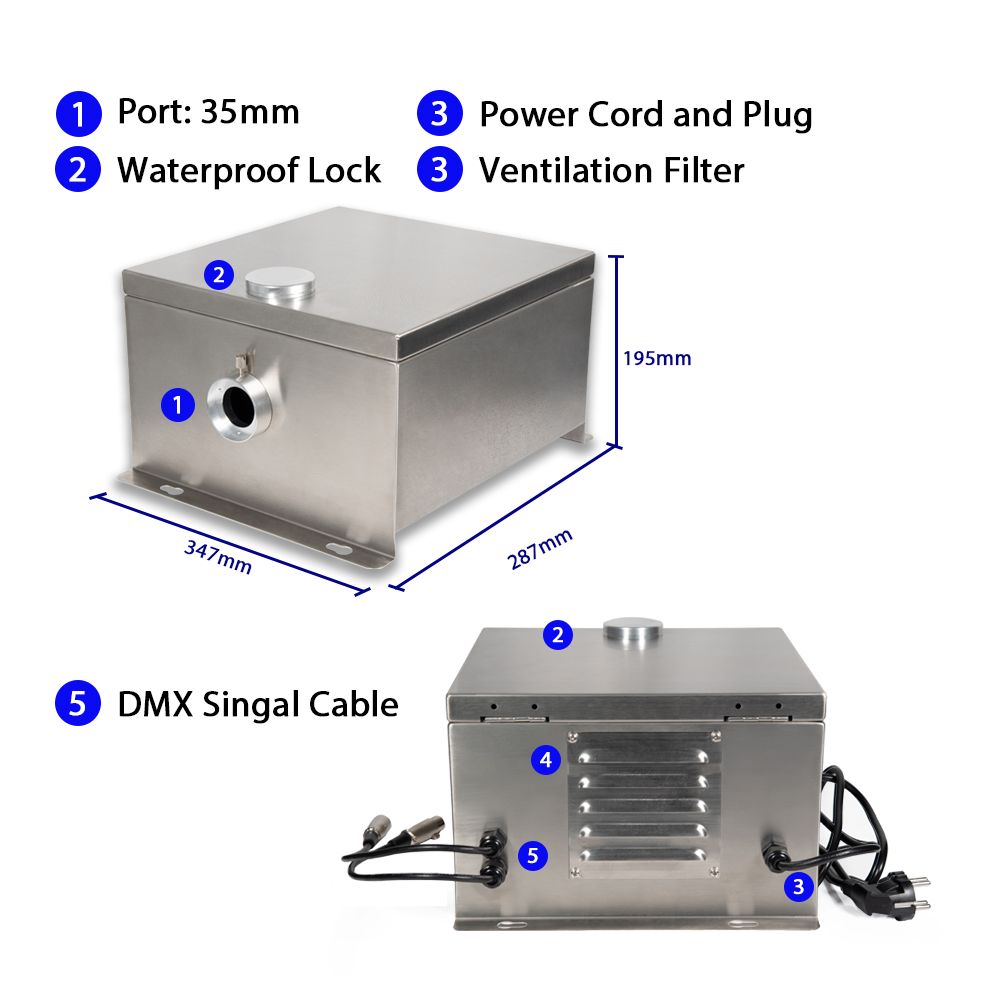

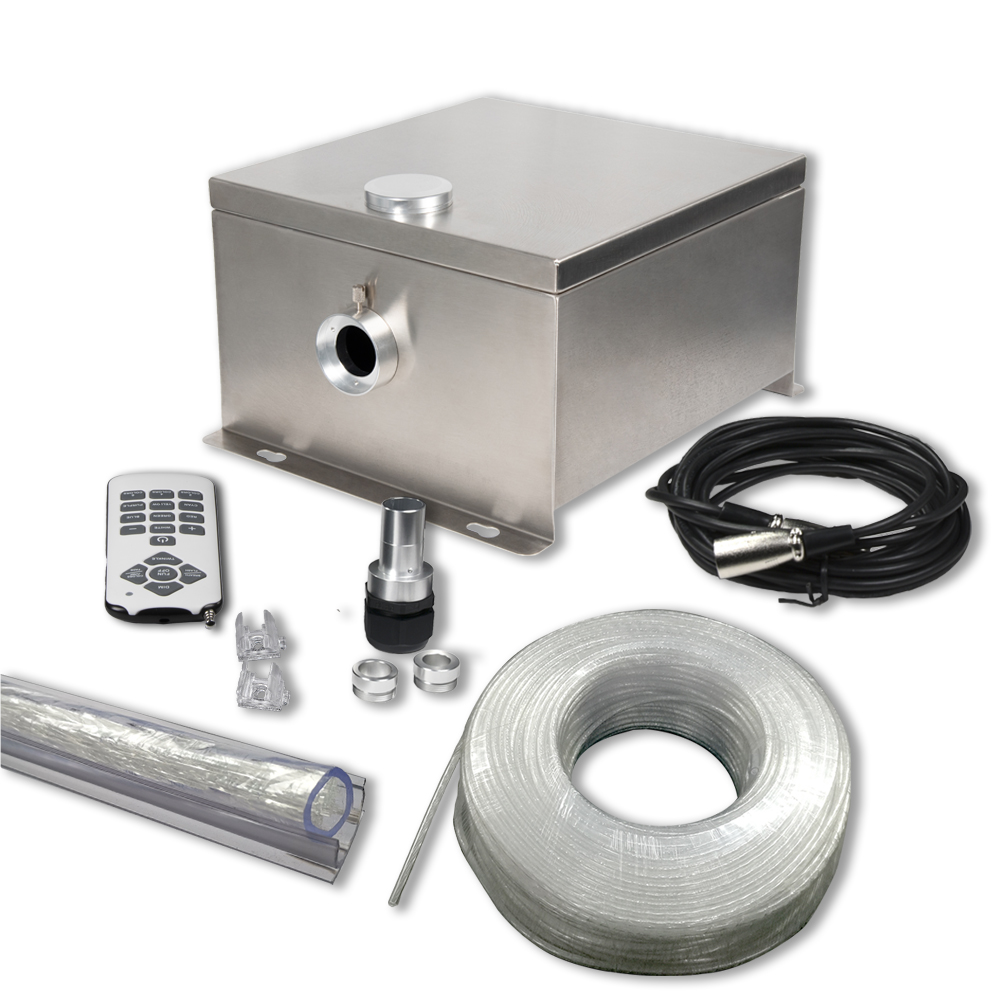

By default Minar provides one piece of 20mm/24mm/28mm 3-in-1 combined fiber connector for each line voltage light engine. These apertures are capable of 540pcs, 770pcs, and 1050pcs of 0.75mm fiber tails respectively. 30mm fiber connector is also available at request.

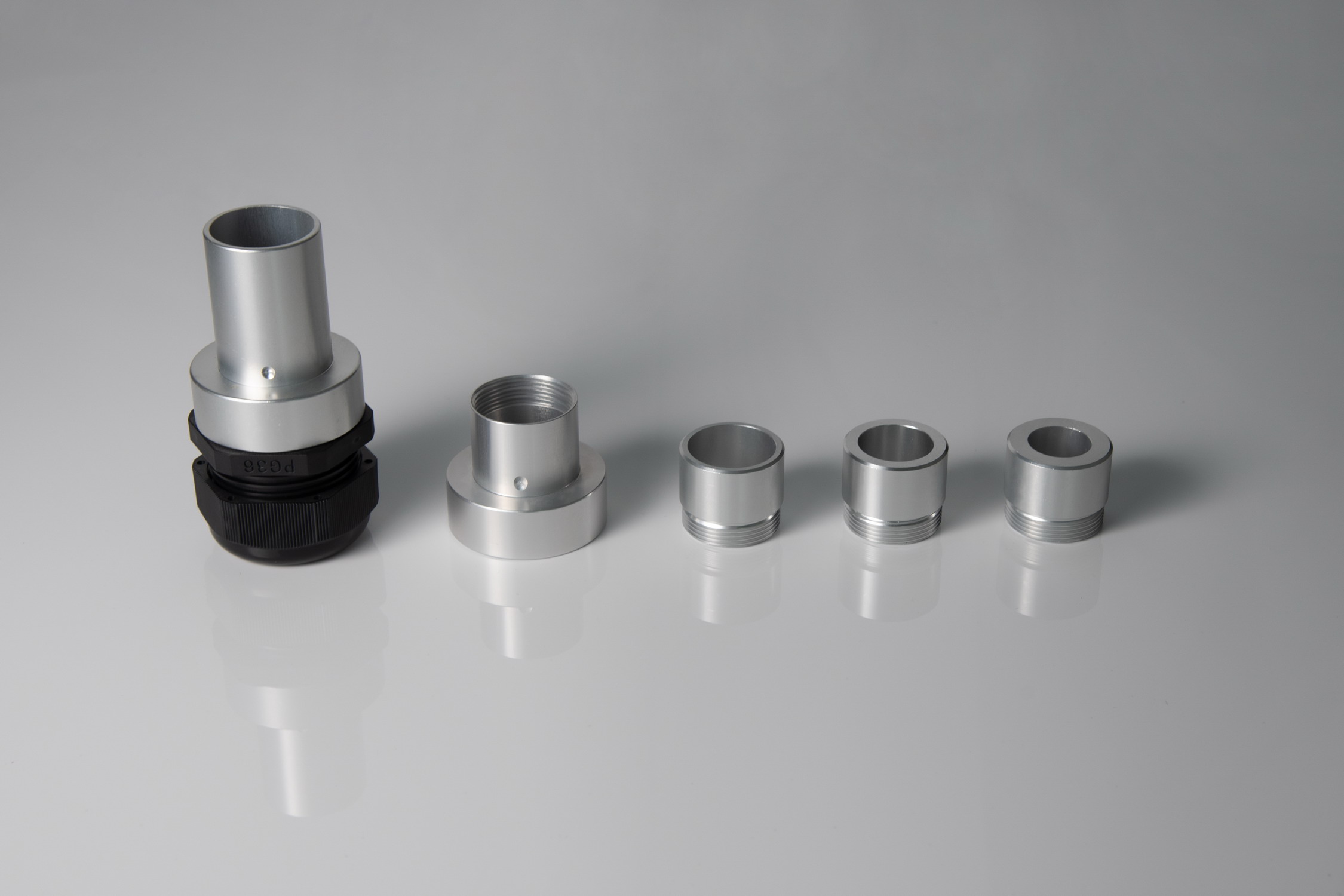

From left to the right, the fiber connector: 30mm, 28mm, 24mm, and 20mm.

Customized apertures are also welcome!

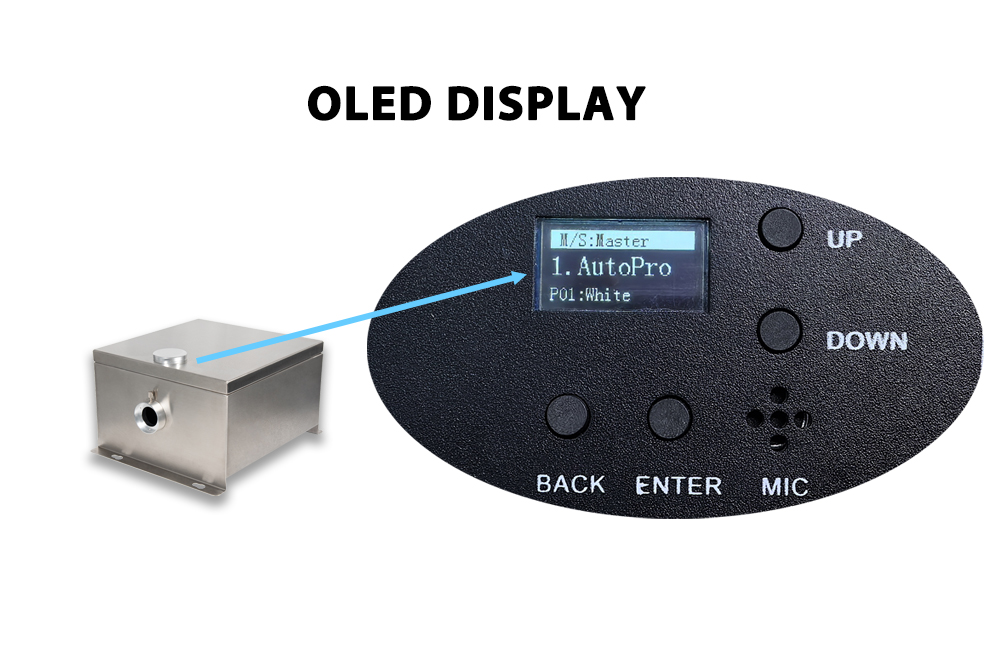

DMX version of the line Voltage LED light engine could use 15-key RF remote control to have different programs, dimming and wheel speed adjustment. LEI-4361DMX/WP has 24 built-in programmes, which can be selected using buttons+display or the remote control.

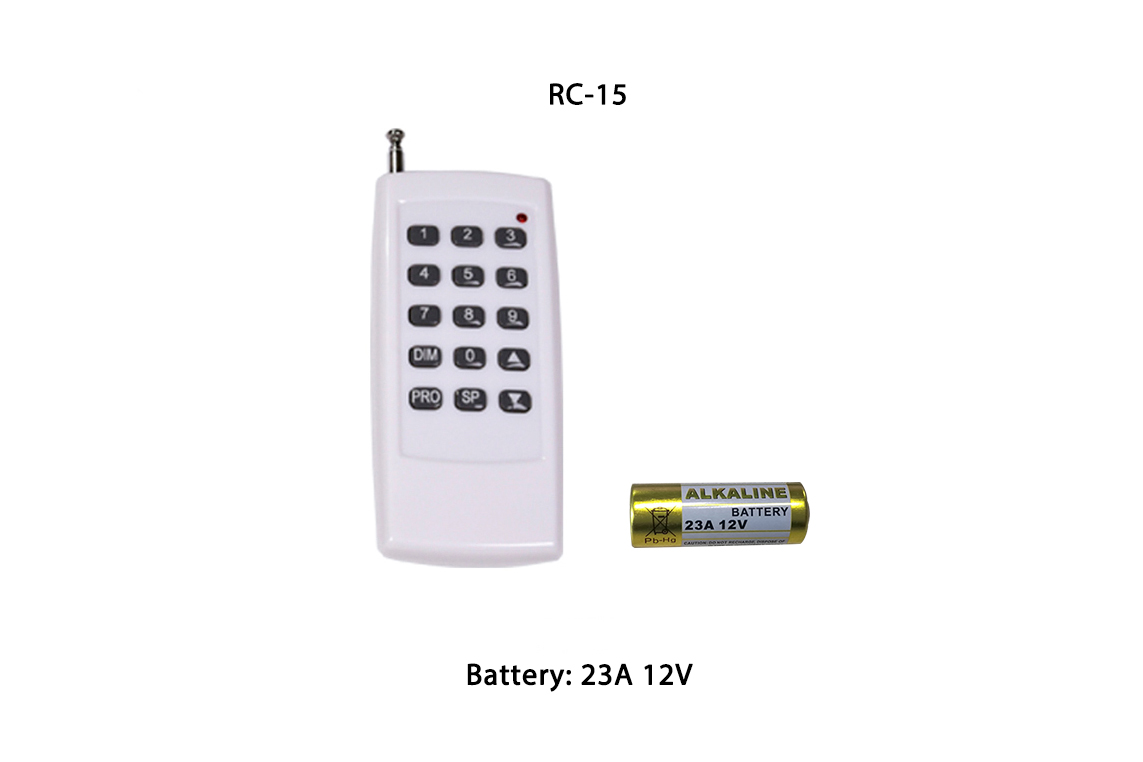

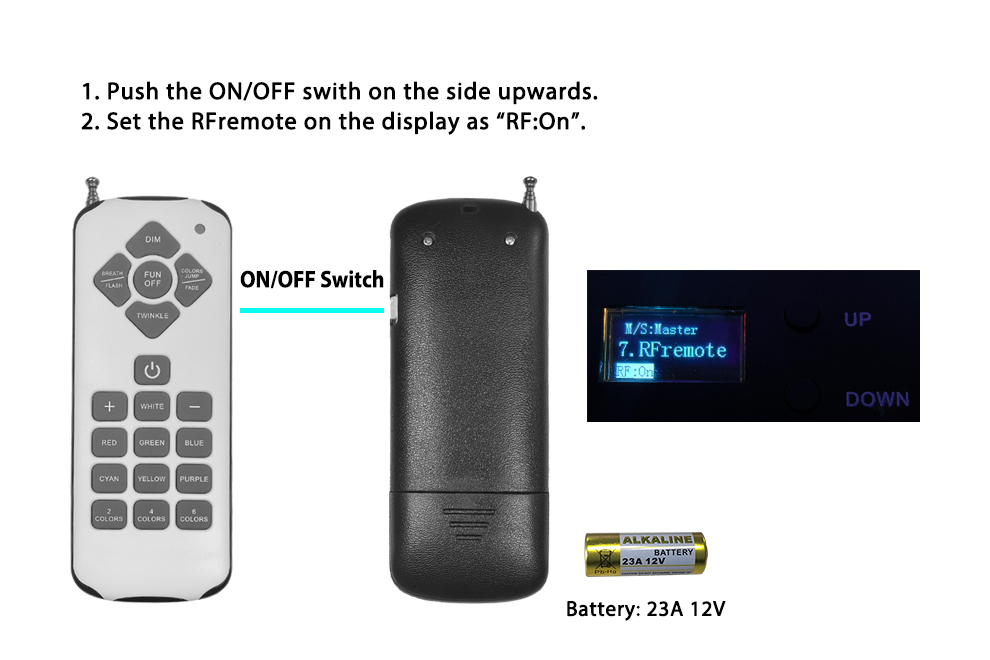

The 15-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 15-key remote control (optional):
1. Select the built-in programs,
2. Dimming,
3. Adjust the wheel speed.

Battery: 23A 12V, 1pc (not included in the package).
