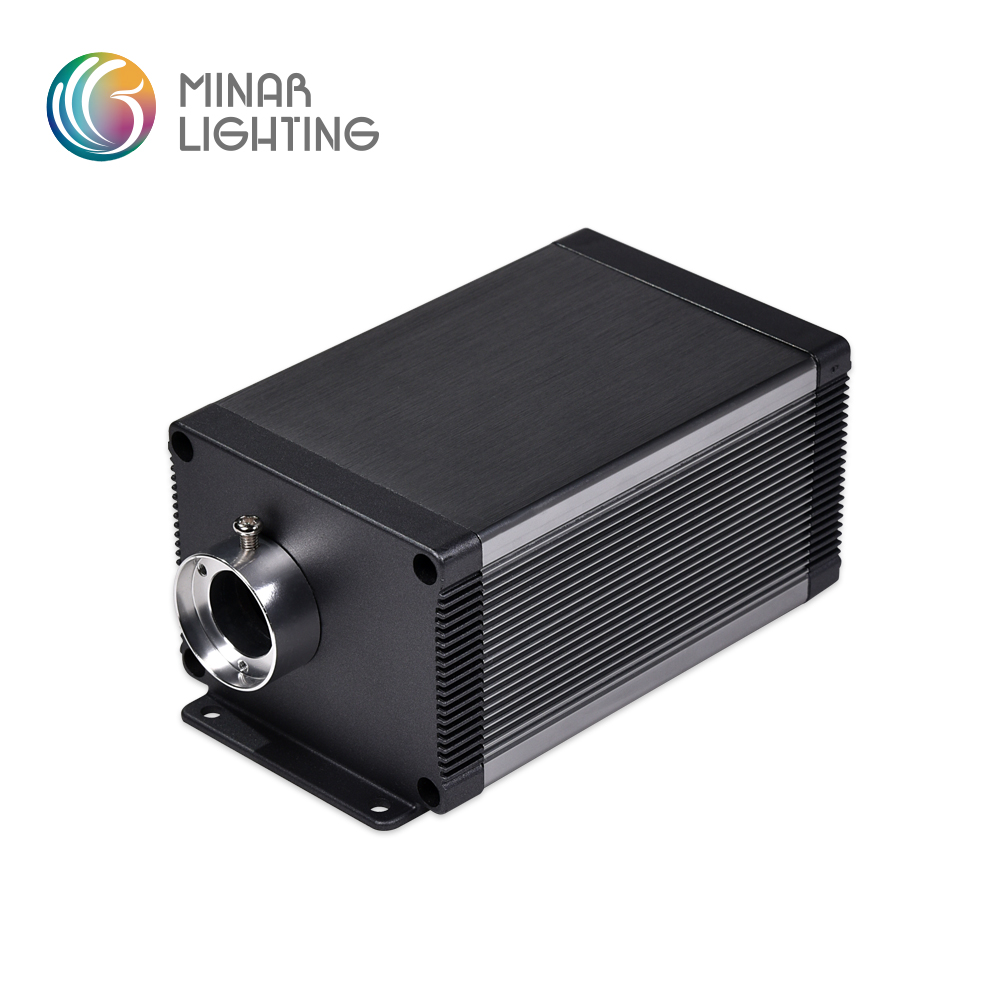

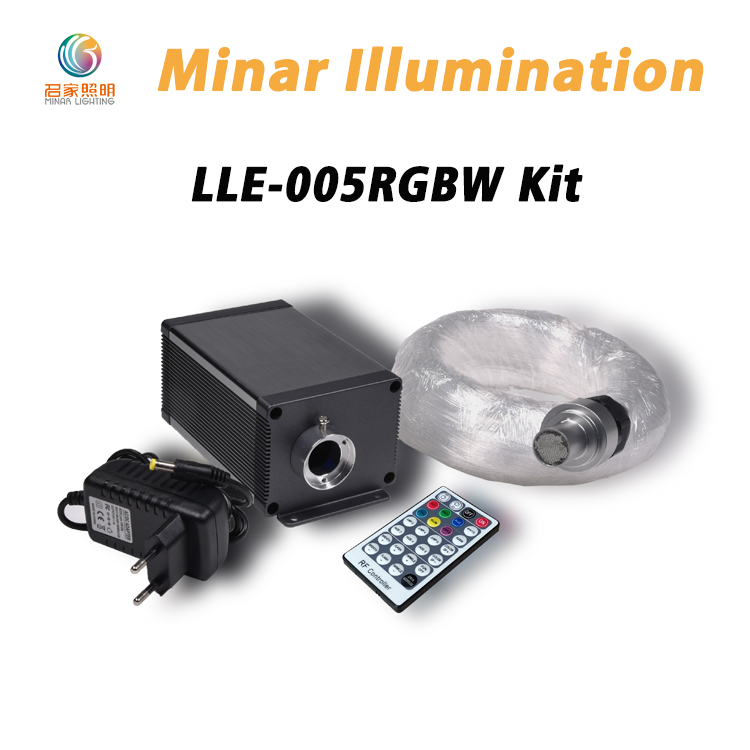

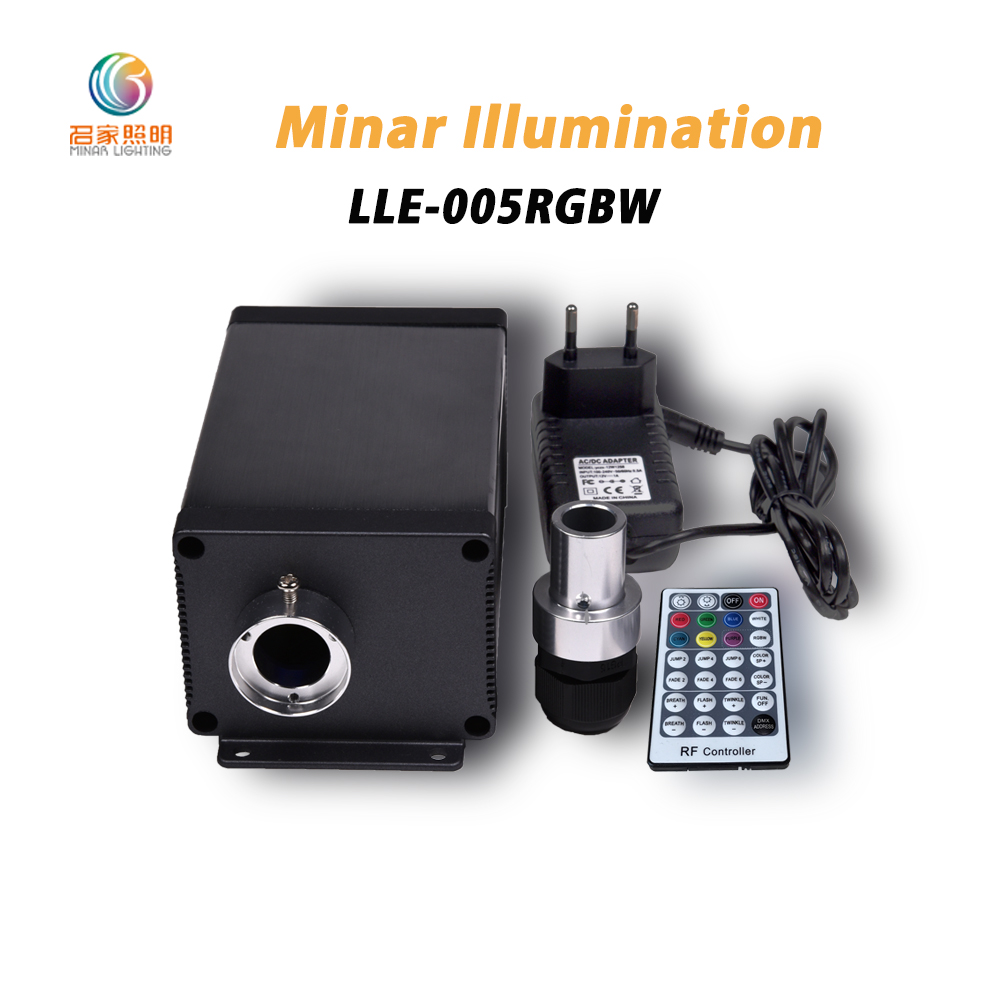

LLE-005RGBW

LLE series of fiber optic light engine applies miniature housing with exquisite workmanship. With no fans inside, the series features noise free, novel appearance and high cost performance.

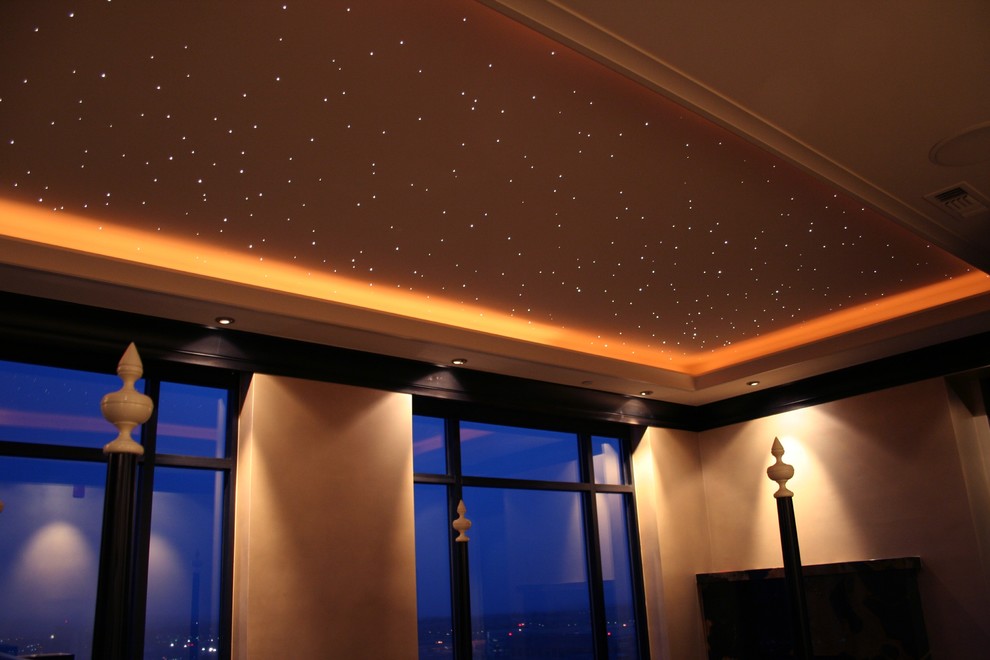

14W LED Light Engine for star ceiling

General Information:

1. Model: LLE-005RGBW,

2. Input Voltage: DC 12V,

3. Light Source: Colorful LED,

4. LED Type: RGBW, 4*3W, Cree,

5. Twinkle Disc: Yes,

6. Control: Remote control/DIP switches,

7. Light Emitting: Static color/Cycling colors,

8. Dimmable,

9. No fans, noise-free,

10. IP Rating: IP20,

11. Warranty: 2 Years,

12. Packing: Neutral color box.

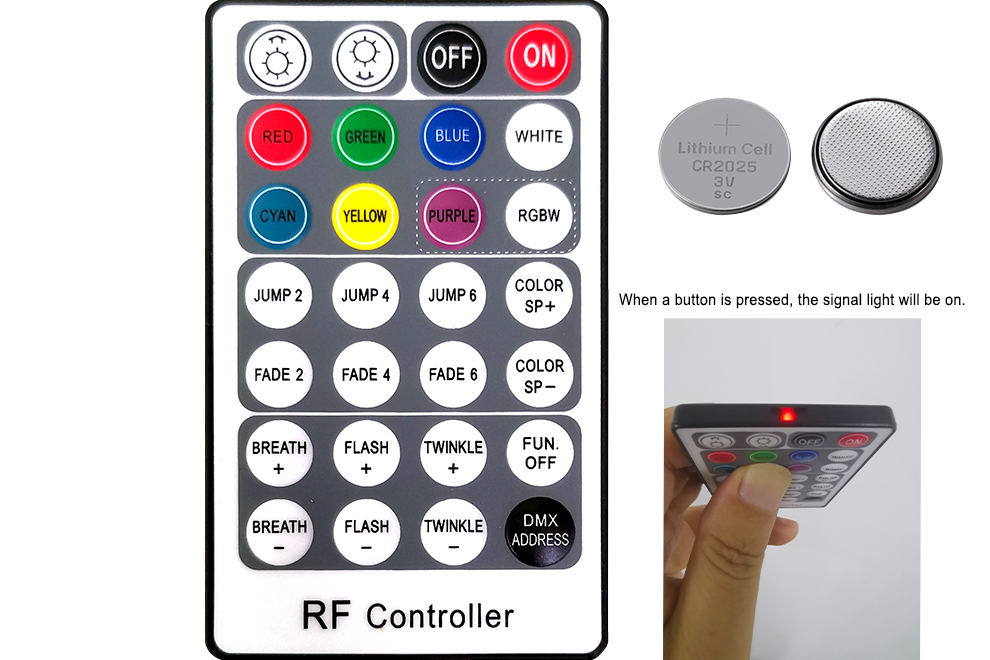

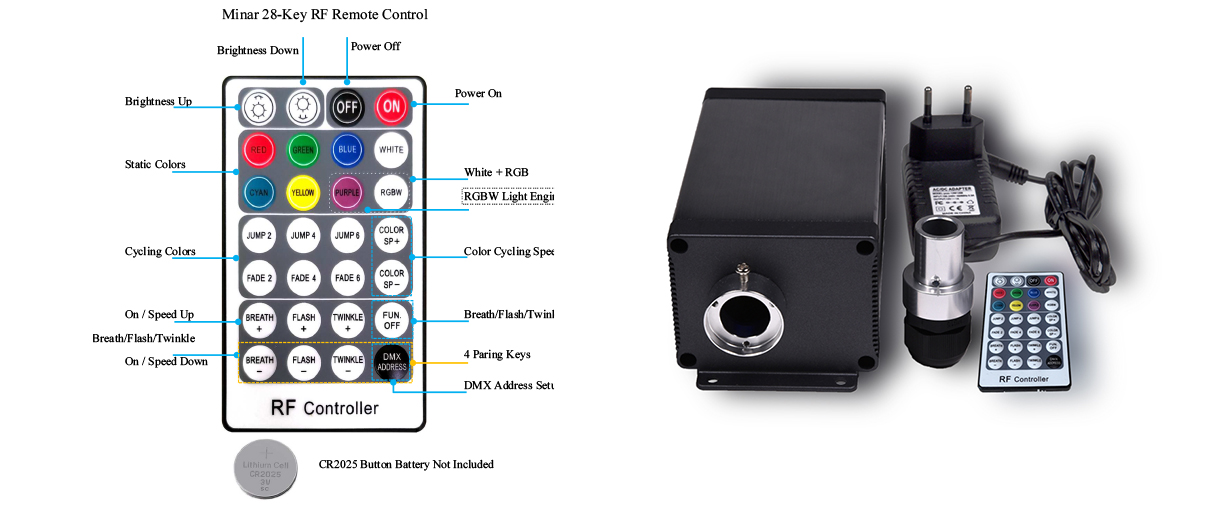

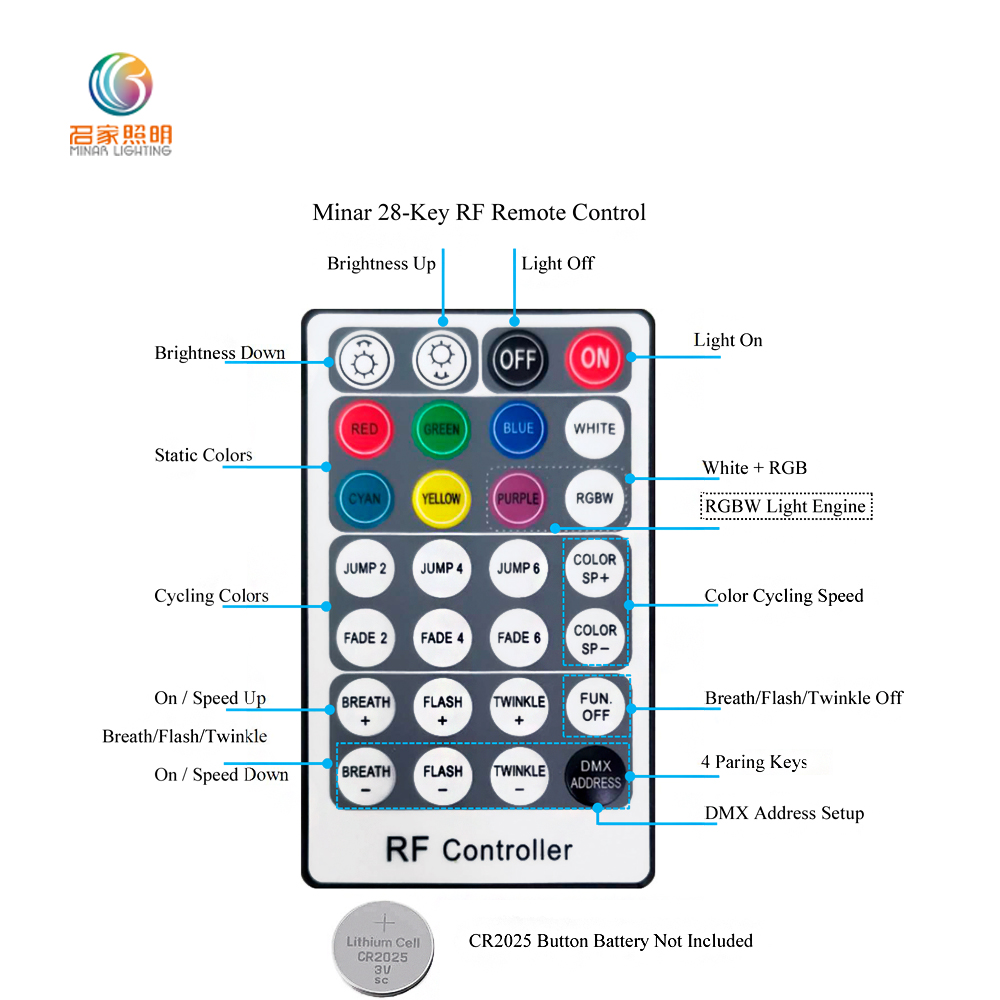

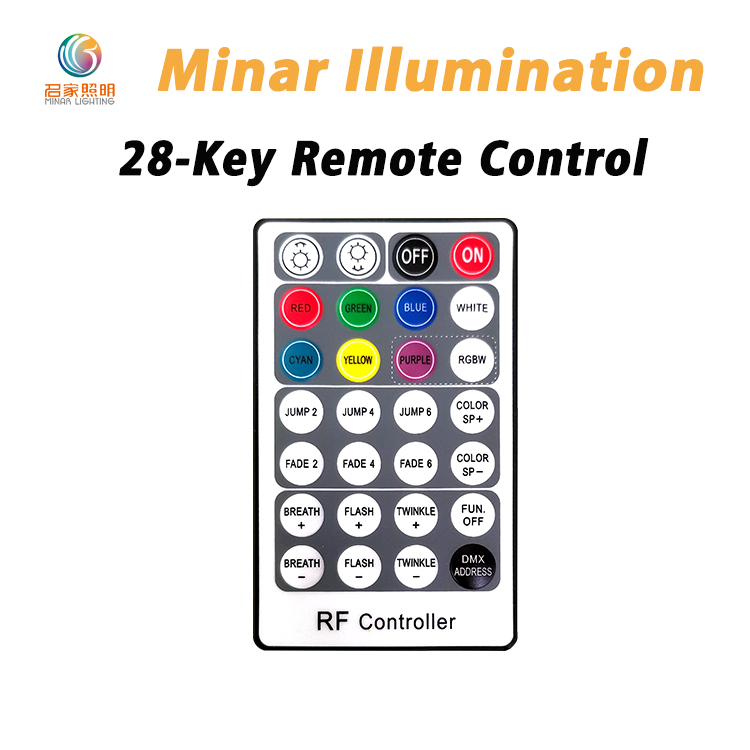

- 28-Key RF Remote Control

  The 28-key remote control has an effective control distance of around 10 meters in an open area and can be used with fiber optic light engines to have one-to-one, one-to-multi, multi-to-one, and multi-to-multi control.

  If the signal light is blinking when a button is pressed, it means the battery is low, and the remote control may not work properly. A new battery is needed.

  Battery: CR2025, 1pc (not included in the package)

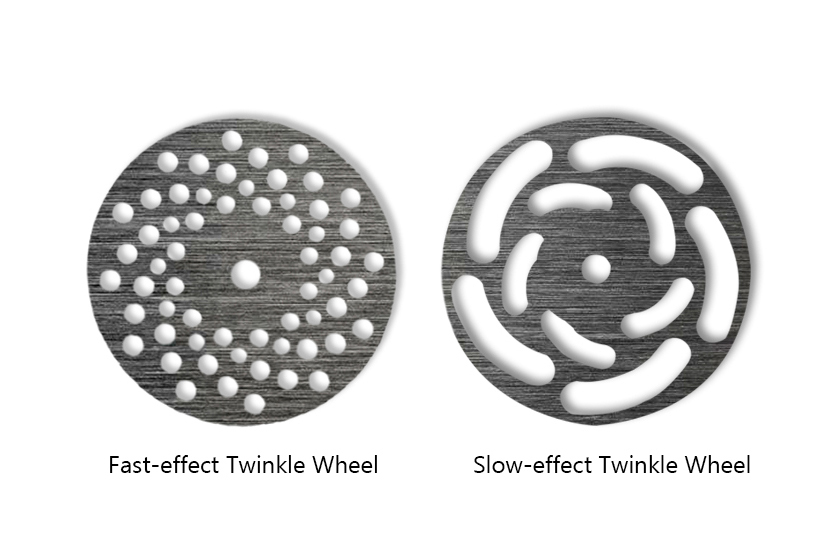

- Twinkle Wheel

  The wheels/discs that could be equipped into LLE-005RGBW fiber optic light engine, from left to right:
  1. The fast-effect twinkle wheel,
  2. The slow-effect twinkle wheel,

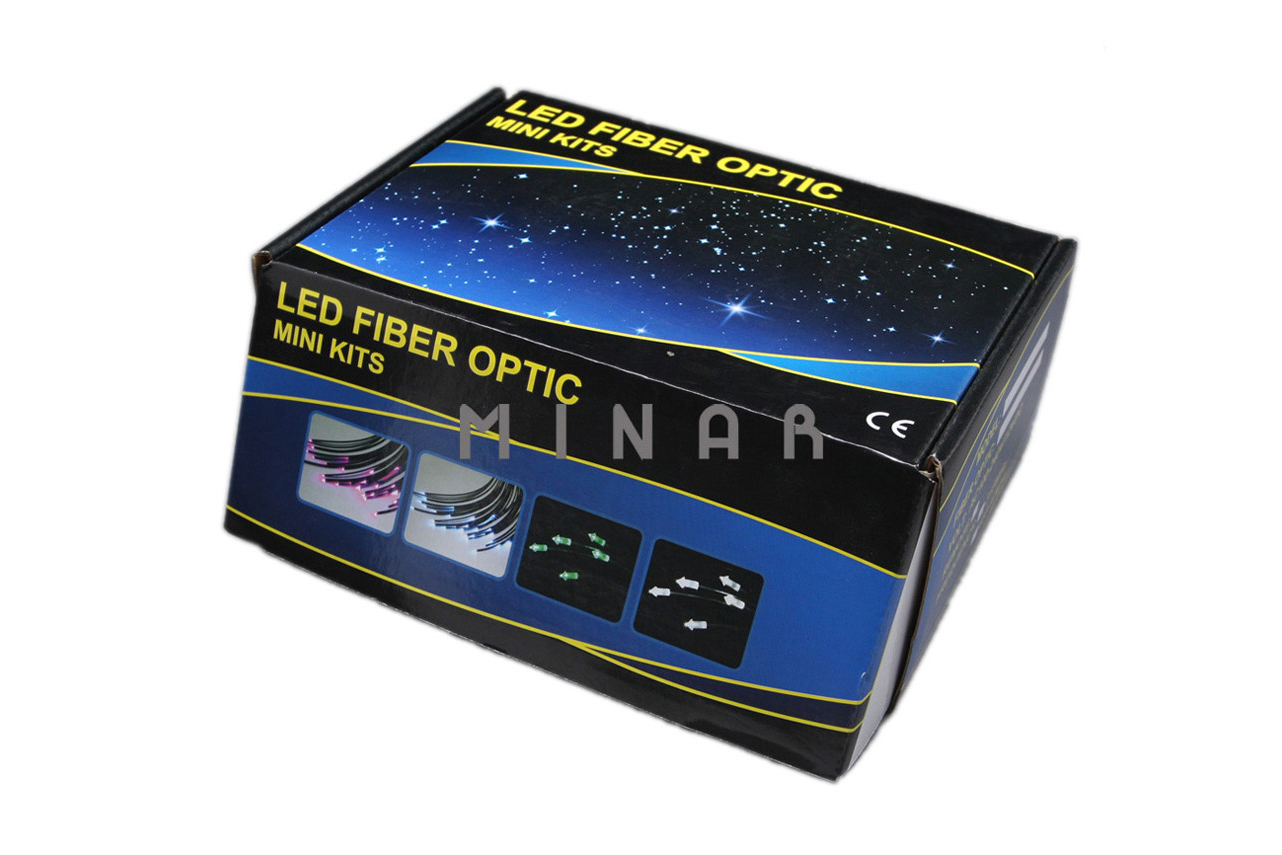

- Neutral Color Box

  Low voltage fiber optic light engines are generally packaged in a neutral color box. One unit of the fiber optic machine is packed in a color box. 8 to 10 color boxes are packed in an export carton.

SPECIFICATIONS

Specification:

Item Number

Standard

Aperture

Optional

Aperture

Maximum Fiber Capacity

(0.75mm fiber tails)

Housing

Material

Housing

Color

Dimensions

(mm)

Optional

Remote Control

LLE-005RGBW

14mm

18mm

450pcs

Aluminum

Grey

L150XW84XH69

RC-28

Electrical Parameters:

Working Voltage	Power Consumption	Input Voltage	Adapter Power
12V	14W	100V-240V ac	12V/1A

LED Parameters:

LED Power	LED Color	Color Temperature	Colour Temperature Options	Luminous Flux	Life Span
4X3W	RGBW	W: 6000K	W: 3000K	N/A	50000h

Control:

1	DIP Switches
2	Remote Control (optional)

Spare Parts in the Package:

No.	Item	Quantity
1	14mm Fiber Connector	1
2	Slow-effect Twinkle Wheel (built-in)	1
3	AC-DC Adapter	1

Optional Parts:

No.	Item
1	28-Key RF Remote Control
2	Fast-effect Twinkle Wheel
3	18mm Fiber Connector


Video of Twinkle Effect Demo

Twinkle Effect.mp4
