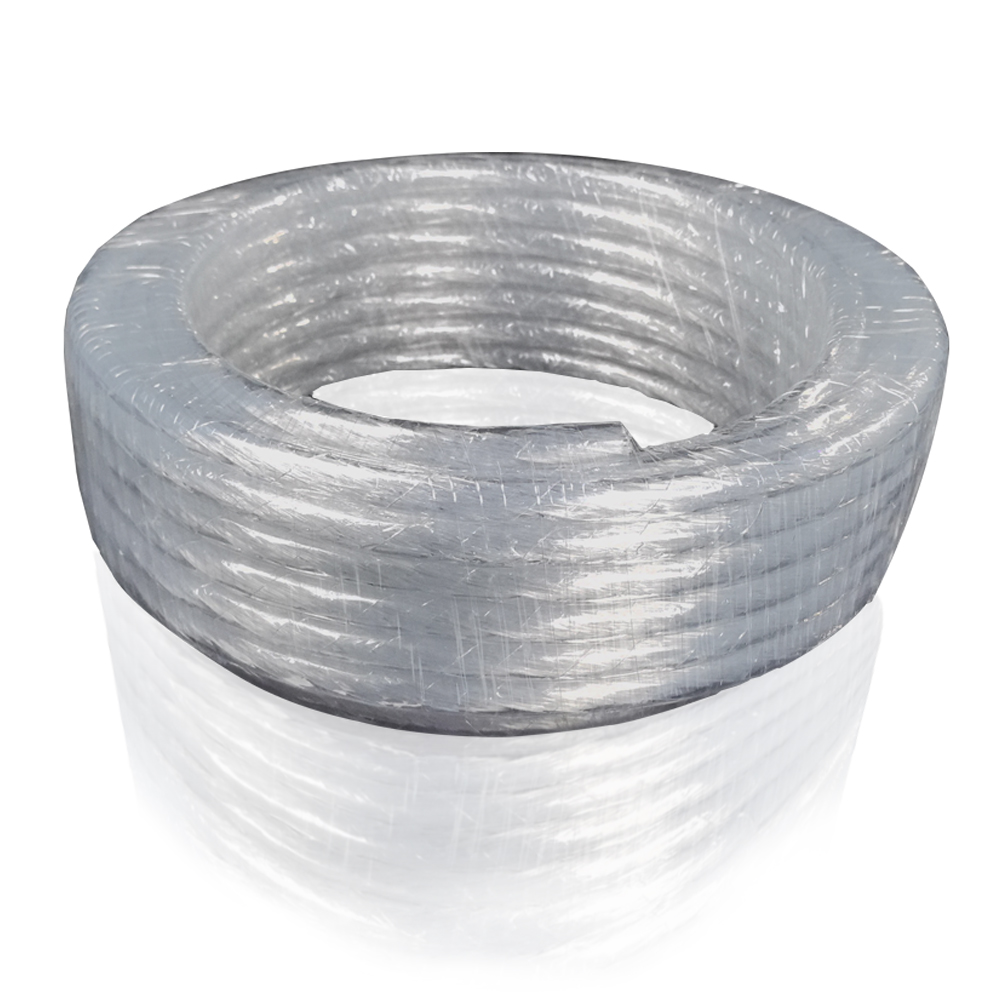

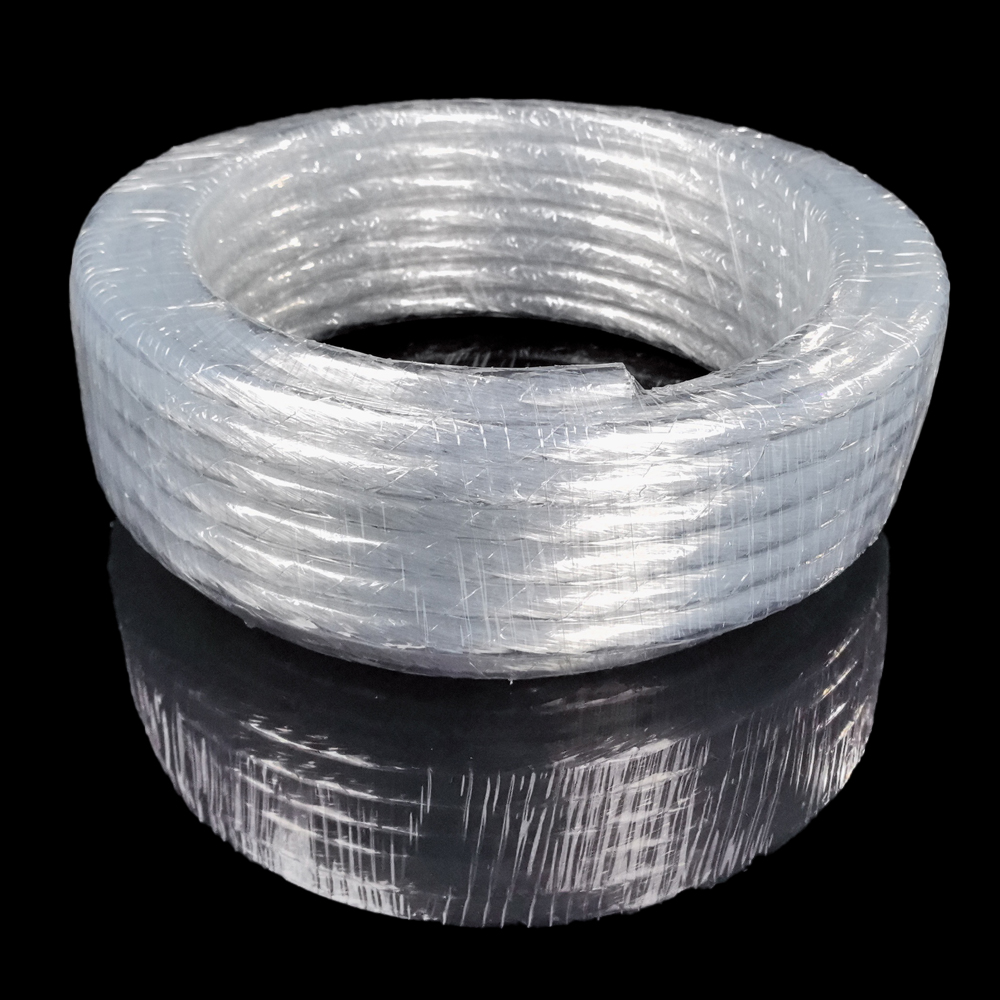

Stranded Multi-String Side Glow Fiber Cable

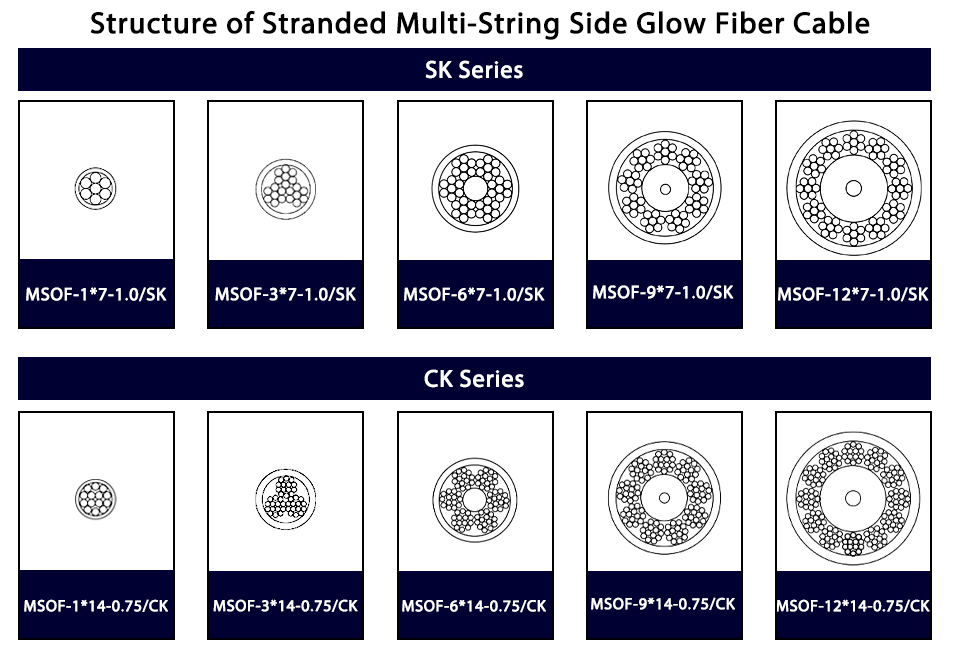

Fiber Cable Structure

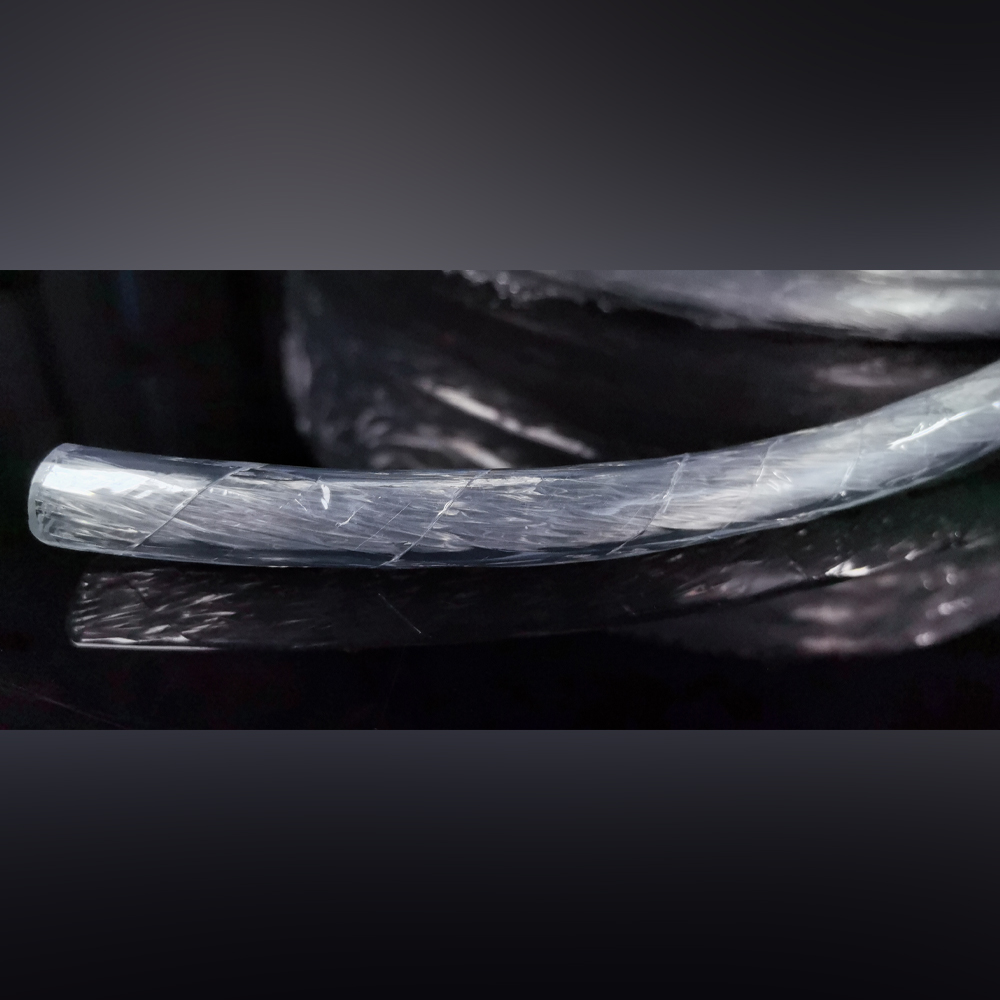

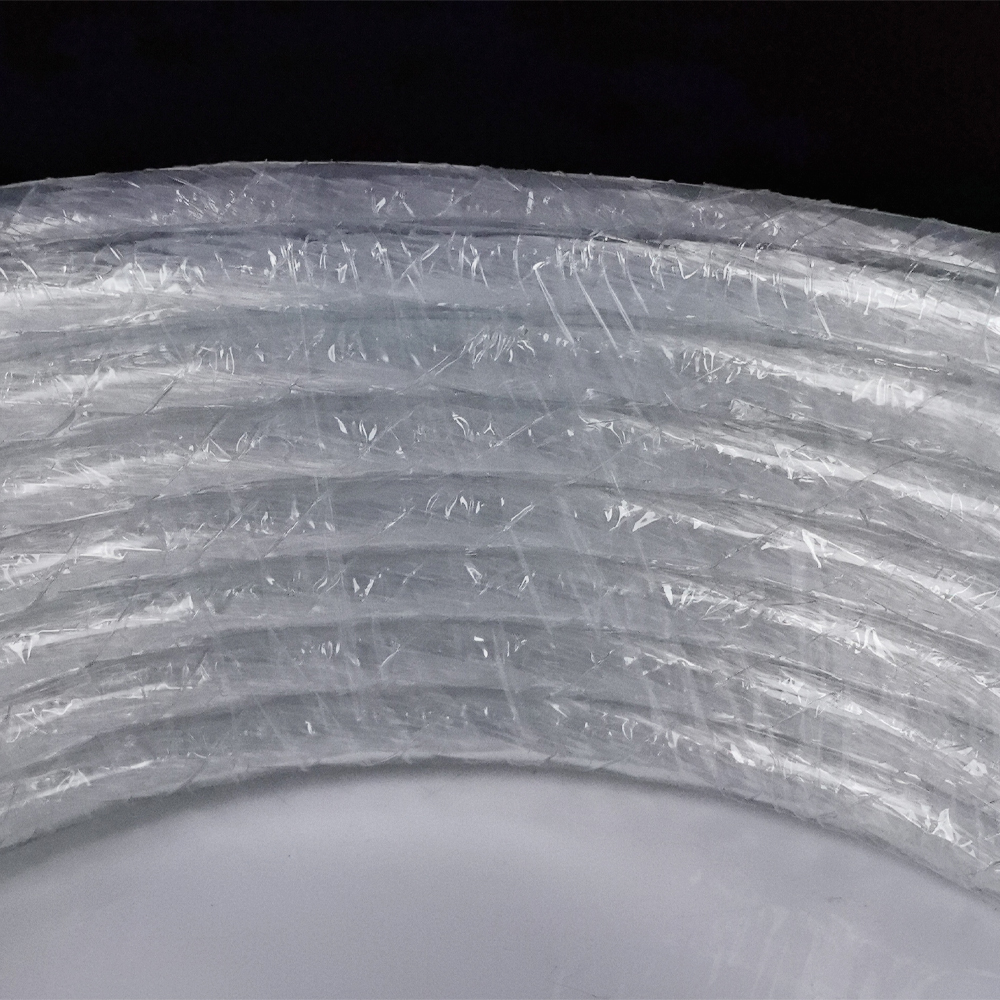

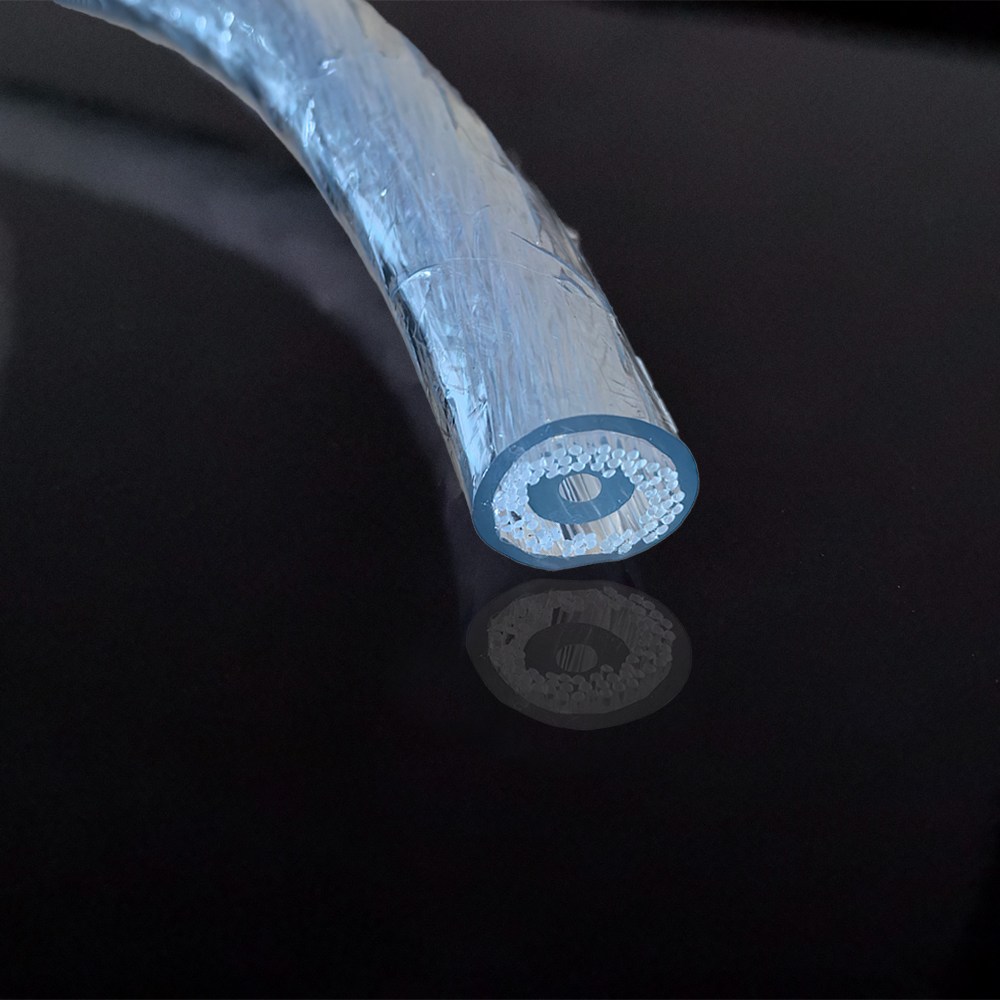

Sub-bundles formed of 7pcs of 1.0mm or 14pcs of 0.75mm PMMA fiber strands are twisted around a highly reflective PVC internal core within a clear PVC sheath to achieve maximum side-emitting light output. All the fiber strands are of Mitsubishi SK-40 (dia.: 1.0mm) or CK-30 (dia.: 0.75mm) for better light transmission.

The stranded multi-string side-glow fiber cable has a better performance than the solid side-glow fiber cable in terms of continuous luminous length.

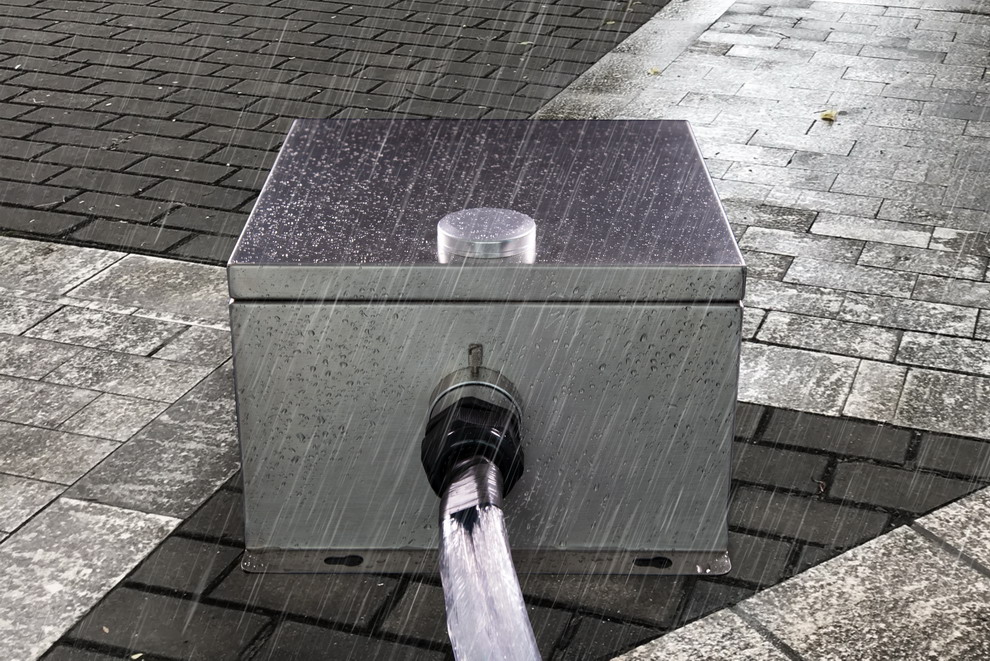

Driven at one end by our 80W light engine, the stranded cable could have a luminous length of 30 meters. Worked with our 150W LED light engine at both ends, the continuous length could be 80 meters.

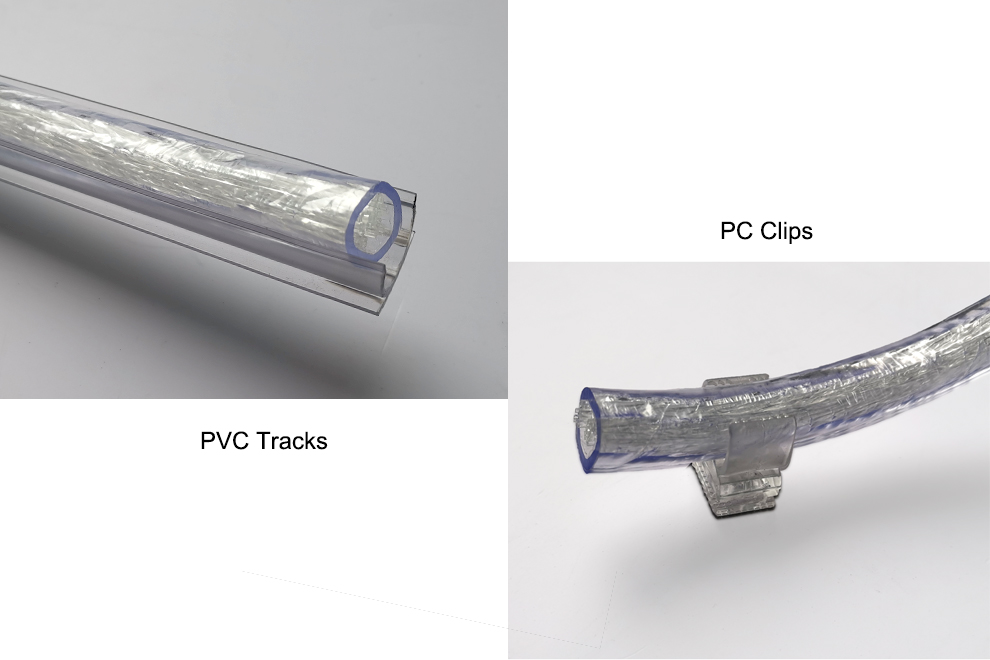

The tracks and clips provide permanent & semi-permanent options for affixing fiber cable to a variety of indoor and outdoor surfaces.

The PVC tracks or channels are like a framework, guiding the direction of the fiber optic light meter by meter. The track is commonly used for straight paths and results in a highly professional look. It can be screwed into the hanging surface or applied with an adhesive.

The PC clips can be screwed into many surfaces and have small rigid teeth for an extra firm grip. It is designed to direct the fiber cable in tight spaces, curvy areas, and corners.

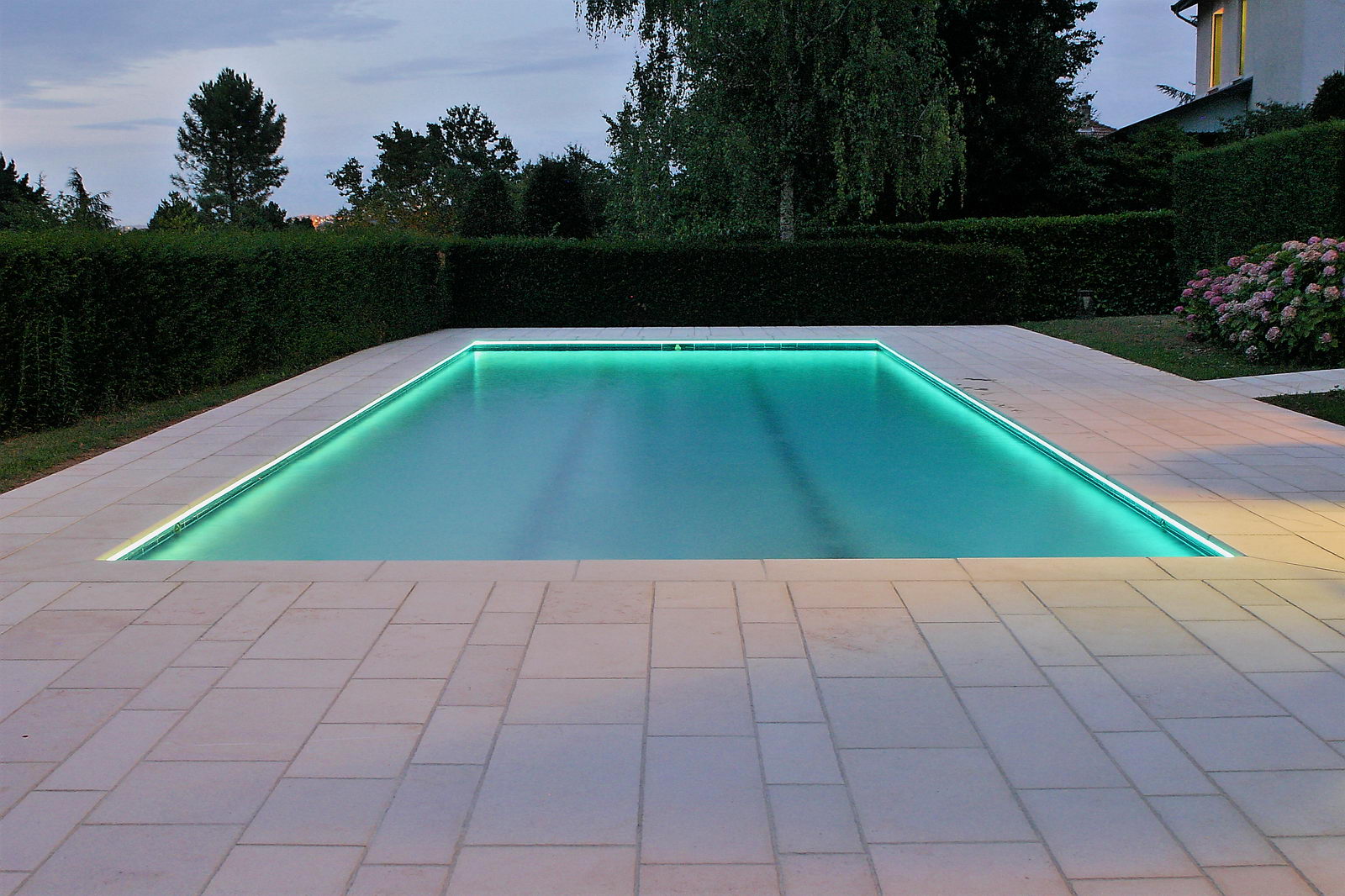

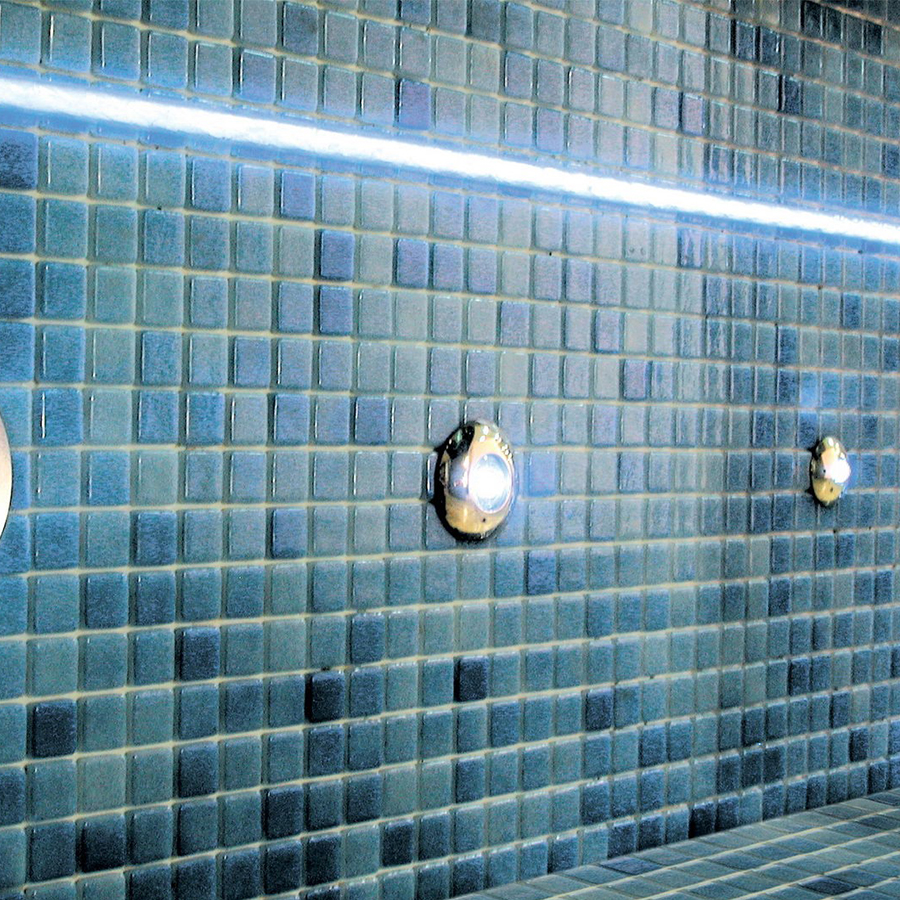

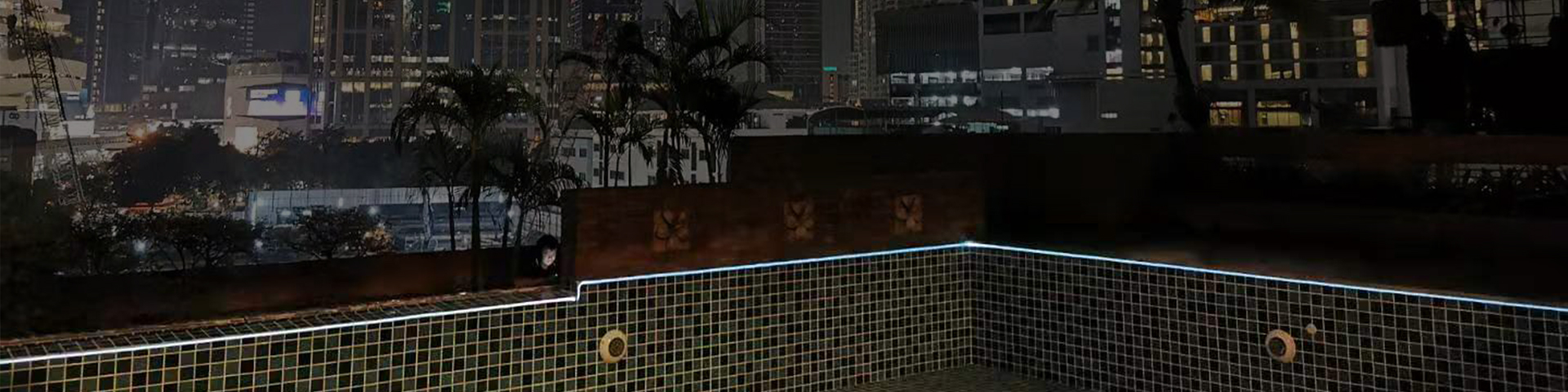

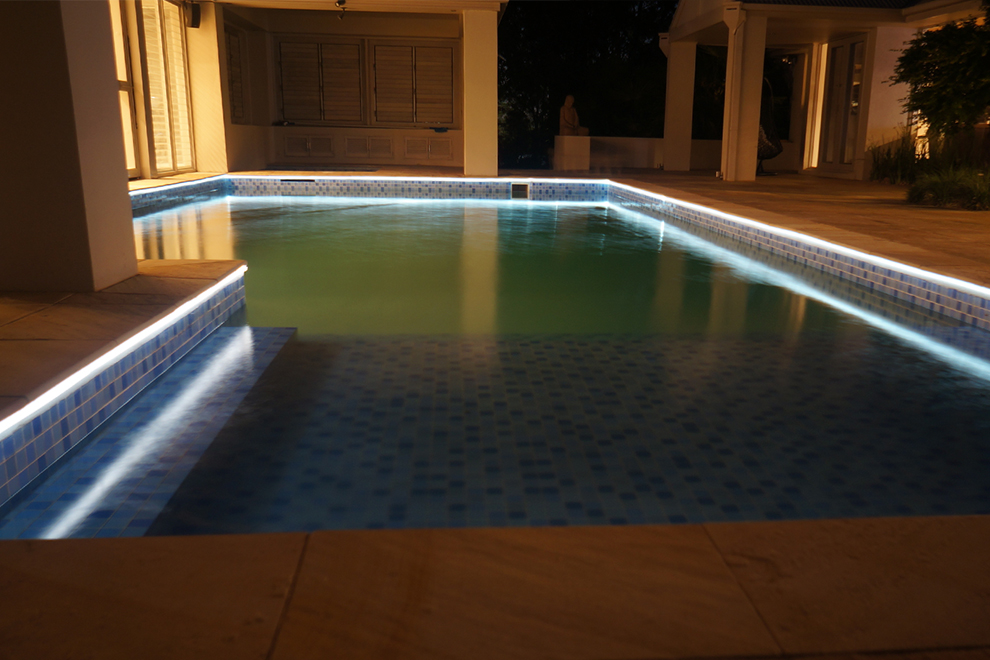

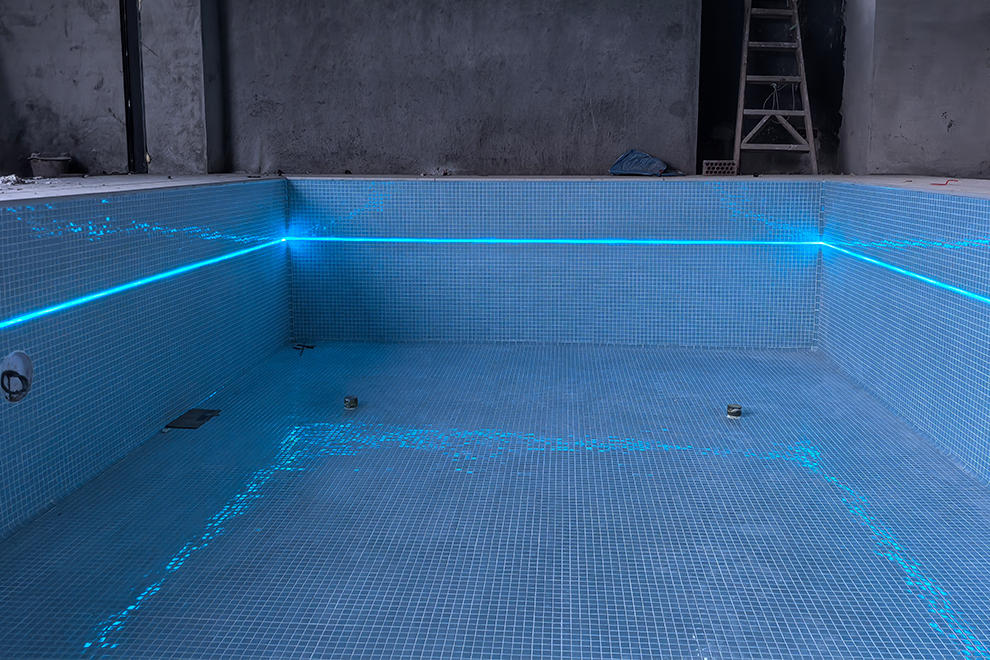

The treated PVC sheath and PMMA fiber strands enable the stranded side glow fiber cable to be used in both indoor and outdoor environments. Minar Illumination also offers 2 years warranty.

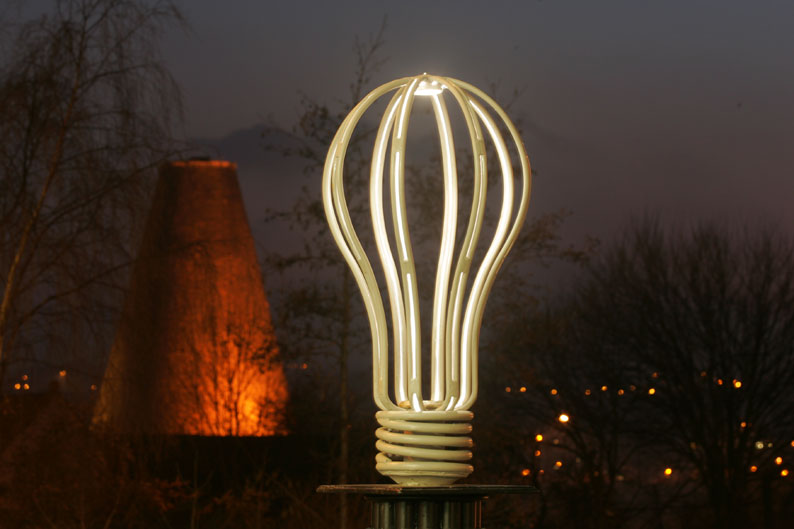

One of the advantages of the fiber optic light cable is that it has no heat or electricity inside the body. With the treated PVC sheath, this item has eliminated the typical lighting design restrictions and created a multitude of design possibilities.
