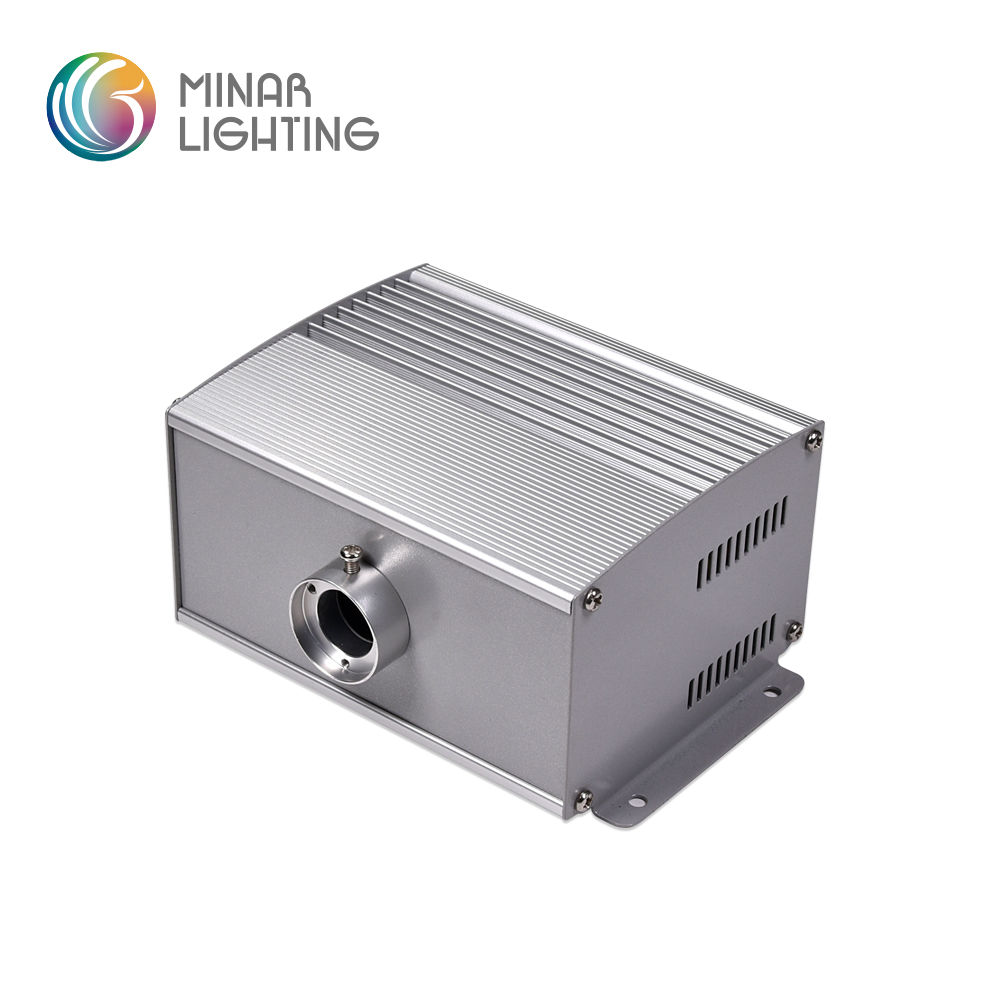

LEE-1001/ANI

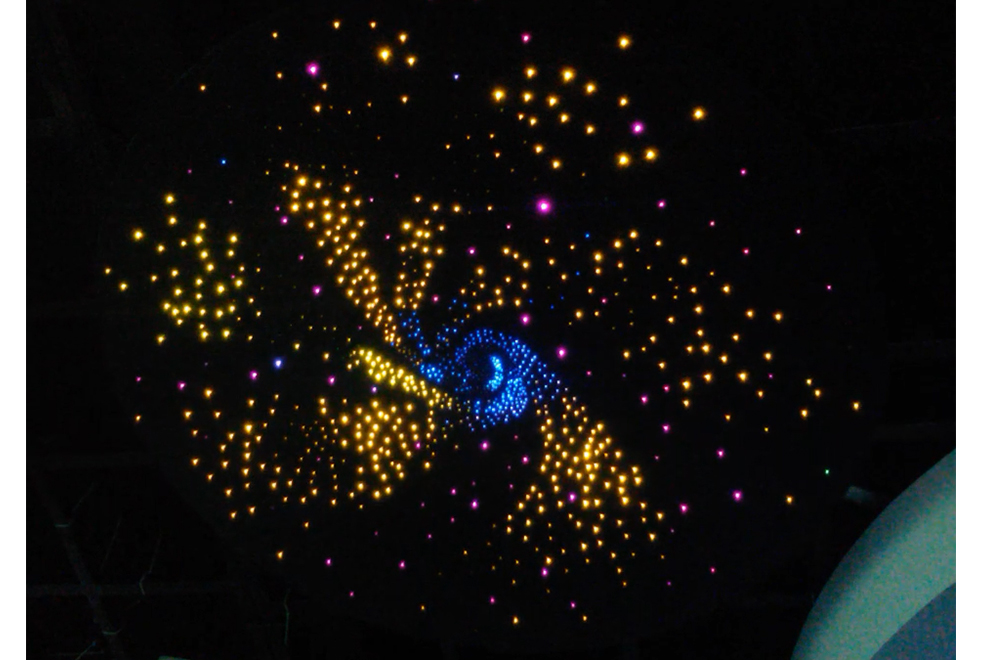

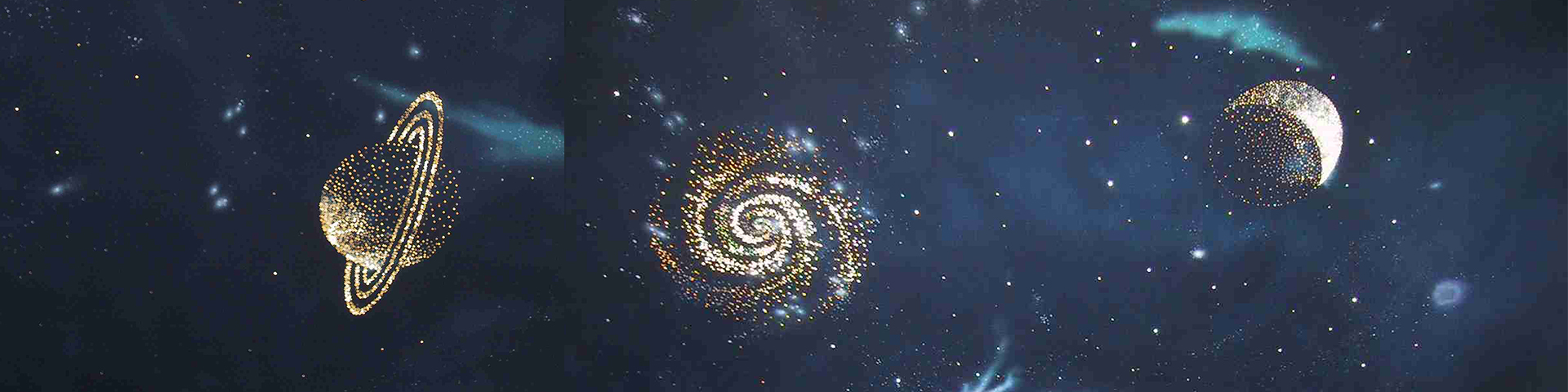

LEA-501/ANI and LEE-1001/ANI animation light engine are applied for special effects, such as meteor, shooting star, fire work, moon, etc. And the DMX versions of those two light engines are the only choices for nebulas effect.

10W Animation Light Engine

General Information:

1. Model: LEE-1001/ANI

2. Input Voltage: DC 12V,

3. Light Source: White light LED,

4. LED Type: 10W, Cree, 3000K/4000K/6000K,

5. Wheel/Disc: Special animation wheel,

6. Control: Remote control/DIP switches,

7. Light Emitting: White/cycling colors,

8. Adjustable wheel spin speed,

9. Dimmable,
10. No fans, noise free,

11. IP Rating: IP20,

12. Warranty: 2 Years,

13. Packing: Neutral color box

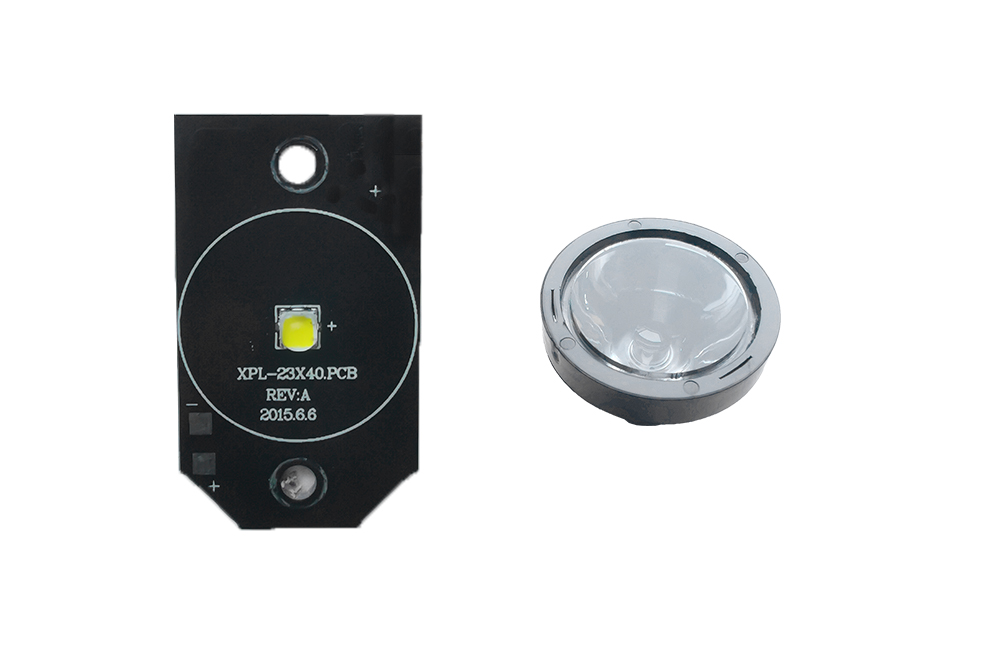

- 10W LED Module

  LEE-1001/ANI animation light engine is the upgrade version of LEA-501/ANI, using 10W CREE XPL LED module. Together with the lens, the LED module could drive the the end glow fiber cable of 10 meters long.
- Numbered Fiber Tails

  The fiber tails for this light engines needs to be numbered from 1 to the last one. As such, the fiber tails will light on in sequence to achieve the animation effect when the wheel spins. The numbering job could be done at the workshop at request.

  These numbering fiber tails could be bring a fine and vivid animation effect that other 12 ports animation light engine could not match.

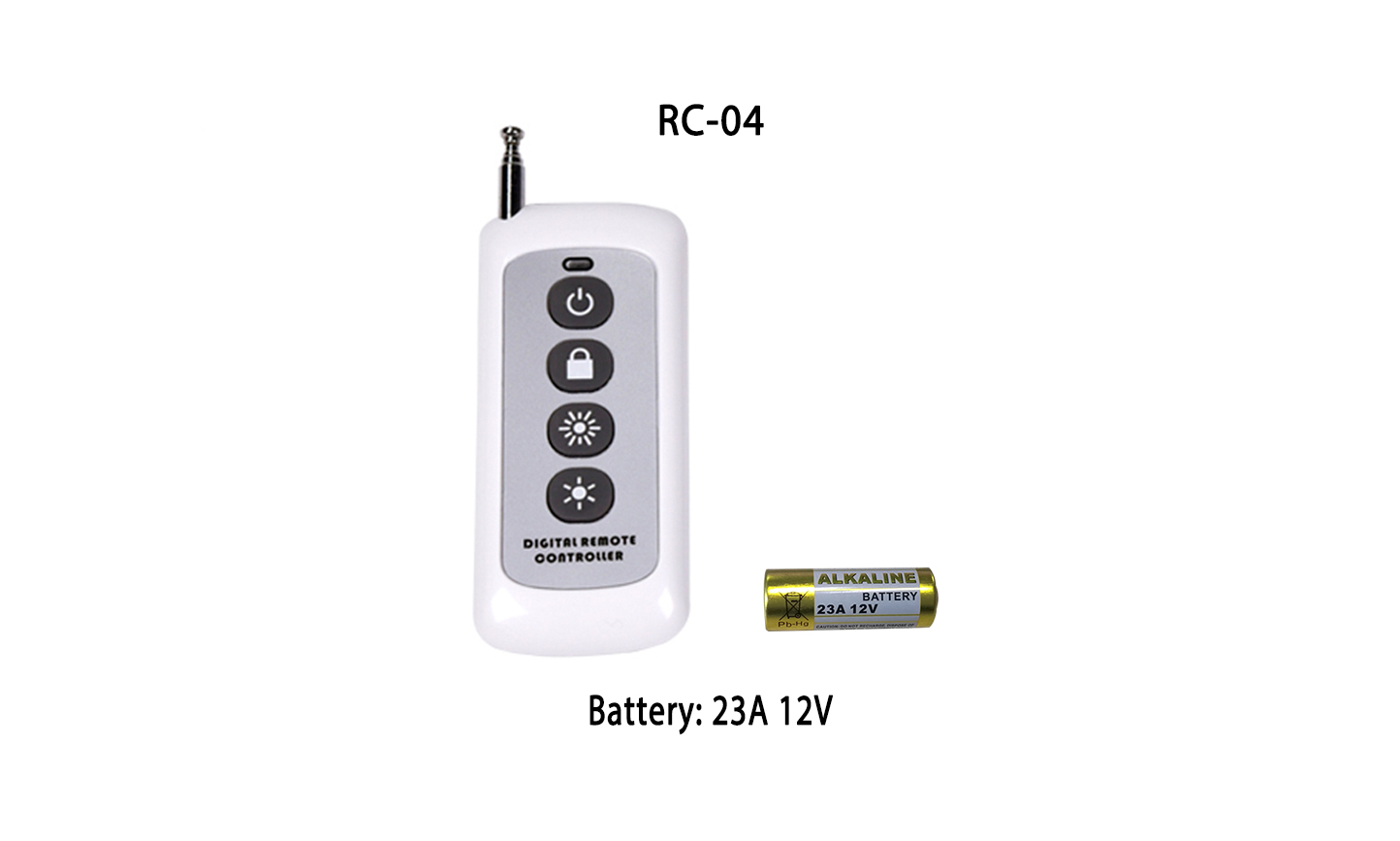

- 4-Key RF Remote Control

  The 4-key RF remote control has an effective control distance of around 25 metres in open area.

  The function of the 4-key remote control (Optional):
  1. Turn on the light engine,
  2. Turn off the light engine,
  3. Fix the emitting color,
  4. Dimming

  Battery: 23A 12V, 1pc (not included in the package)

SPECIFICATIONS

Specification:

Item Number

Standard

Aperture

Optional

Aperture

Maximum Fiber Capacity

(0.75mm fiber tails)

Housing

Material

Housing

Color

Dimensions

(mm)

Optional

Remote Control

LEE-1001/ANI

Arc Shape

N/A

150

Aluminum

Silver

L165XW125XH80

RC-04

Electrical Parameters:

Working Voltage	Power Consumption	Input Voltage	Adapter Power
12V	7W	100V-240V ac	12V/1A

LED Parameters:

LED Power	LED Color	Color Temperature	Colour Temperature Options	Luminous Flux	Life Span
10W	White	6000K	3000K/4000K	1000lm @ 6000K	50000h

Control:

1	DIP Switches
2	Remote Control (optional)

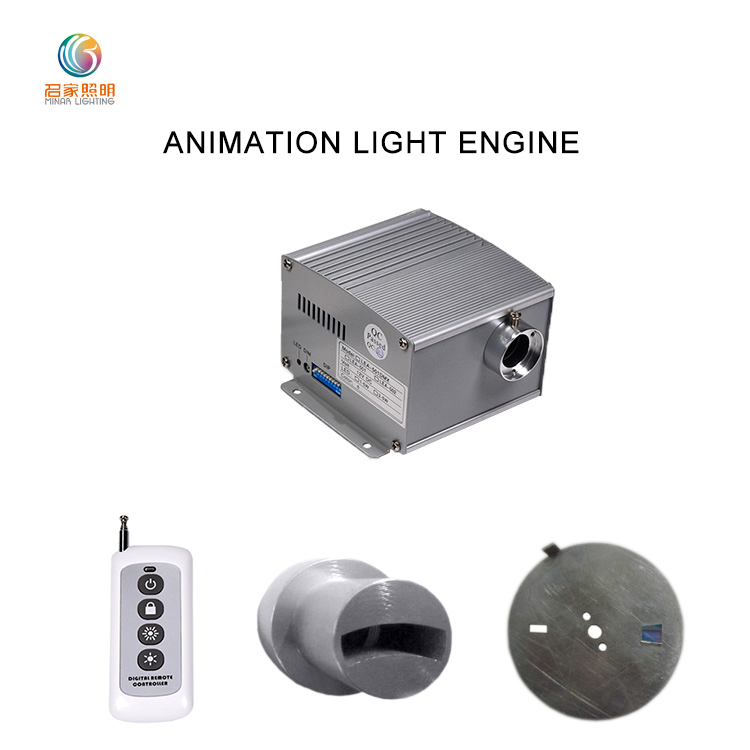

Spare Parts in the Package:

No.	Item	Quantity
1	Animation Wheel (built-in)	1
2	Arc Shape Fiber Connector	1
3	AC-DC Adapter	1

Optional Parts:

No.	Item
1	4-Key RF Remote Control

Animation Demo.jpg

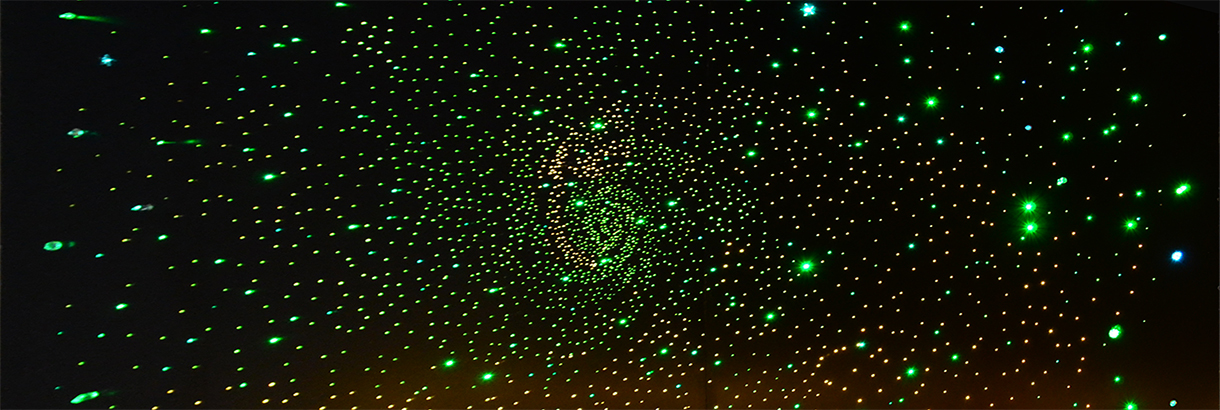

Video of Animation and Nebulas Demo

Animation and Nebulas.mp4
