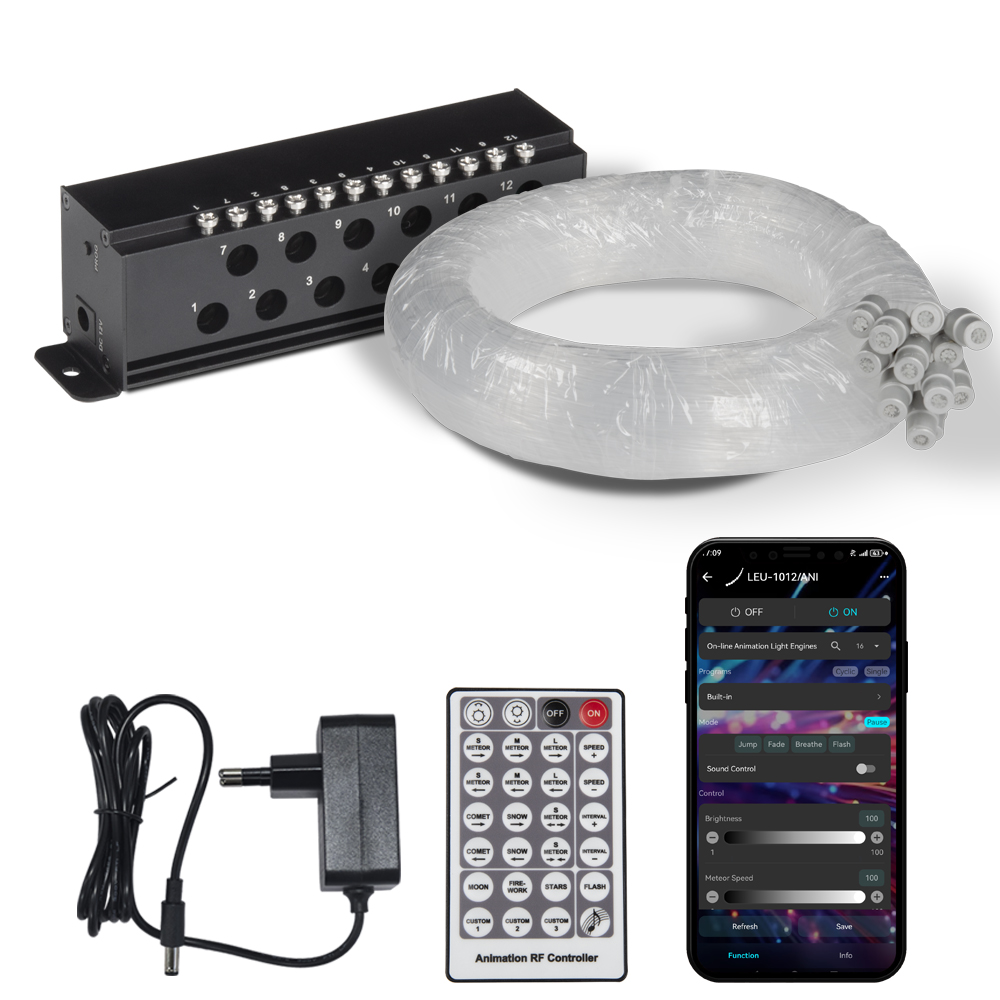

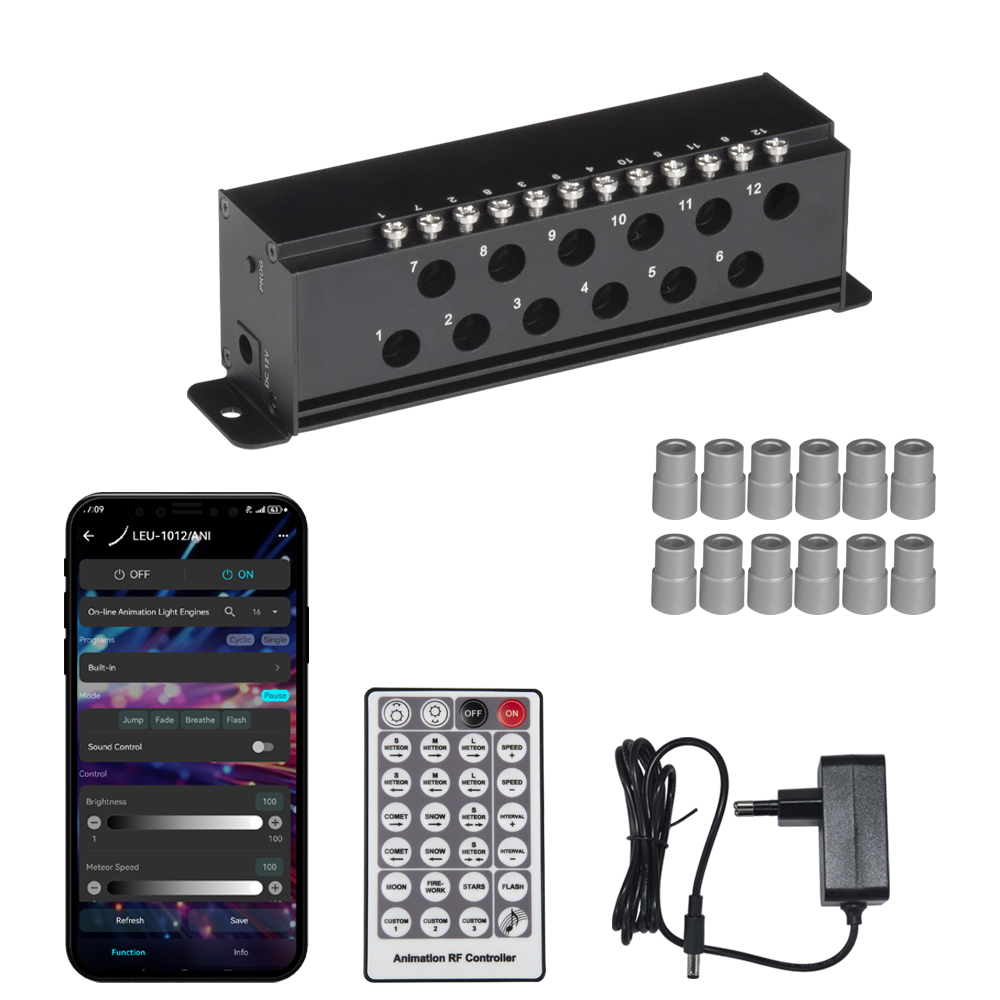

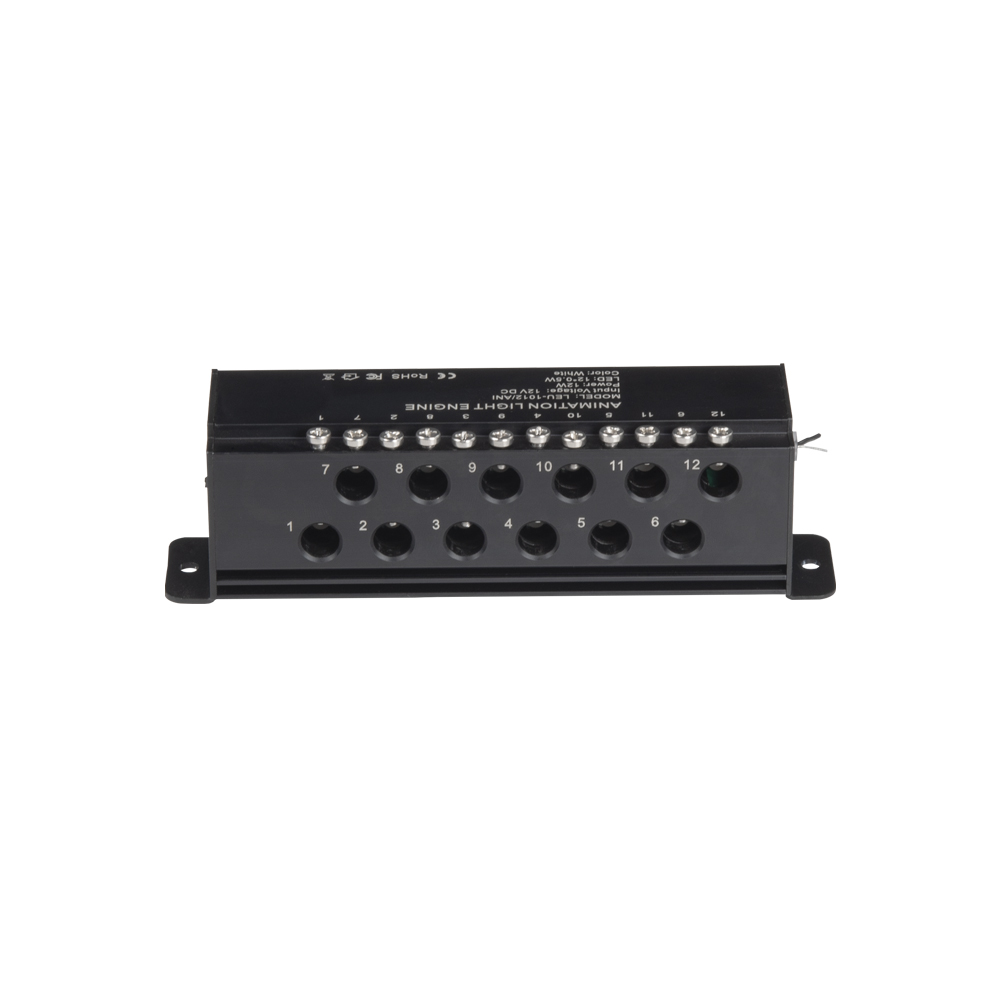

LEU-1012ANI

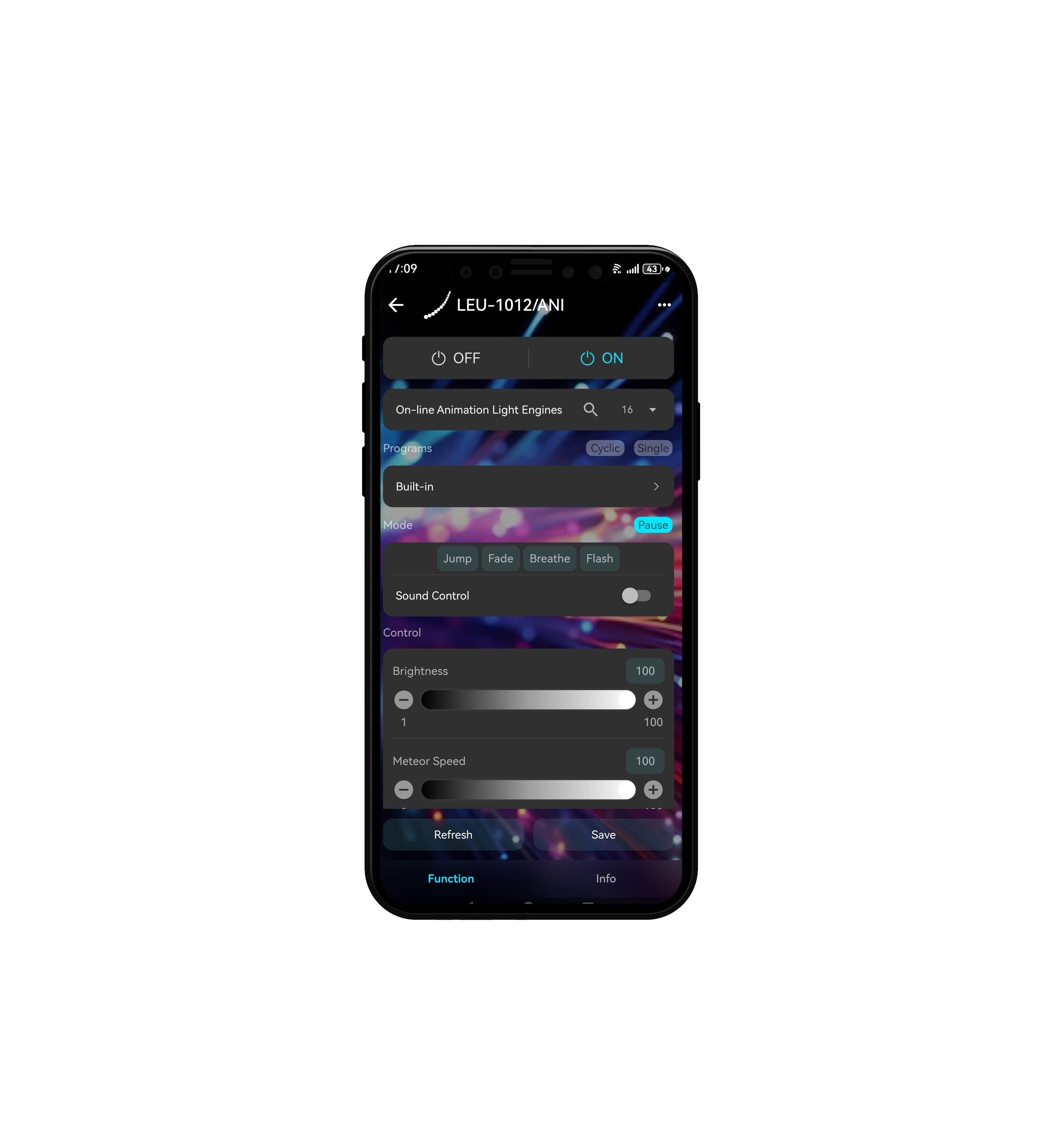

This light engine can be controlled by a mobile APP, LEDSmartLight, which can be downloaded from the Apple App Store or Google Play. The APP can also be downloaded by scanning the left QR code.

This mobile APP is developed by Minar Illumination and is different from the existing ones in the market. It features easy operation.

The APP's main functions:
17 built-in programs（Single program running/Looping between different programs）
Customized programs
Audio control
Dimming
Animation speed adjustment
Programs interval adjustment

Remarks: The control interface will not show up until the APP has connected to a light engine via Bluetooth.

The animation light engine has 17 built-in and 3 customized programs. These built-in programs can be activated via remote control or the app.

The customized programs need to be developed in the workshop and stored in the light engine before shipment.

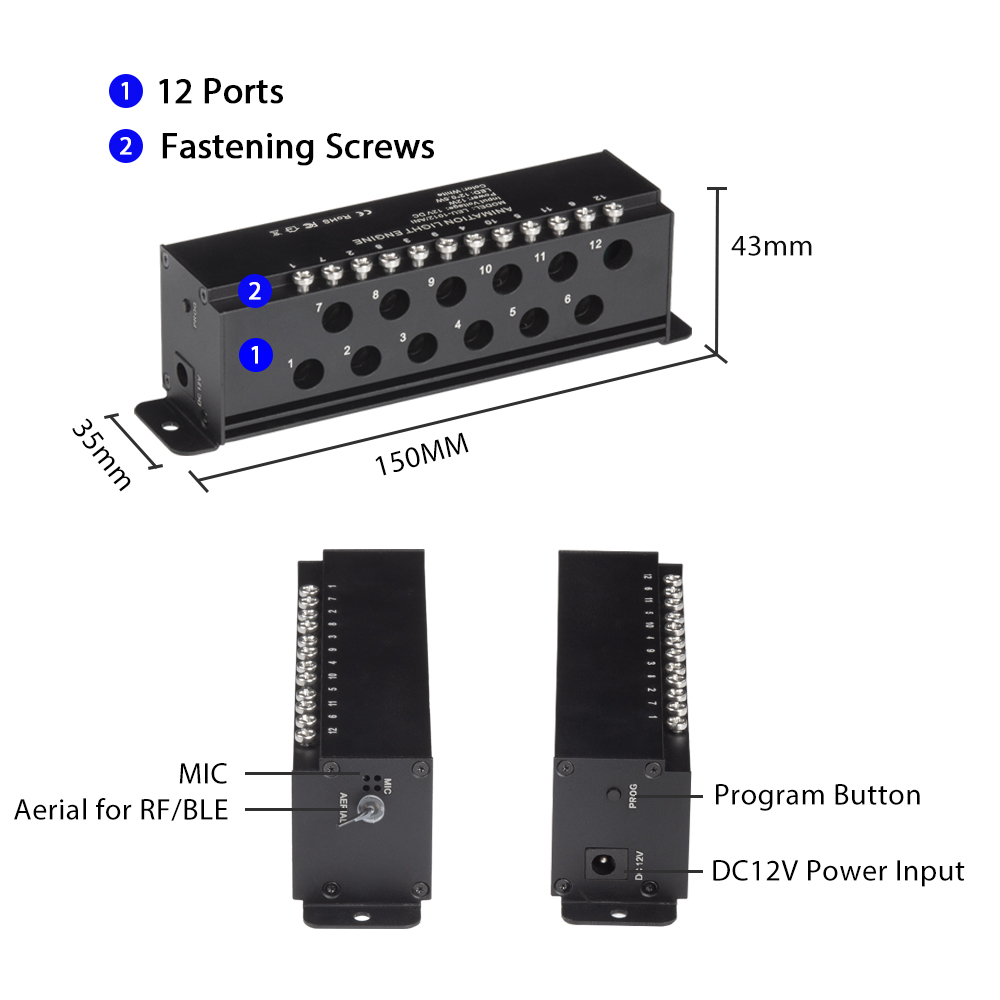

When installing the fiber strands in ceilings or headliners, please note the layout sequence of the 12 ports. The fiber strands must be arranged in sequence from Port 1 to Port 12 without error.

Usually, one animation light engine can make a long shooting star or two short shooting stars, depending on the total number of fiber strands.

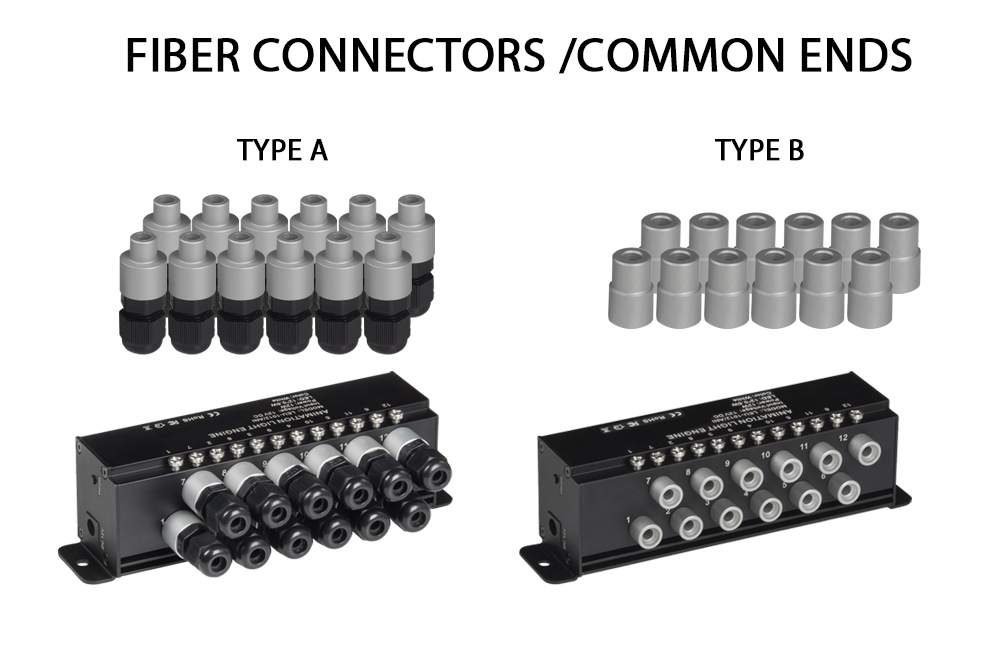

Two different fiber connectors are available for this animation light engine:
Type A: Fiber connectors with PG connectors,
Type B: One-piece fiber connector

When the assembly of the fiber connector is done on site, we will recommend the Type A connector. To save cost, type B fiber connector is also a good choice.

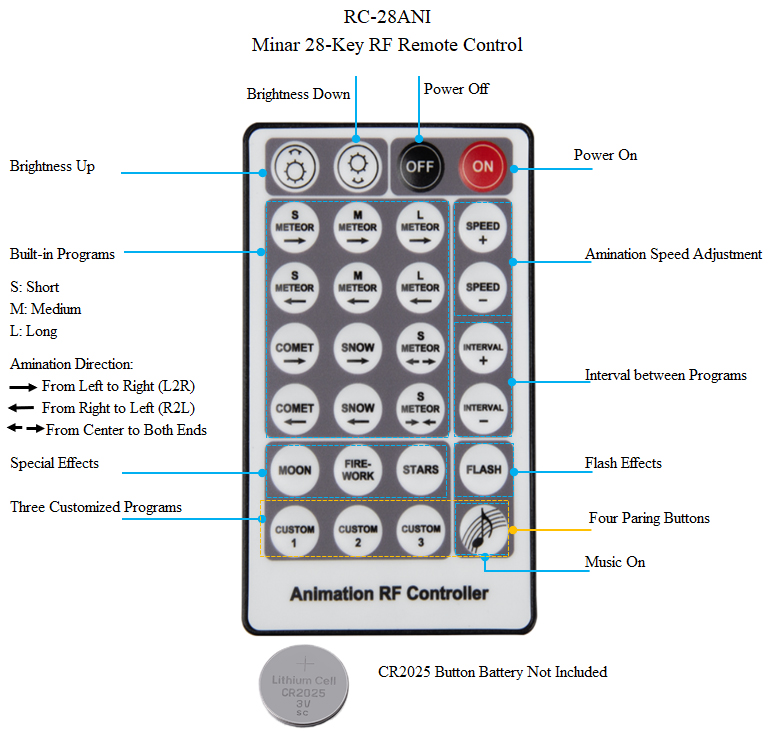

The 28-button remote control has four models: RC-28, RC-28TW, RC-28-2.4G, and RC-28ANI. Those four models are not interchangeable. Please refer to the User Manual of the light engines for details.
RC-28: For LET/LES series and the 12V LED light engines with the APP: LEDSmartLight.
RC-28TW: For the tunable white LED light engines.
RC-28-2.4G: For LLE-002, LLE-004 and LLE-005 with the APP: LED LAMP.
RC-28ANI: For animation light engines.

Please note that pressing the music button will activate the sound control feature. Pressing any other button will cancel the voice control function.

The same fixing screws with two different lengths are alternatively installed on the animation light engine. Please note the sequence when assembling the fiber bundles.
