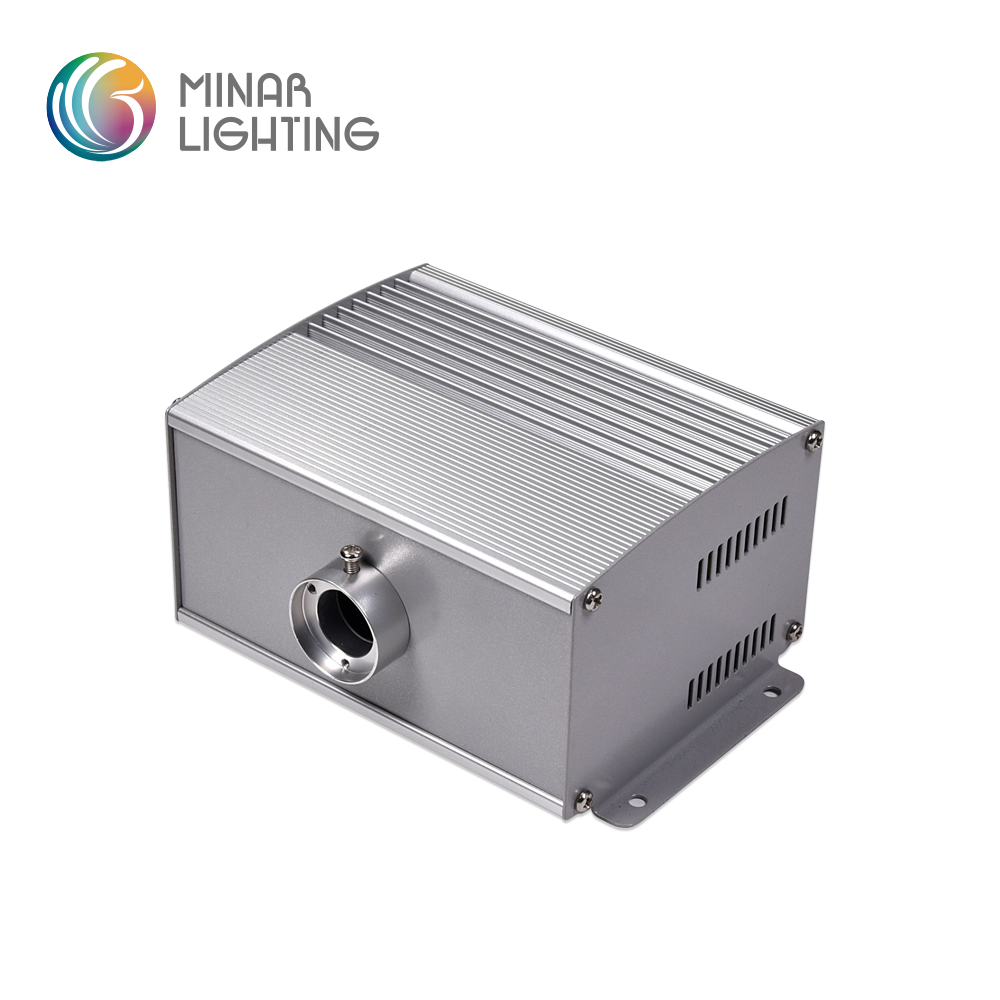

LEE-1001

The LEE series of low voltage fiber optic light engines consists of three models, all with single port and motor. The built-in 6-colour disc or twinkle disc generates vivid color or twinkle effect. This series does not contain any fans.

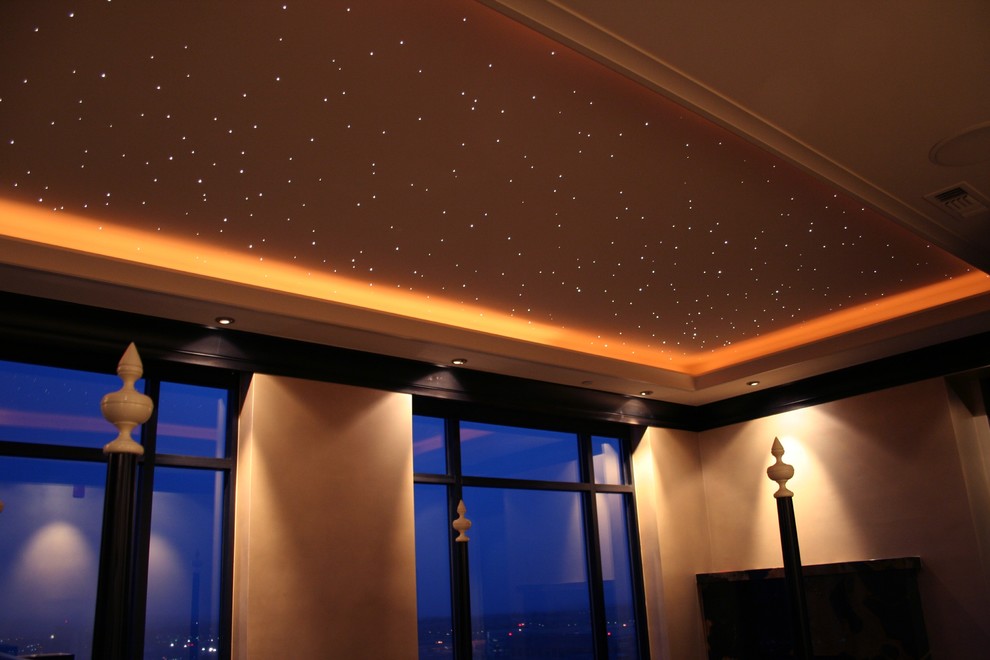

10W LED Light Engine for Star Ceiling

General Information:

1. Model: LEE-1001,

2. Input Voltage: DC 12V,

3. Light Source: White light LED,

4. LED Type: 10W, Cree, 3000K/4000K/6000K,

5. Wheel/Disc: 6-color wheel/Twinkle wheel/Colorful twinkle wheel,

6. Control: Remote control/DIP switches,

7. Light Emitting: Static color/Cycling colors,

8. Adjustable wheel spin speed,

9. Dimmable,
10. No fans, noise free,

11. IP Rating: IP20,

12. Warranty: 2 Years,

13. Packing: Neutral color box.

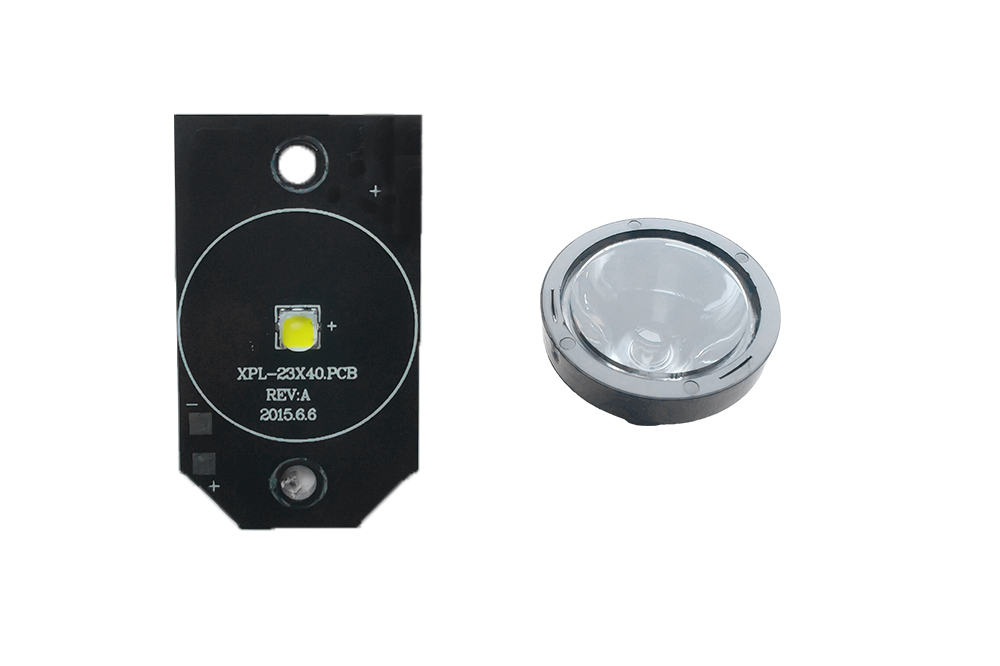

- 10W LED Module

  LEE-1001 fiber optic light engine is the upgrade version of LEA-501, using 10W CREE XPL LED module. Together with the lens, the LED module could drive the the end glow fiber cable of 10 meters long.

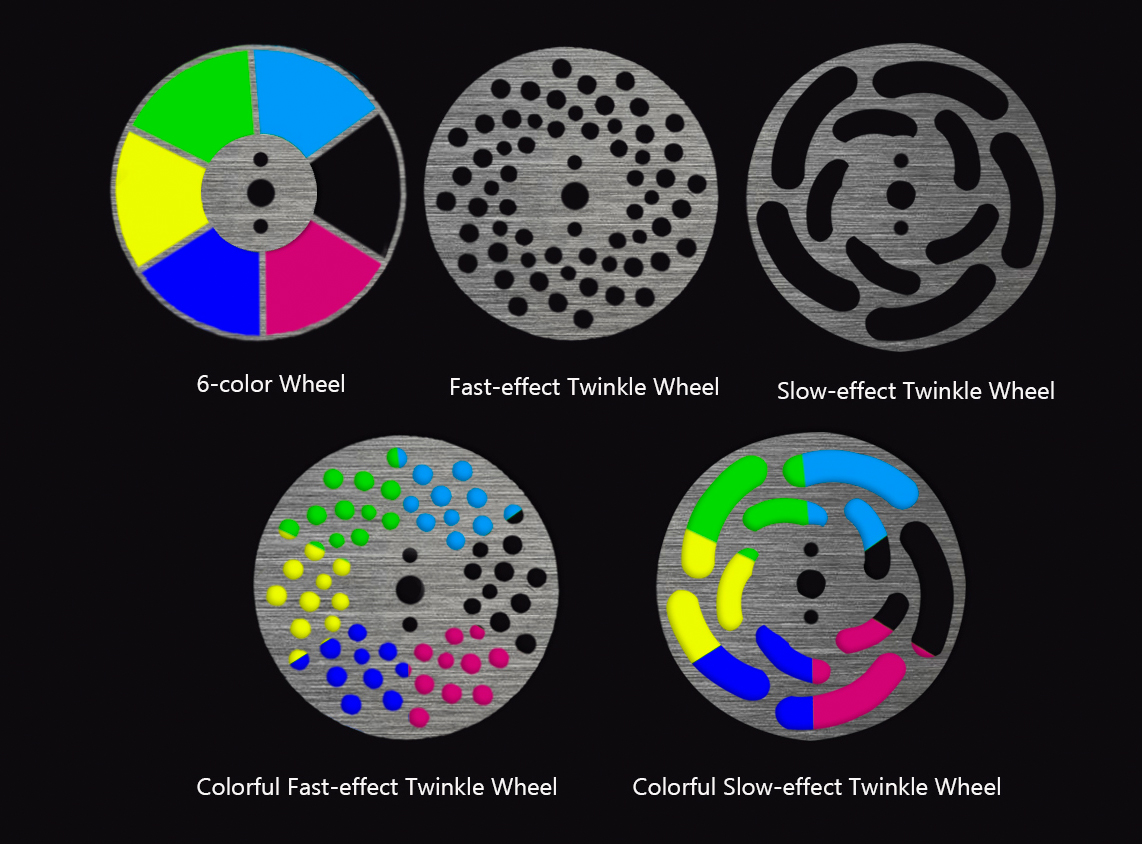

- Wheels/Discs

  By default, a 6-color wheel has been assembled in the light engine.

  The wheels/discs that could be equipped into LEE-1001 fiber optic light engine, from left to right and top to bottom:
  1. 6-color wheel,
  2. Fast-effect twinkle wheel,
  3. Slow-effect twinkle wheel,
  4. Fast-effect colorful twinkle wheel,
  5. Slow-effect colorful twinkle wheel.

  Other wheels/discs are available at request, and customized requirement is also welcome.

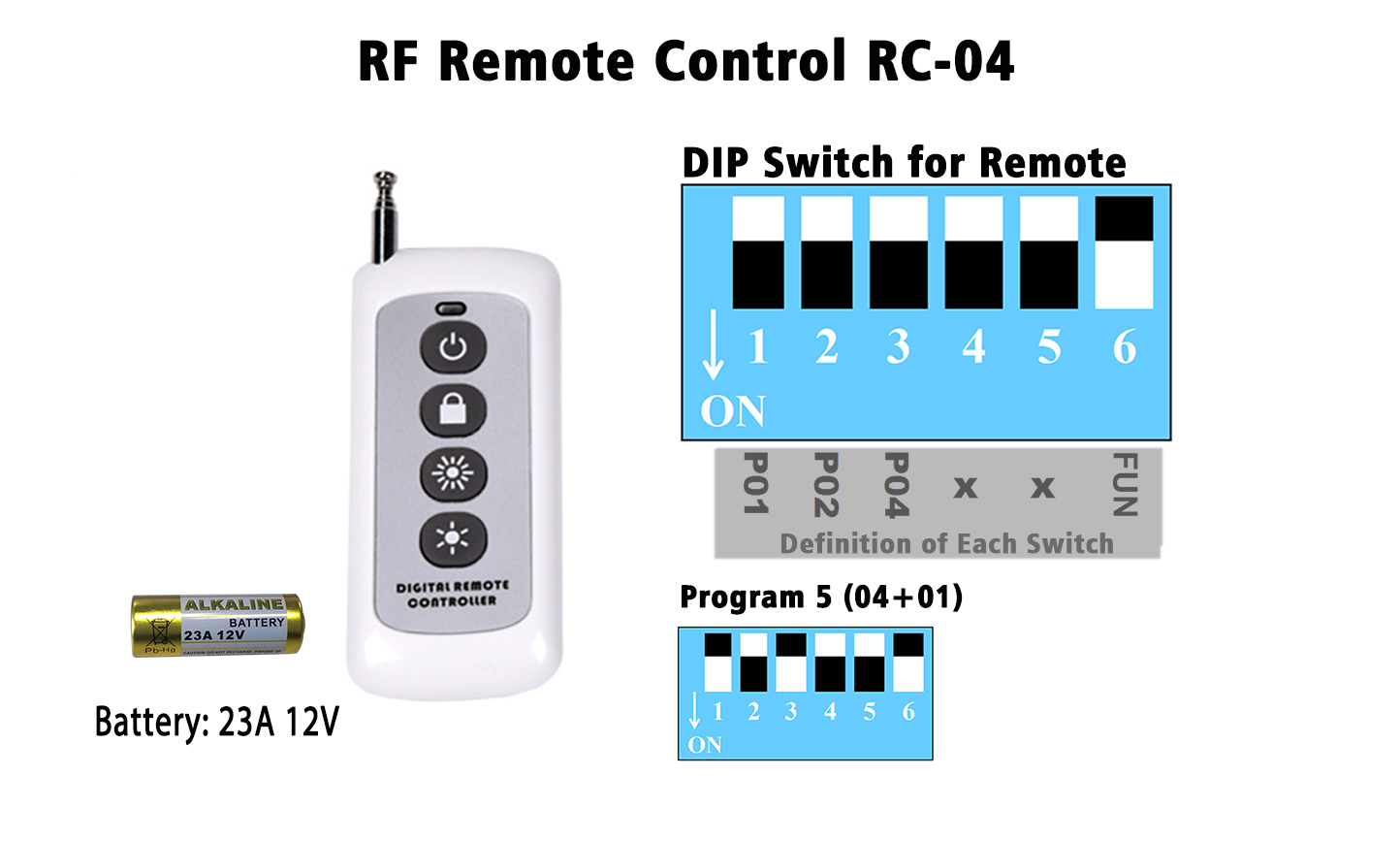

- Remote Control & DIP Switches

  LEE-1001 has 8 built-in programmes, which can be selected by the DIP switches.

  The 4-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 4-key remote control (SW6 ON):
  1. Turn on the light engine,
  2. Turn off the light engine,
  3. Fix the emitting color,
  4. Dimming.

  Battery: 23A 12V, 1pc (not included in the package).

SPECIFICATIONS

Specification:

Item Number

Standard

Aperture

Optional

Aperture

Maximum Fiber Capacity

(0.75mm fiber tails)

Housing

Material

Housing

Color

Dimensions

(mm)

Optional

Remote Control

LEE-1001

14mm

18mm

450pcs

Aluminum

Silver

L165XW125XH80

RC-04

Electrical Parameters:

Working Voltage	Power Consumption	Input Voltage	Adapter Power
12V	10W	100V-240V ac	12V/2A

LED Parameters:

LED Power	LED Color	Color Temperature	Colour Temperature Options	Luminous Flux	Life Span
10W	White	6000K	3000K/4000K	1000lm @ 6000K	50000h

Control:

1	DIP Switches
2	Remote Control (optional)

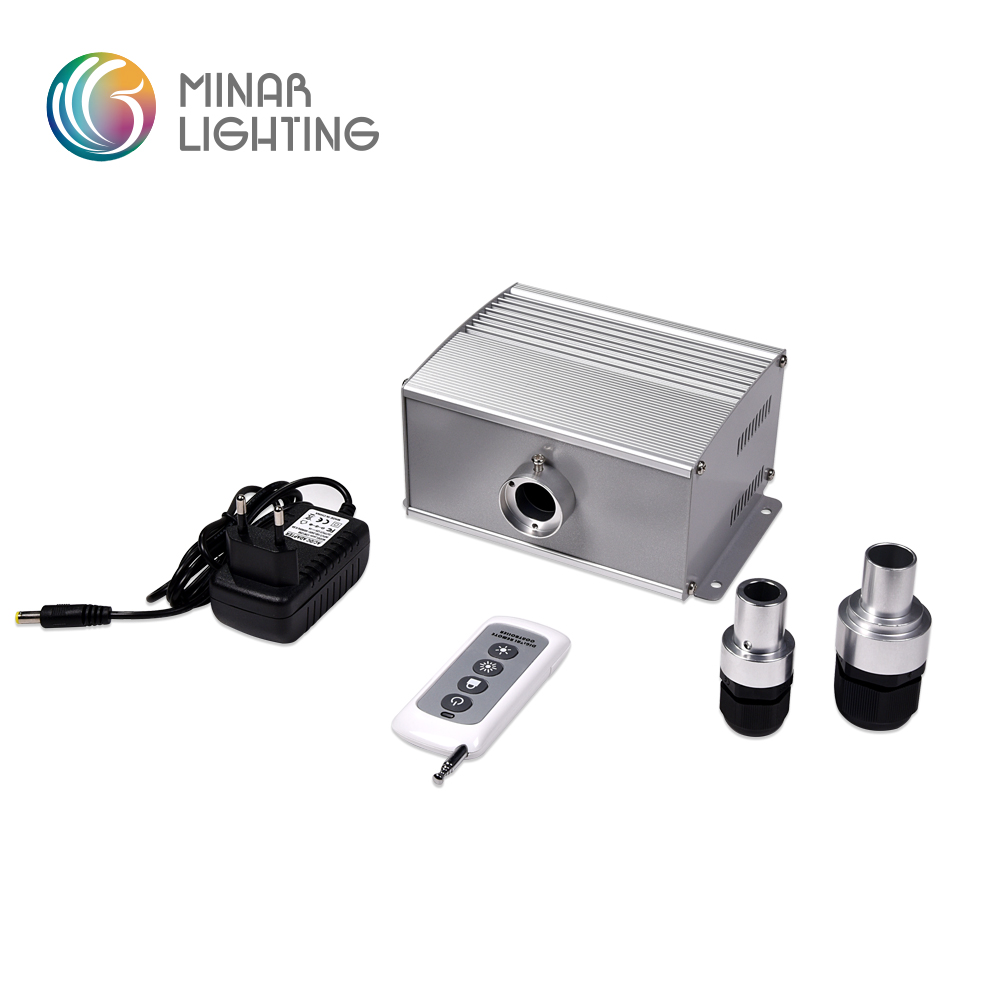

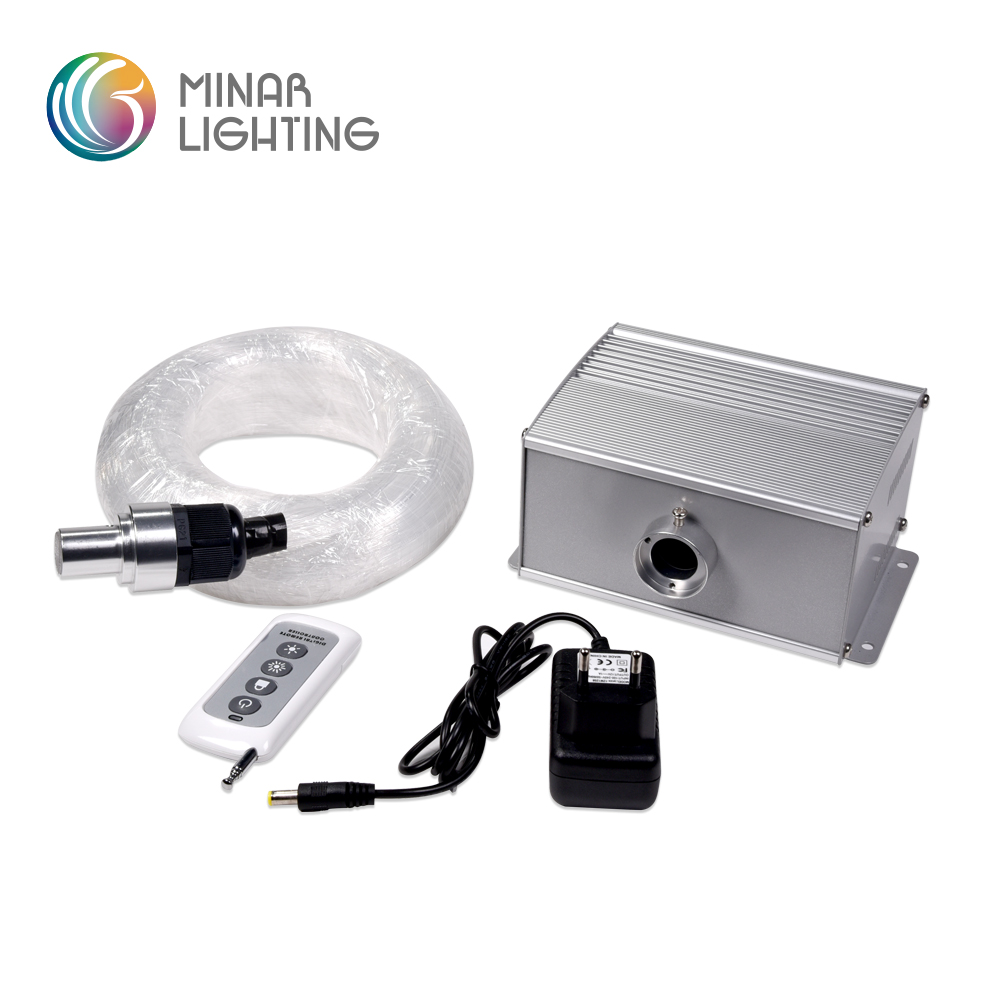

Spare Parts in the Package:

	Item	Quantity
	a 6-color Wheel (built-in)	1
	14mm Fiber Connector	1
	AC-DC Adapter

Optional Parts:

No.	Item
1	4-Key RF Remote Control
2	Fast-Effect Twinkle Wheel
3	Slow-Effect Twinkle Wheel
4	Colorful Fast-Effect Twinkle Wheel
5	Colorful Slow-Effect Twinkle Wheel
6	18mm Fiber Connector
