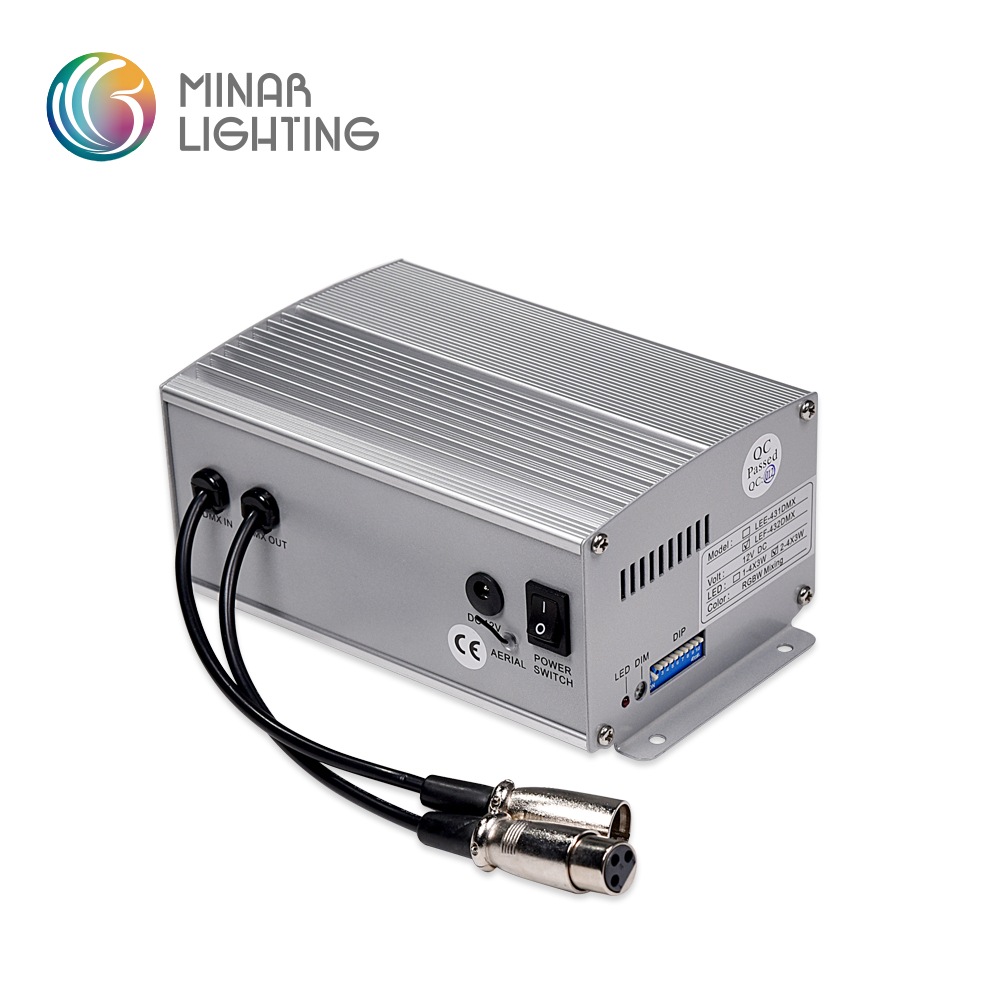

LEF-432DMX

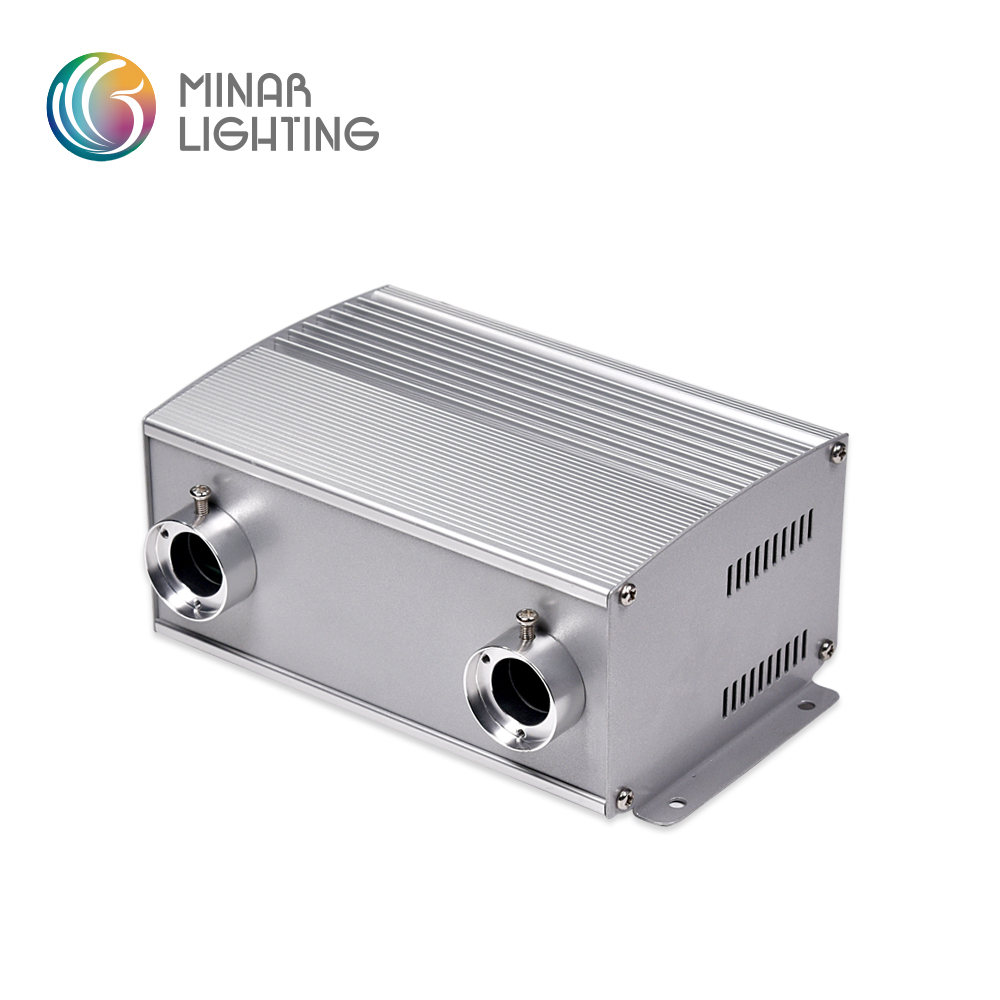

Like other dual-port light engines, such as LEB-432, LEB-432DMX, and LEF-502DMX, the dual ports of LEF-432DMX always display the same color and brightness in operation. Each port has a slow-effect twinkle wheel (with a blank segment) inside.

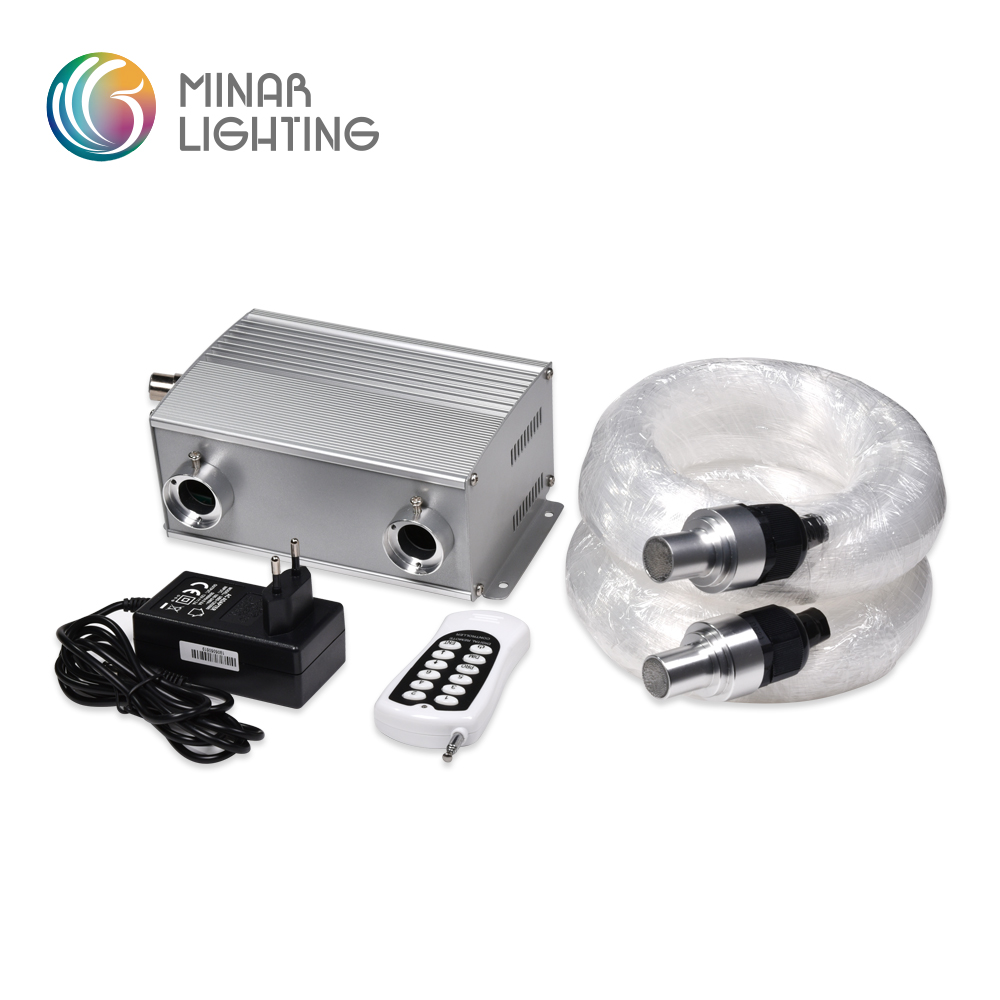

A single port could have an aperture of either 14mm or 18mm. By 18mm, a port can accommodate 450pcs of 0.75mm or 250pcs of 1.0mm fiber tails. In total one unit of LEF-432DMX could hold up to 900pcs of 0.75mm fiber tails.

1. The two ports operate simultaneously and perform synchronously. Dual ports can accommodate 900 pieces of 0.75mm fiber tails.

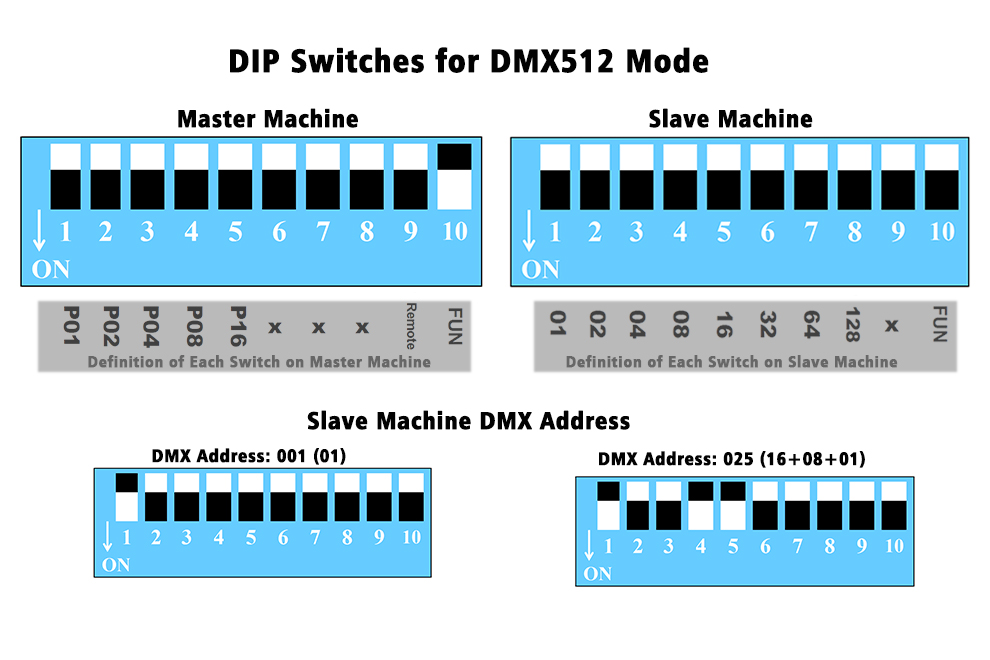

2. Multiple light engines can work in a group, operating synchronous or progressive effect in Master-slave mode.

DMX Channels:
1. CH1: RED,
2. CH2: Green,
3. CH3: Blue,
4. CH4: White,
5. CH5: Speed of color changing,
6. CH6: Dimmer + Strobe,
7. CH7: Speed of twinkle wheel.

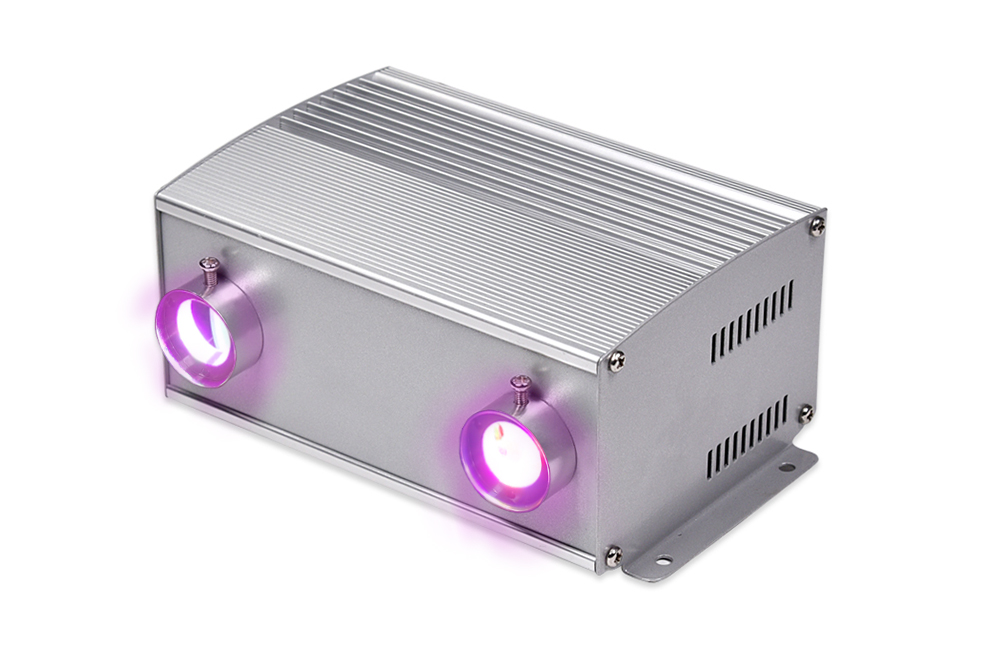

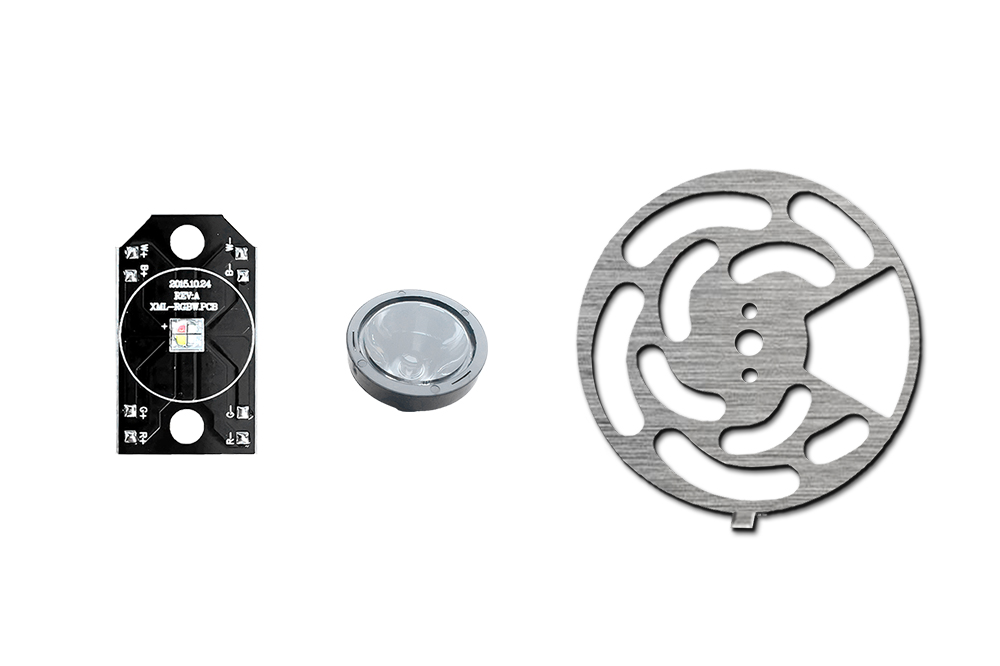

The choice of CREE XML LED modules, together with the lens, delivers a super brightness to the small fiber optic machine.

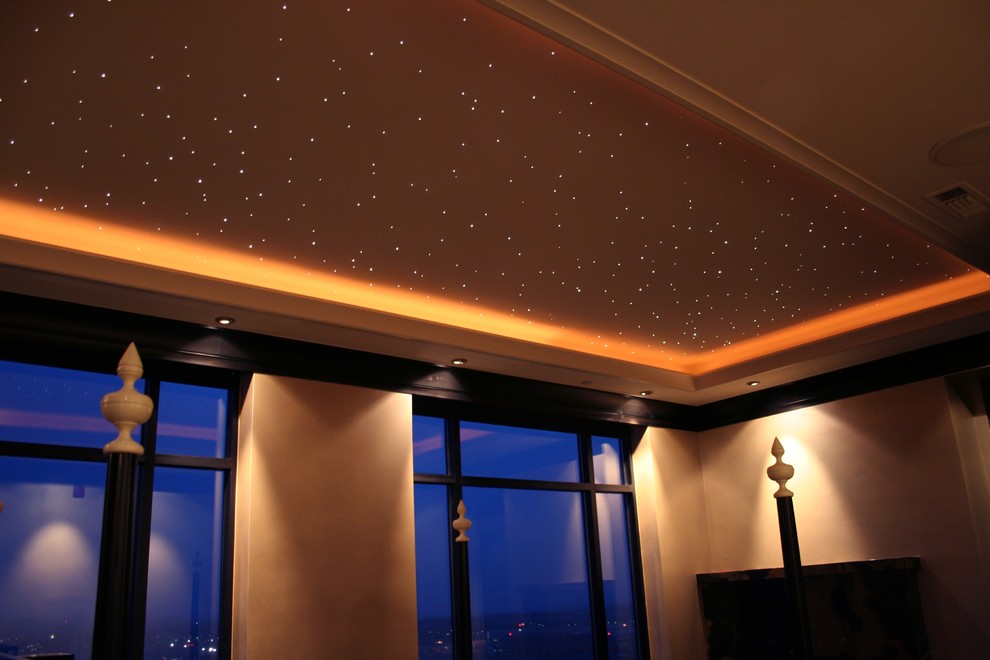

The combination of a four-color LED module and the twinkle disk brings the starry ceiling a fantastic stimulating effect.

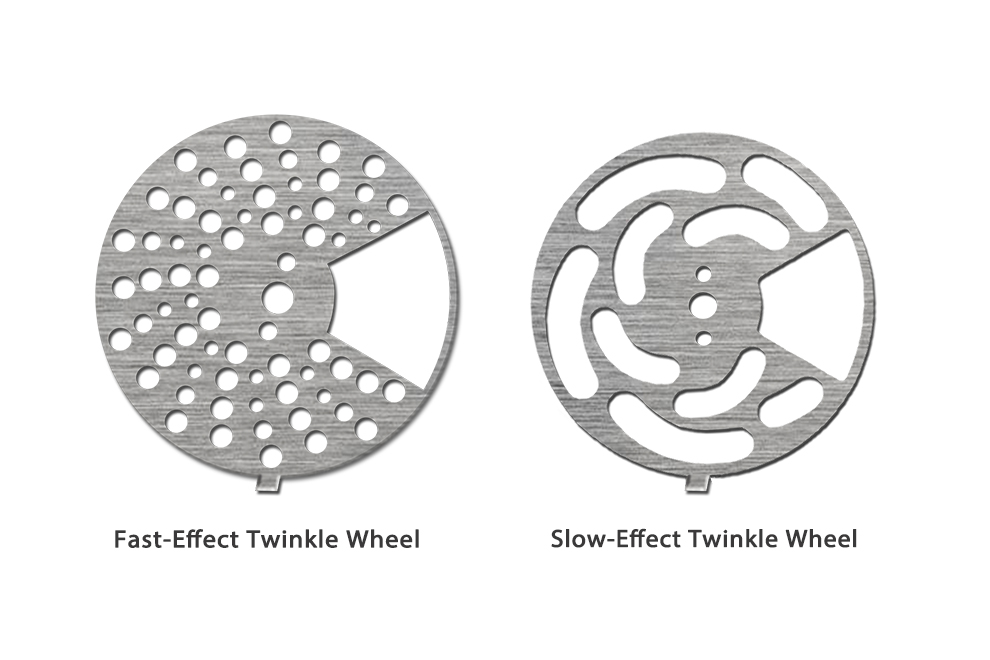

The wheels/discs that could be equipped into LEF-432DMX fiber optic light engine, from left to right:
1. The fast-effect twinkle wheel,
2. The slow-effect twinkle wheel.

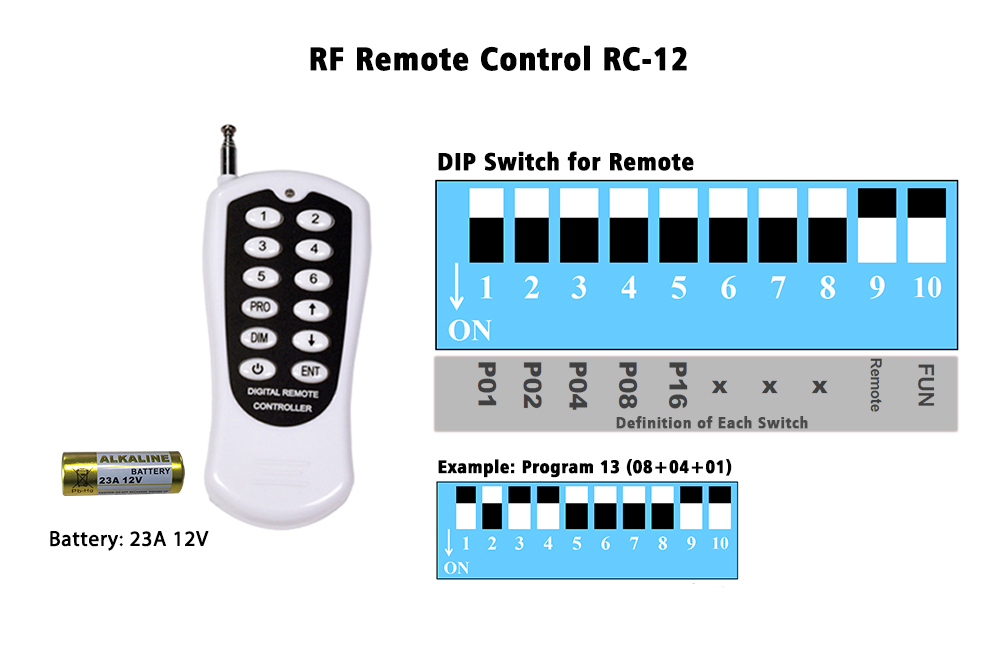

LEF-432DMX has 29 built-in programmes, which can be selected by the DIP switches and the remote control (SW9 & SW10 ON).

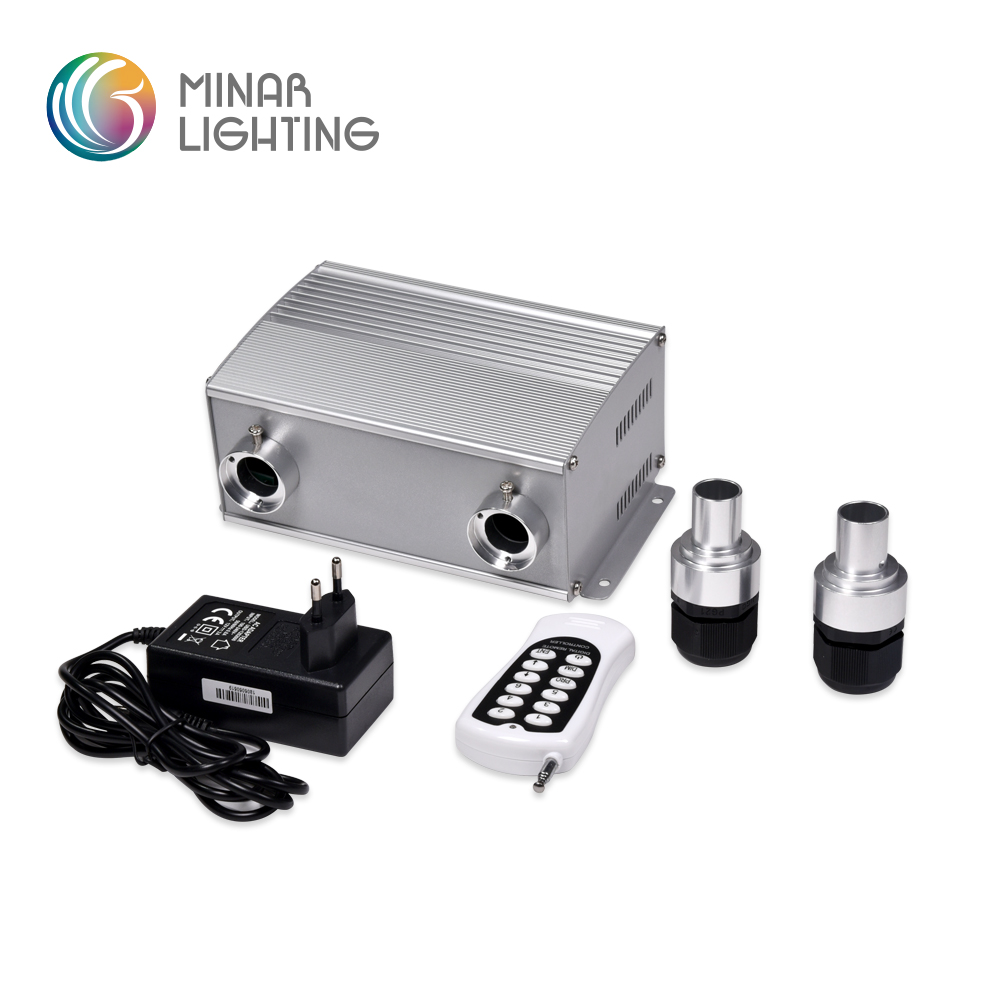

The 12-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 12-key remote control (optional):
1、Switching the machine on and off.
2、Selecting the built-in programs.
3、Dimming.

Battery: 23A 12V, 1pc (not included in the package).

Low voltage fiber optic light engines are generally packaged in neutral color boxes. One unit of the fiber optic machine is packed in a color box. 8 to 10 color boxes are packed in an export carton.
