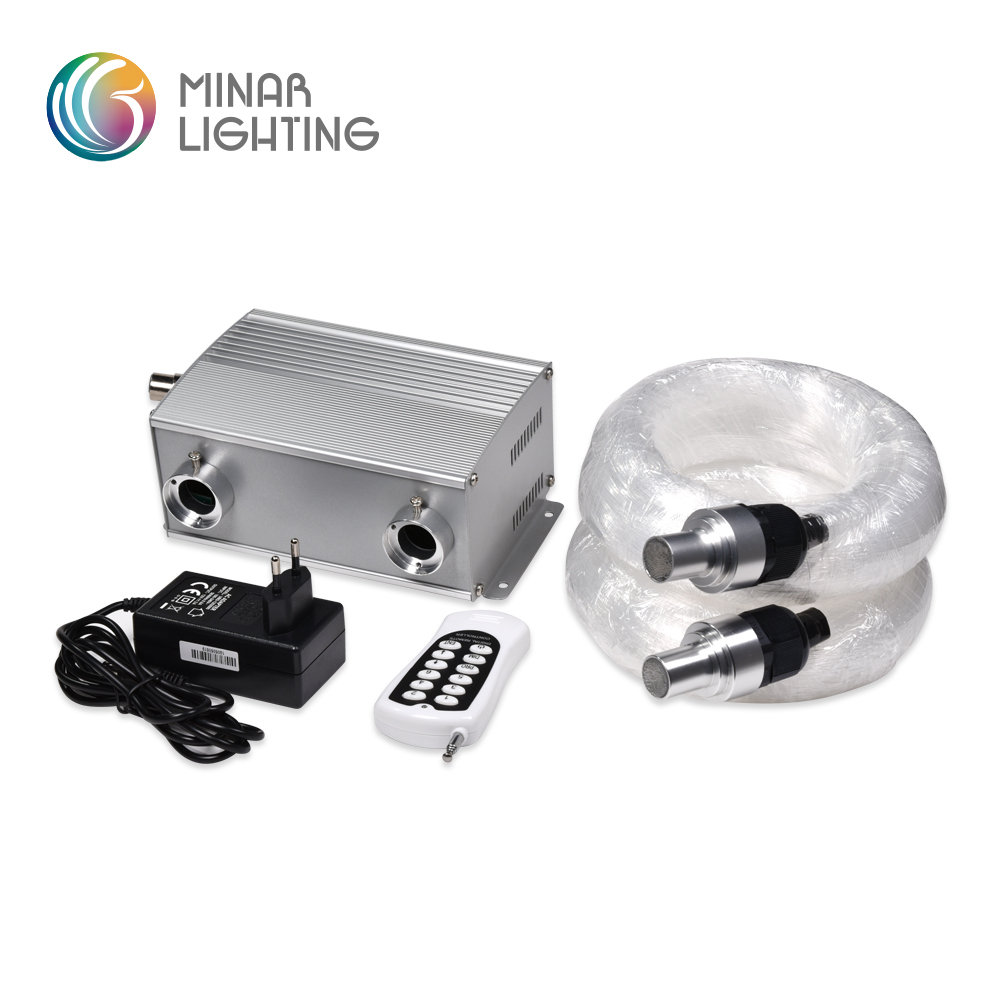

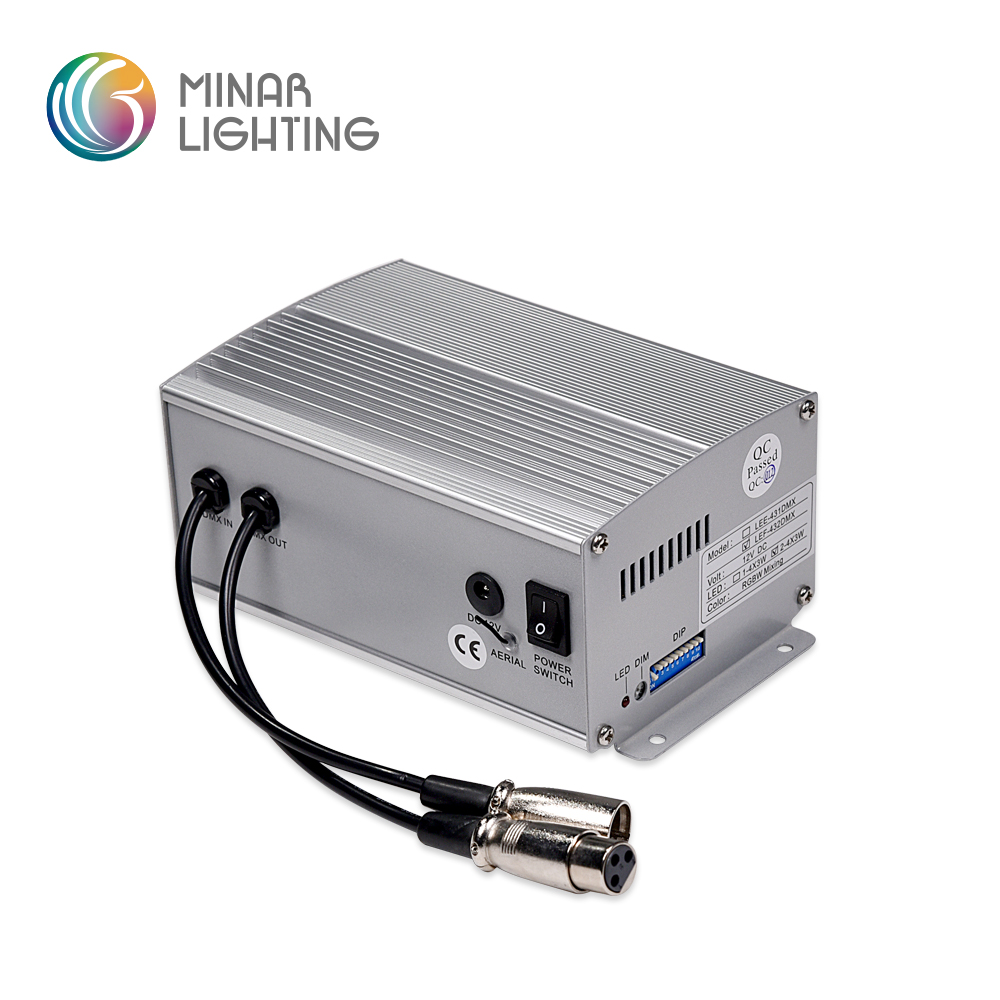

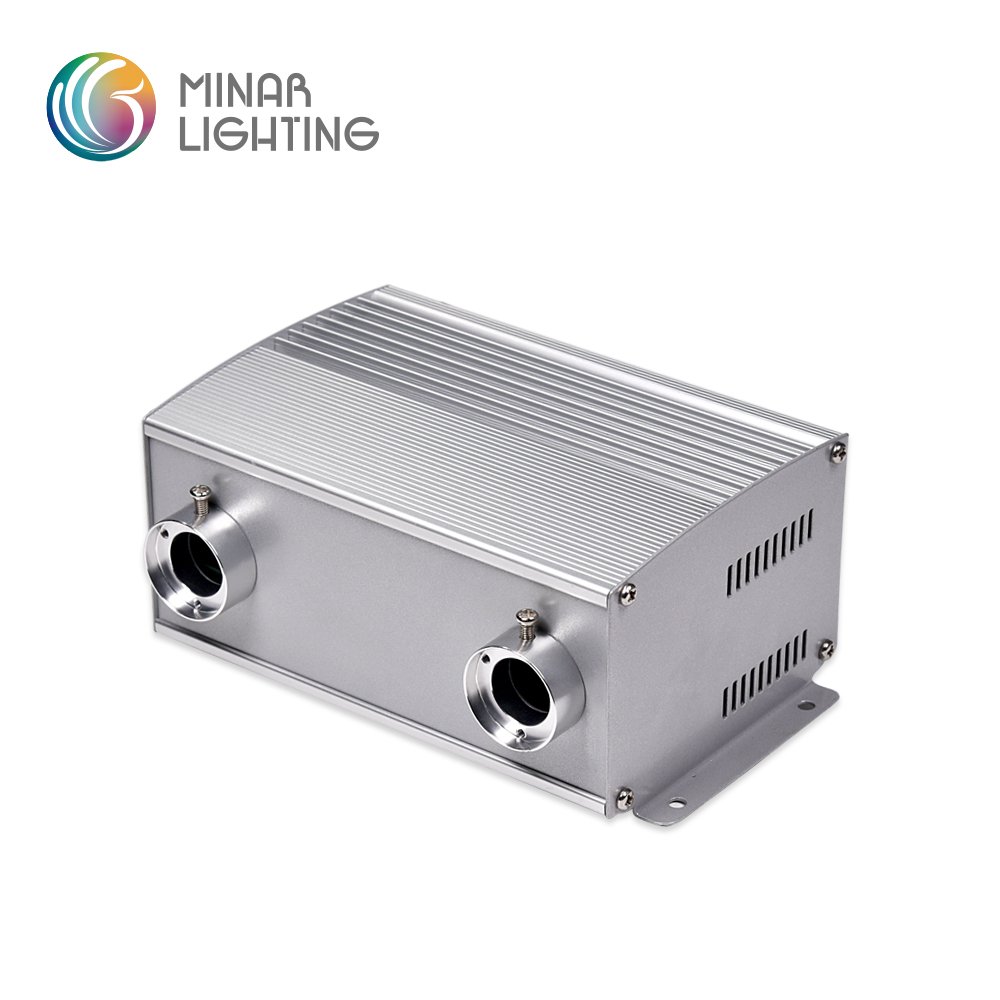

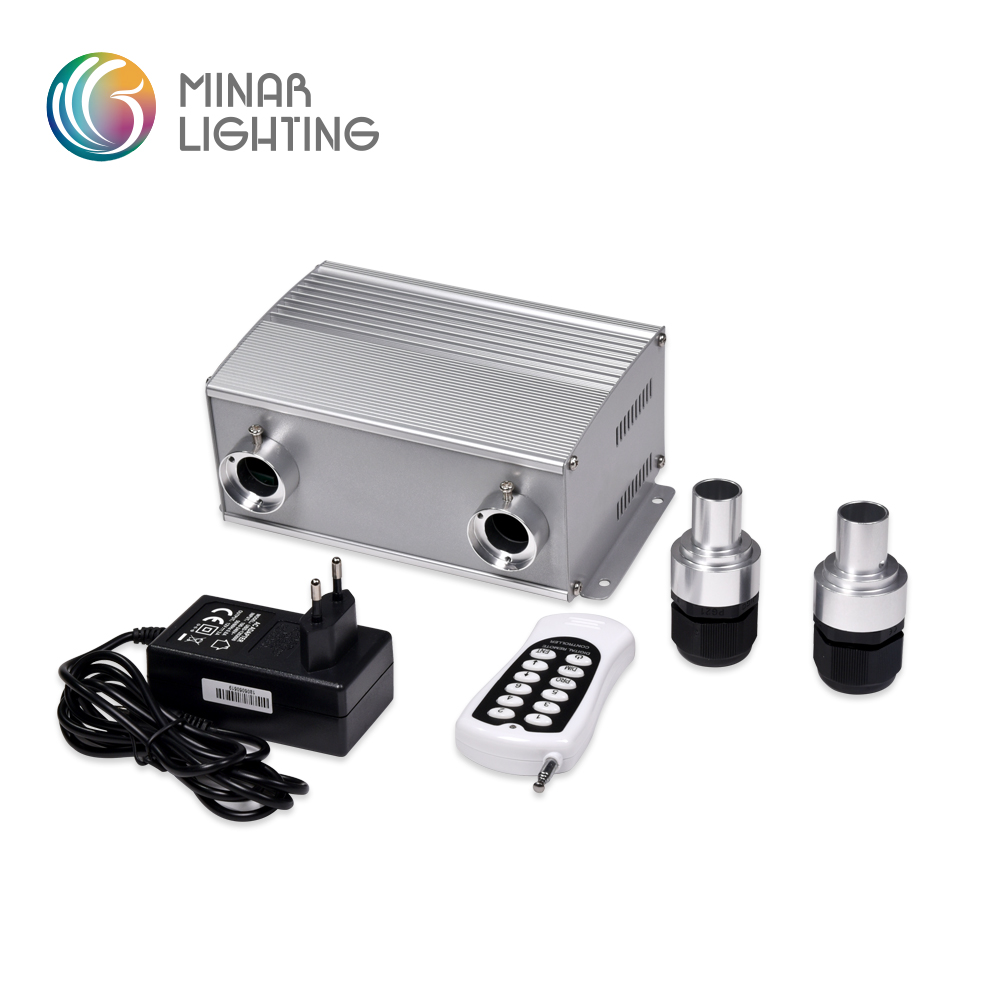

LEP-1002DMX

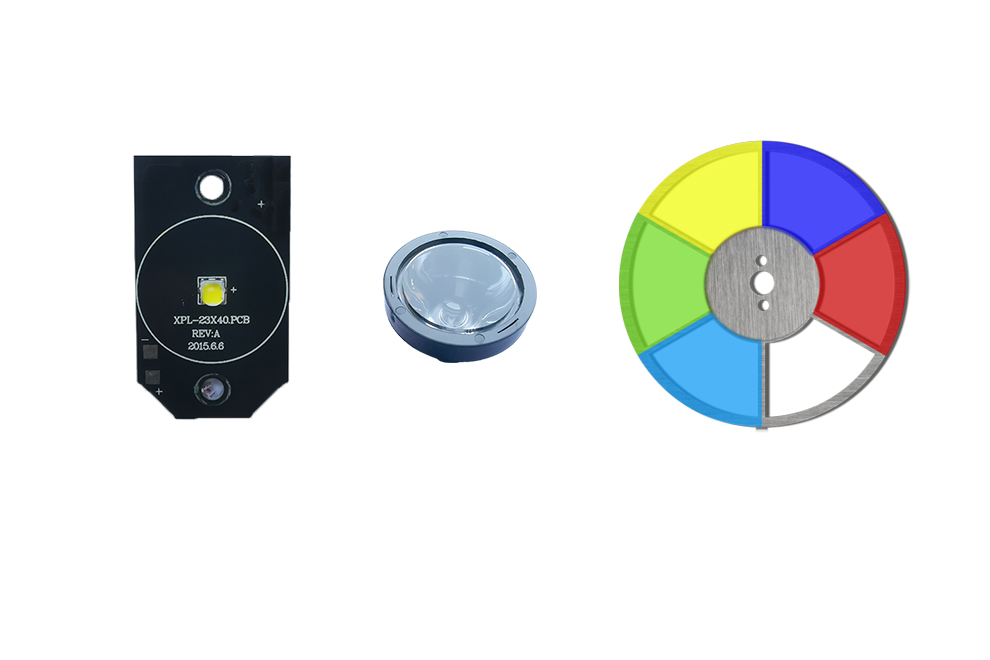

1. Each port applies 10W Cree white LED with lens to provide superior performance.
2. Multiple light engines can work in a group, operating synchronous or progressive effect in Master-slave mode.

DMX Channels:
1. CH1: Color,
2. CH2: Speed of color wheel,
3. CH3: N/A,
4. CH4: Dimmer + Strobe.

By default, two 6-color wheels have been assembled in the light engine.

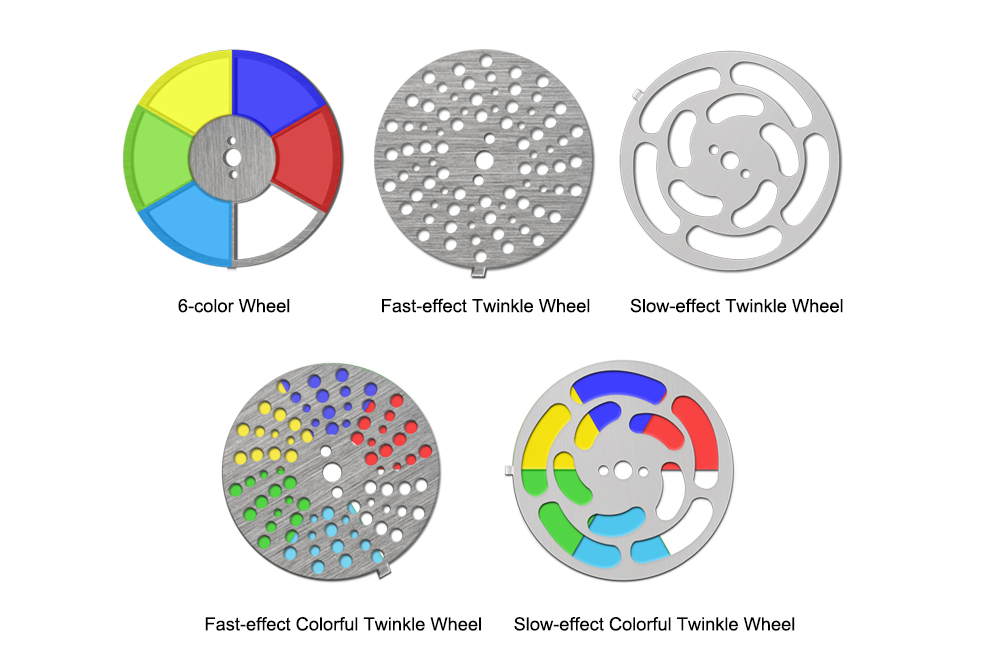

The wheels/discs that could be equipped into LEP-1002DMX fiber optic light engine, from left to right and top to bottom:
1. 6-color wheel,
2. Fast-effect twinkle wheel,
3. Slow-effect twinkle wheel,
4. Fast-effect colorful twinkle wheel,
5. Slow-effect colorful twinkle wheel.

Other wheels/discs are available at request, and customized requirement is also welcome.

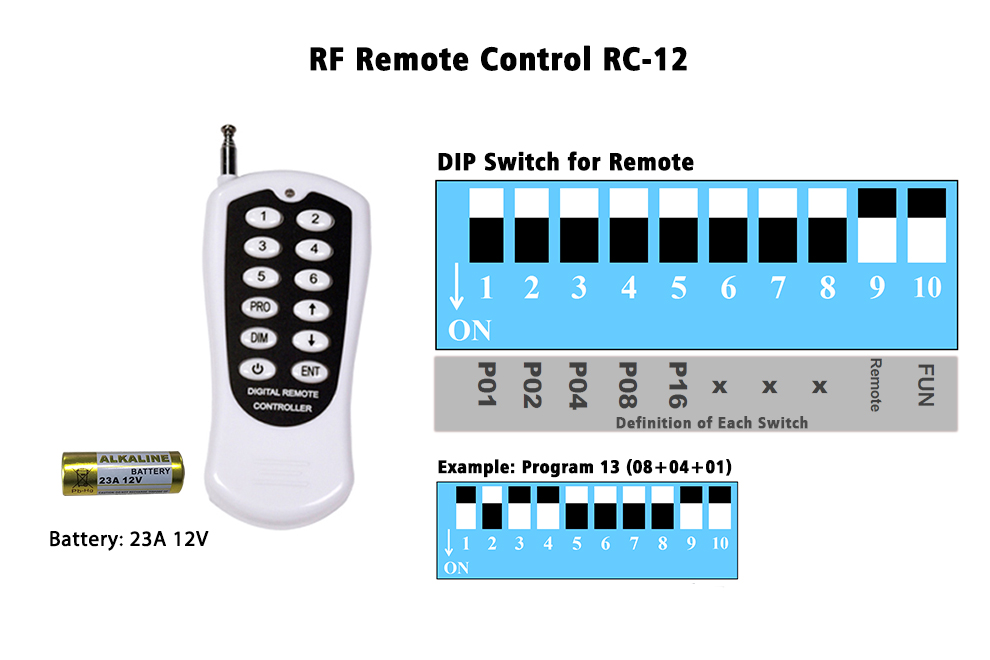

LEP-1002DMX has 17 built-in programmes, which can be selected by the DIP switches and the remote control (SW9 & SW10 ON).

The 12-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 12-key remote control (optional):
1. Switching the machine on and off.
2. Selecting the built-in programs.
3. Dimming.

Battery: 23A 12V, 1pc (not included in the package).
