| Category | Ordering Code | Diameter (mm) | Spool Length (m) | Attenuation (dB/M) | Bend Radius (mm) |
Minar Plastic Optical Fiber | MHF-50 | 0.5 | 6000 | ≤0.22 | 10 |
| MHF-75 | 0.75 | 2700 | ≤0.22 | 15 | |
| MHF-100 | 1.0 | 1500 | ≤0.22 | 25 | |
| MHF-150 | 1.5 | 700 | ≤0.22 | 40 |
Single optical fiber
The single core PMMA optical fiber strands have no covering sheath. During installation and use, special care should be taken to the strands not to touch any solid objects or to bear pressure to prevent scratching or crushing.
Temperature

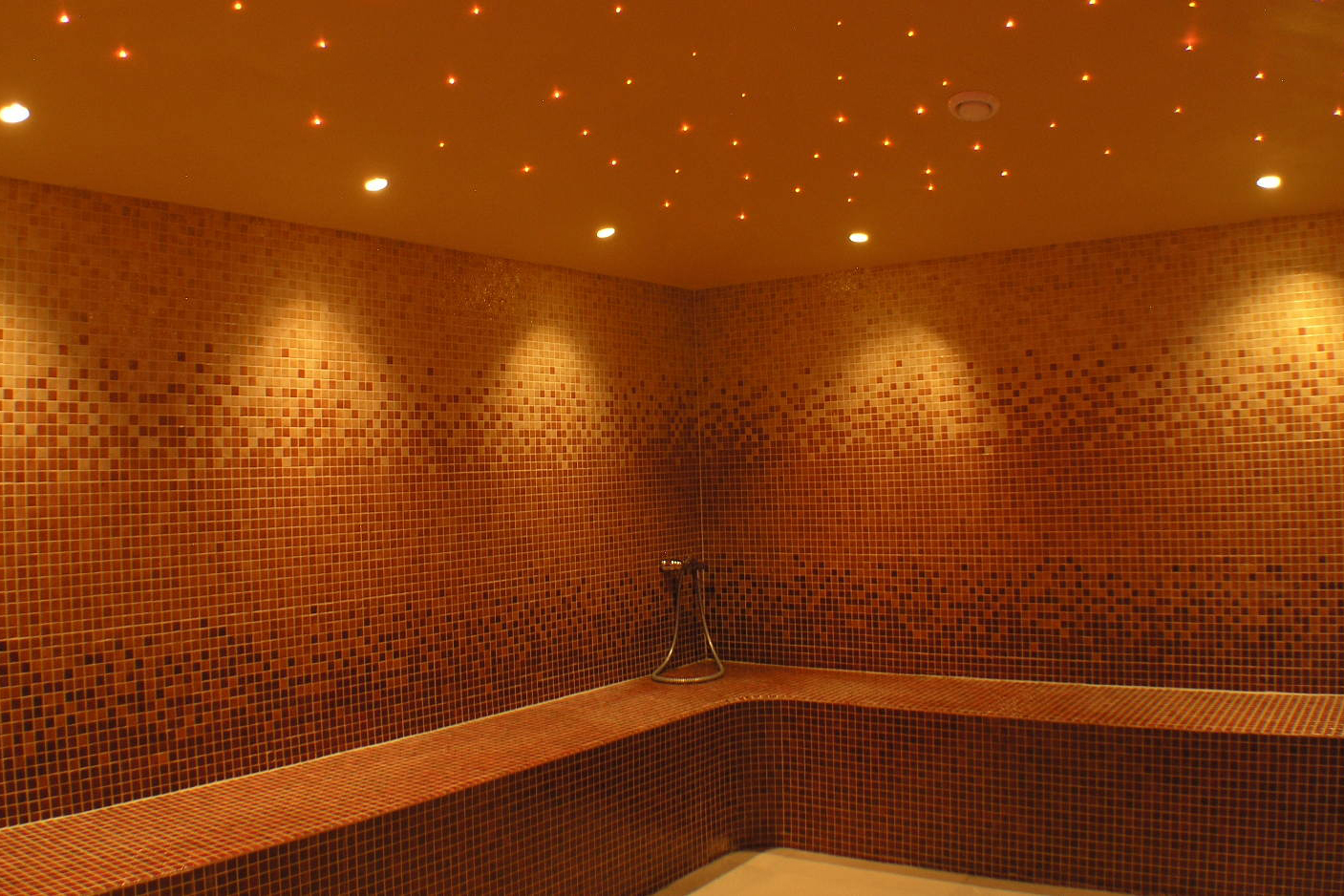

The ambient temperature of the POF is - 55 ℃ -+70 ℃. When the ambient temperature is high, such as that in the sauna room, it is recommended to use the fiber strands with PVC sheath and ceiling end fittings.

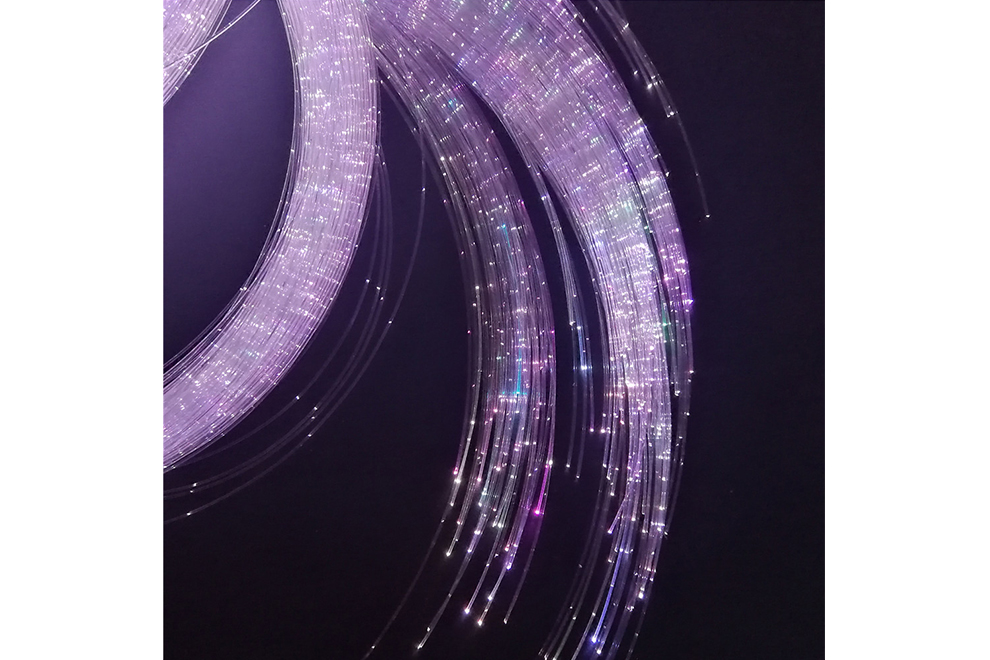

Sparkle Fiber Cable
MHF series are not recommended to make sparkle fiber cable as they are more brittle than CK and MF series.
| Category | Ordering Code | Diameter (mm) | Spool Length (m) | Attenuation (dB/M) | Bend Radius (mm) |
Minar Plastic Optical Fiber | MHF-50 | 0.5 | 6000 | ≤0.22 | 10 |
| MHF-75 | 0.75 | 2700 | ≤0.22 | 15 | |
| MHF-100 | 1.0 | 1500 | ≤0.22 | 25 | |
| MHF-150 | 1.5 | 700 | ≤0.22 | 40 |
